Allen & Heath ME-500 Personal Monitor Mixer – 16 Mono/Stereo Channels – 8 Scene Recall Memories 2-band EQ Limiter – PoE

Original price was: $307.00.Current price is: $95.99.

SKU: BWFYA 64069892 Categories: Audio Monitoring, Personal Audio Monitoring

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

ME-500 – Overview

16 Channel Personal Mixer
Allen & Heath’s ME-500 is a powerful walk-up-and-mix solution that’s quick to set up and easy for just about anyone to learn in moments. The ME-500 personal mixer’s intuitive hands-on controls and crisp visual display make it easy for musicians to quickly build and control their own monitor mixes. With plug `n’ play setup and self-sufficient musicians, ME-500 is also a massive time-saver for the audio engineer.

Fast Setup
With ME-500 there’s no time-consuming configuration of individual units. The first 16 mono / stereo channels and / or mixes assigned from the mixer will be automatically mapped to ME-500’s 16 select keys, so it’s fast and simple to deploy personal mixers in pressured situations such as festivals.

8 User Presets
Levels, pan and mutes can all be stored and recalled at the touch of a button. Presets can be saved to USB and easily transferred to different ME-500s.

Which ME is right for ME?
Although superficially similar, ME-1 and ME-500 are quite different solutions for different types of users and scenarios. For resident artists (such as a broadcast house band or church praise band), shows with high channel counts and plenty of rehearsal time, ME-1 allows the engineer to configure each unit to perfectly reflect each artist’s tastes and needs. For budget-conscious or low channel count applications, or for more impromptu scenarios where the engineer and artists have very limited soundcheck time (festivals being the typical example), ME-500 is a great solution for getting the show up and running with minimum fuss.

Note: Cat5 Link cables are not provided. Cables of suitable length will be needed to meet your application requirements.

Features:
- Designed For The Application
- Compact and smart on stage
- Easy to read display screen
- Backlit keys for viewing in the dark

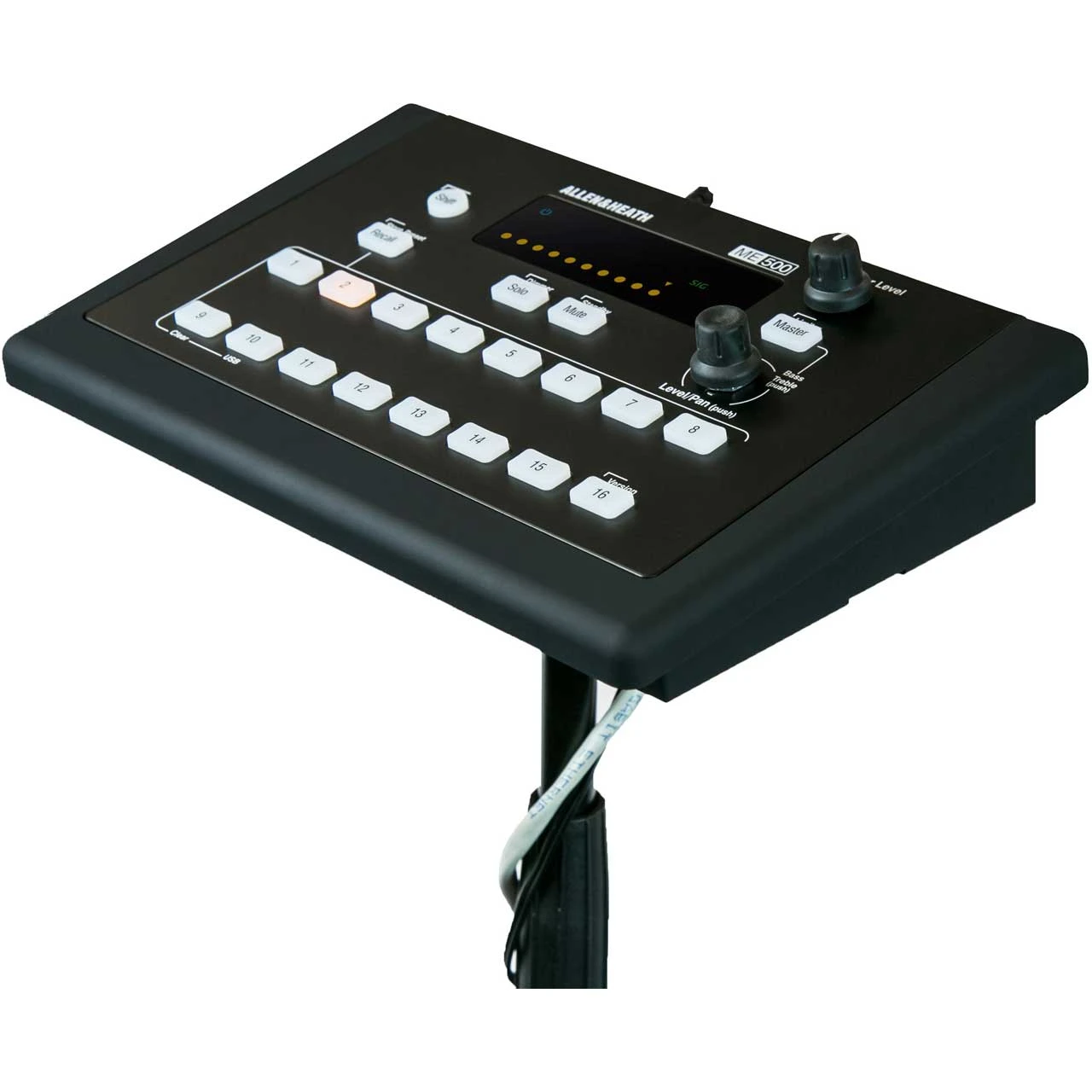

- Surface, plinth or mic stand mounting
- Built-in top of stand mount
- Optional side of stand bracket
- Optional headphones hook
  Easy For The Musician To Operate
- Press a Select key.
- Turn the rotary to adjust Level
- Press and turn to adjust Pan
- Hold shift and turn to trim all levels
- Mute individual channels or master
- Solo individual channels
- Adjust tone using the master EQ
- Use the Limiter to prevent loud peaks
- Store and recall presets of your mix.
- Protect while away using Standby mode
  Configure The System
- Patch outputs at the source console.
- Link outputs for single key stereo select.
- Use the label strip to identify keys.
- Transfer settings via USB key.
- Update firmware via USB key

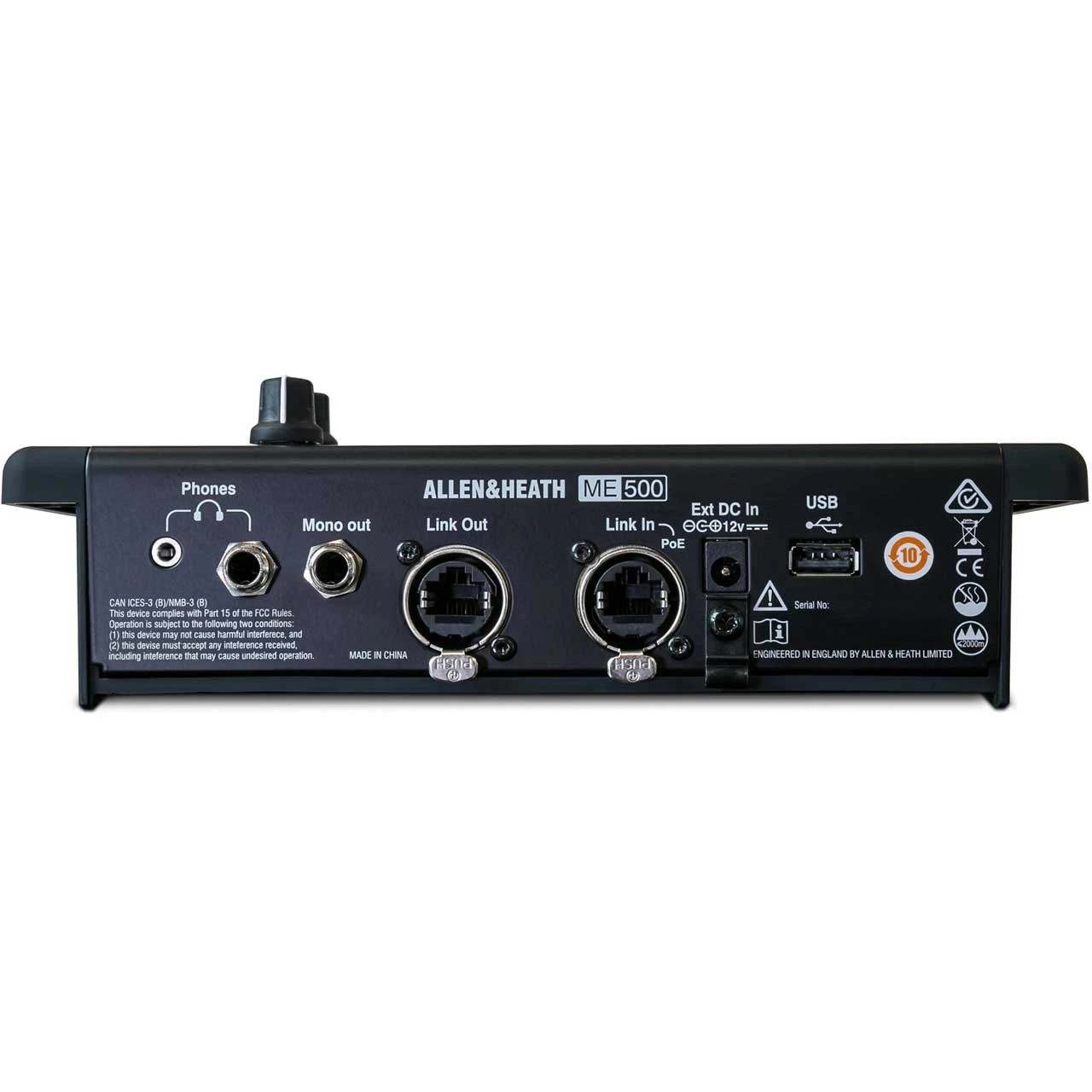

  Convenient Connection
- Connect using Cat5 cable up to 100m
- Locking EtherCON connectors
- Daisy chain any number of ME mixers
- Parallel connect using Ethernet switches
- Direct connection to A&H mixers.
- Direct connection to Aviom® A-Net 16
- Connect to other networks via ME-U hub:
- 48kHz Dante, MADI, EtherSound
- Use the power unit or PoE via Cat5 cable
- Touring grade 10-port ME-U PoE hub
Specifications:
- System
- Frequency Response: 10Hz to 20kHz (+0/-1dB)
- AD/DA Conversion: 24-bit Delta/Sigma, 48kHz
- Residual Output Noise: -95dBu
- PoE Requirements: 802.3af (15.4W at source) or 802.at (25.5W at source)
- Headphone Out: 300mW + 300mW into 100Ω load; Max: +21dBu
- External PSU IN: 100-240V AC , 50/60Hz / OUT: 12V DC , 1.25A
- PoE Requirement 10W (requires 15W from PoE hub)
  Dimensions and Weights – Width x Depth x Height x Weight
- ME-500: 9″ x 6.3″ x 2.7″ (230 x 160 x 70 mm) x 2.4lbs (1.1kg)
- ME-500 (Boxed): 11.4″ x 13.8″ x 6.7″ (290 x 350 x 170 mm) 5.5lbs (2.5kg)
Item Includes:
- ME-500 Personal Mixer
- DC Power Supply for the ME mixer
- Safety Instruction Sheet
- User Guide
GTIN:

6938122246751
