Atlas FAPR-8 Plaster Ring Strategy Series 8 Inch

Original price was: $34.99.Current price is: $24.49.

SKU: BWFYA 10063318 Categories: Mic Stands & Mic Mounts, Speaker Stands & Wall Mounts

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

FAPR-8 – Overview

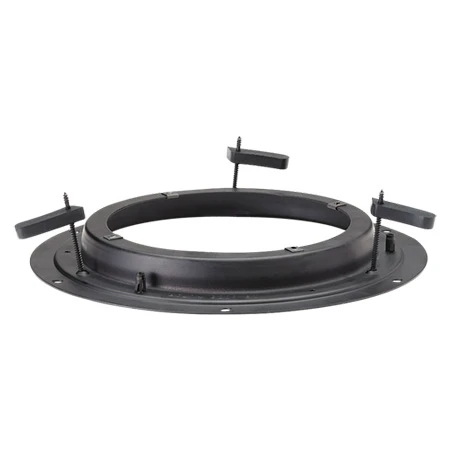

Model FAPR-8 plaster ring is used to mount Strategy Series 8″ loudspeakers into ceilings andwalls for applications where an enclosure cannot be used, or where it is not desired.

Unit is constructed with the same internal mounting flange as FA97-8 and FA95-8 enclosures. It may be used to mount non-transformer equipped loudspeaker models into walls having a min. depth of 3-1/2″ (SD72-replacement for discontinued model FA118) or 4″ (FA138). The FAPR-8 will facilitate installation of transformer-equipped loudspeaker models into walls with a minimum depth of 6-1/2″ (SD72 or FA138 measured from the front of the mounting surface to the rear of the inside mounting area).

Plaster ring is constructed of galvanized steel. It is equipped with four threaded inserts for loudspeaker installation and three stud receptacles for mounting Strategy Series grilles. The mounting mechanism is comprised of three rotating clamps(included). Cutout dimension 9-3/4″.

Features:
- Constructed with the same internal mounting flange as FA97-8 and FA95-8 enclosure
- Includes flip tab dog ears for installation into wall or ceiling
- Threaded inserts for loudspeaker installation
- Tubular spring clips on flanged face accept ribbed weld studs on Strategy I grills
- Used to mount Strategy speakers where enclosure will not fit or is not desired
Specifications:
- Depth 7/8″ (2.2225 cm)
- Diameter 9 3/4″ (24.765 cm)
- Shipping Weight 4.17 lbs (1.89 kgs)
