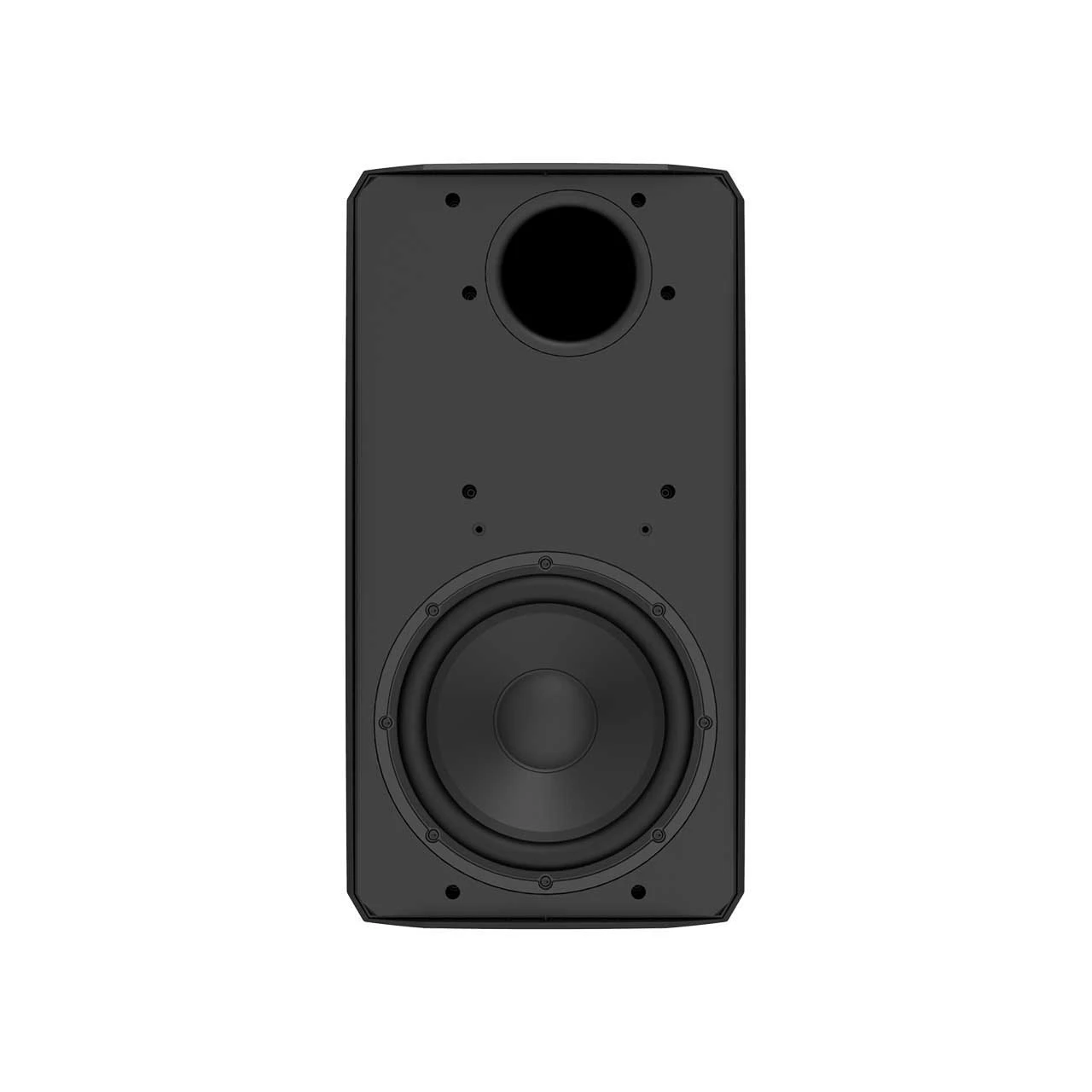

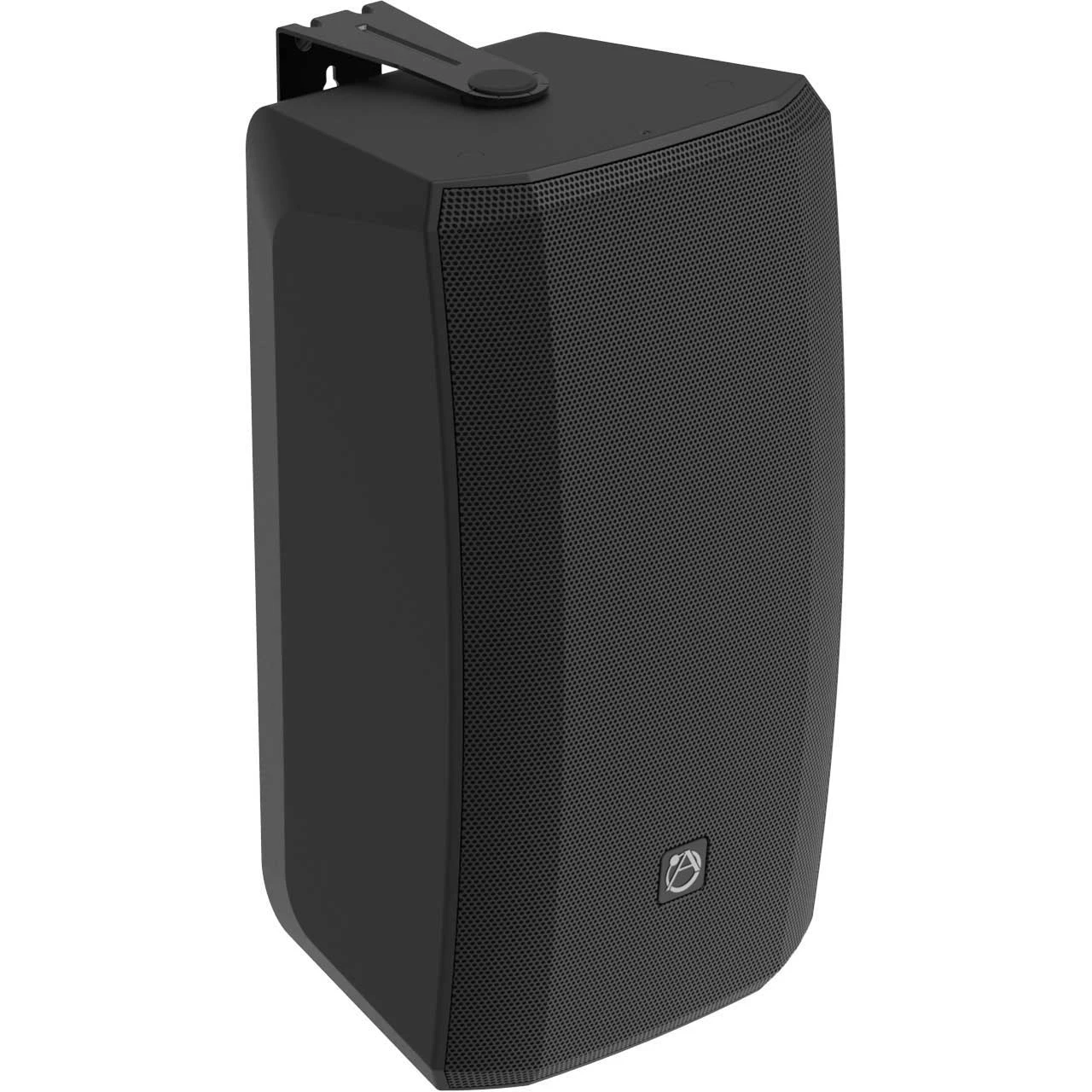

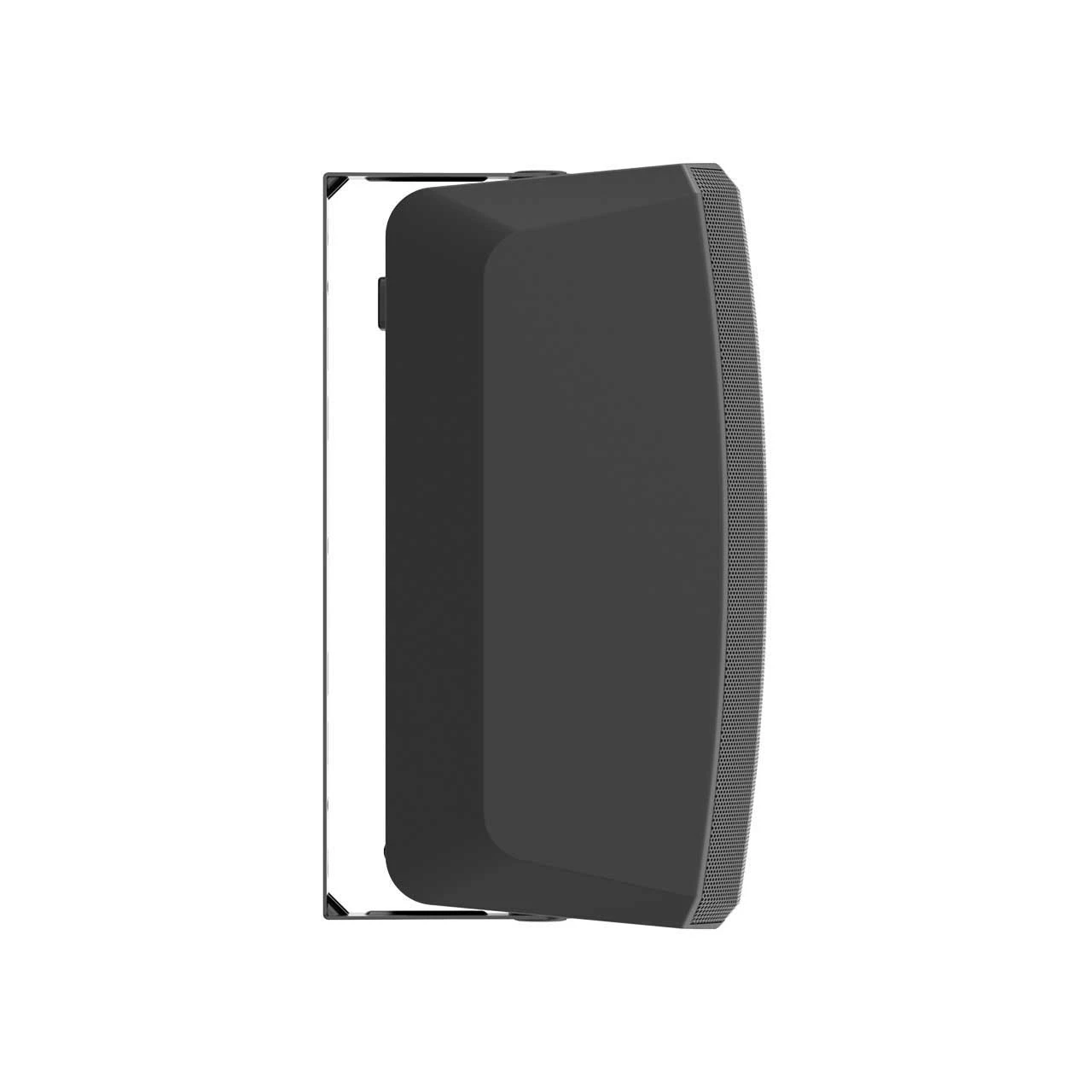

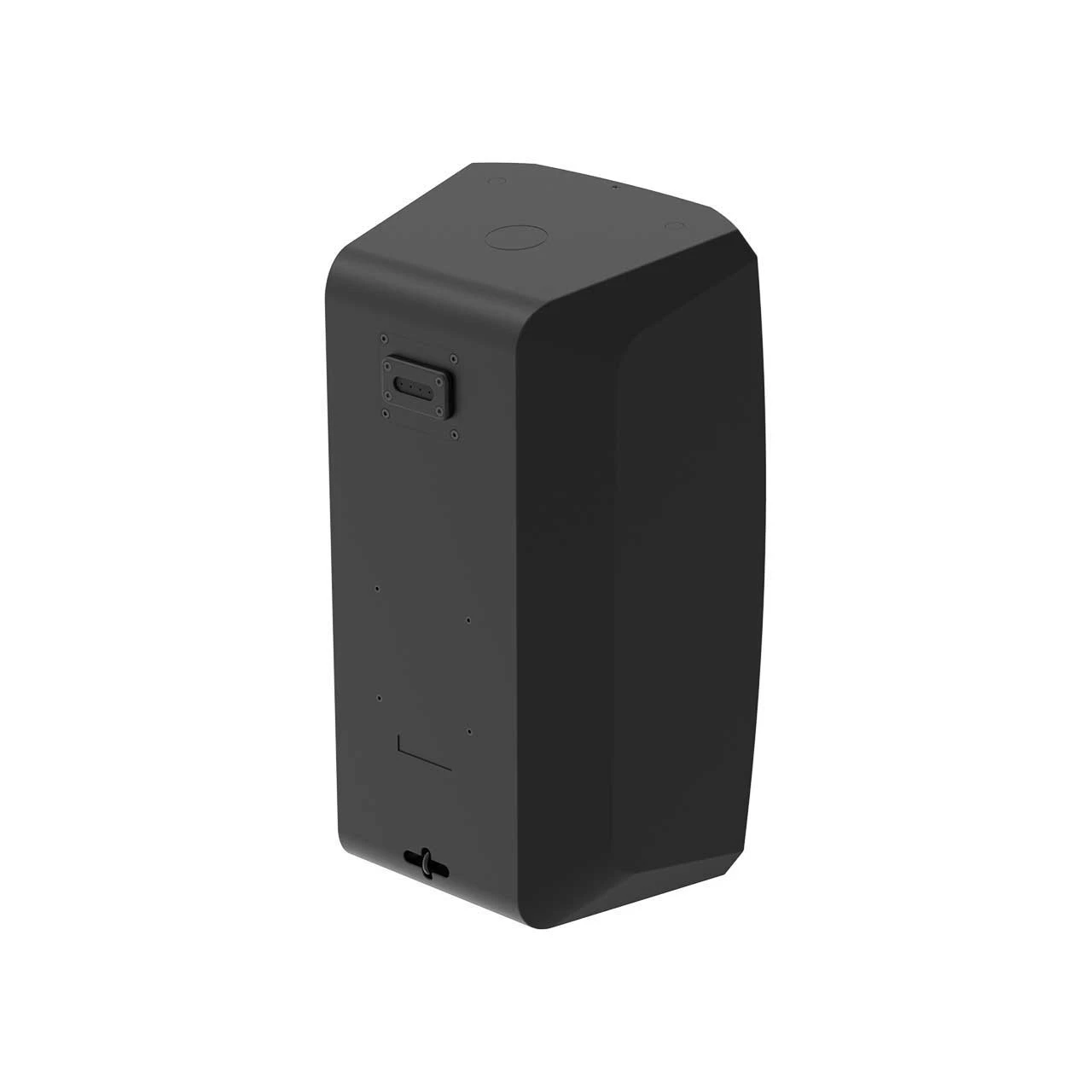

AtlasIED AS-10ST-B AS Series 10-Inch Weather Resistant Surface Mount 1200 Watt Subwoofer - Passive - Black

AtlasIED AS-10ST-B AS Series 10-Inch Weather Resistant Surface Mount 1200 Watt Subwoofer - Passive - Black - Image 2

AtlasIED AS-10ST-B AS Series 10-Inch Weather Resistant Surface Mount 1200 Watt Subwoofer - Passive - Black - Image 3

AtlasIED AS-10ST-B AS Series 10-Inch Weather Resistant Surface Mount 1200 Watt Subwoofer - Passive - Black - Image 4

AtlasIED AS-10ST-B AS Series 10-Inch Weather Resistant Surface Mount 1200 Watt Subwoofer - Passive - Black -Microphone Shop ATL AS 10ST B 1

AtlasIED AS-10ST-B AS Series 10-Inch Weather Resistant Surface Mount 1200 Watt Subwoofer – Passive – Black

Original price was: $364.00.Current price is: $96.99.

SKU: BWFYA 7524548 Categories: Audio Monitoring, Subwoofers

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

AS-10ST-B – Overview

The AtlasIED AS-10ST is a high-performance direct radiating subwoofer, designed to extend low frequency response, and increase system headroom in conjunction with AtlasIED AS Series of full range loudspeakers. Ideal for applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites.

Featuring a high excursion weather treated 10″ woofer with highly damped butyl rubber surround, the AS-10T delivers consistent impactful bass.

Complimenting the form factor of AS Series full range loudspeakers, the AS-10ST is available in textured black or white. The outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out.

Safe and effective Installation of the AS-10ST is made simple by way of the included slip free yoke mount.

Equipped with a low insertion loss 200W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.

Features:
- Minimalistic and clean industrial design for sensitive architectural constraints
- Effective foreground coverage for systems with space limitations
- Ultra-low insertion loss 200W transformer for dynamic performance in distributed systems
- High impact ABS enclosure with UV inhibitor
- IP55 & UL1480A rated
- Slip-Free yoke mount supplied.
- Advanced tunings available via AtlasIED Atmosphere DSP platform
Specifications:
- System Specification
- Type: Direct Radiating Subwoofer
- Frequency Range (-10dB): 34Hz-800Hz
- Frequency Response (+/- 3dB): 43Hz-600Hz
- System Sensitivity (1W @ 1m): 93dB
- Nominal Coverage Angle (HxV -6dB): Omnidirectional
  Power Handling
- Average: 300W
- Programme: 600W
- Peak: 1200W
- Recommended Amplifier Power: 600W @ 4 Ohms
- Nominal Impedance: 4 Ohms (Min 4.9 Ohms)
  Rated Maximum SPL
- Average: 118dB
- Peak: 124dB
- With Max. Transformer Tap – Average: 116dB
- Transformer Taps- via slide selector switch: 200W, 100W, 50W ( 25W 70V) & Low Z operation
- Directivity Index (dB): N/Amplifier
  Transducers
- Low Frequency: 10″ (250mm) Weather Treated Paper, Butyl Rubber Surround
  Physical Specifications
- Enclosure: High Impact ABS UL-V0
- Grille Material: Aluminum, Powder Coated
- Connectors: Euroblock with screw connections and loop output
- Safety Agency Rating: UL1480A, CE
- Ingress Protection: IP55
- Operating Temperature: -40°F to 140°F (-40° C to 60° C)
- Environmental Testing: Conforms to MIL-STD-810 for salt spray & humidity
- Product Dimensions (HxWxD): 23.4″ x 12.25″ x 11.74″ (594.4mm x 311.2mm x 298.2mm)
- Net Weight – (per unit): 35.27 lbs (16.0kg)
Item Includes:
- 1x AtlasIED AS-10ST-B 10-Inch AS Series Surface Mount Subwoofer – Black
- 1x Slip Free U-Bracket
Warranty:
- 5-Year Limited Warranty
