AT-2020USB-X – Overview
A reimagining of the popular AT2020USB+ microphone, the Audio-Technica AT2020USB-X is specially designed to meet the needs of podcasters, streamers, and other creators, offering the critically acclaimed, award-winning sound of the original AT2020 with the convenience of plug-and-play USB-C operation.
The microphone’s directional pickup (cardioid) keeps the focus on your voice or other chosen sound source, while its high-resolution A/D converter (up to 24-bit/96 kHz sampling rate) ensures extremely clear, natural sound reproduction. The AT2020USB-X features a built-in headphone jack with volume control to let you directly monitor the microphone signal with no delay. It also offers a mix control to let you blend the microphone’s audio with audio from the computer, and has a silent touch-sensitive mute button to quickly and easily mute audio at the microphone.

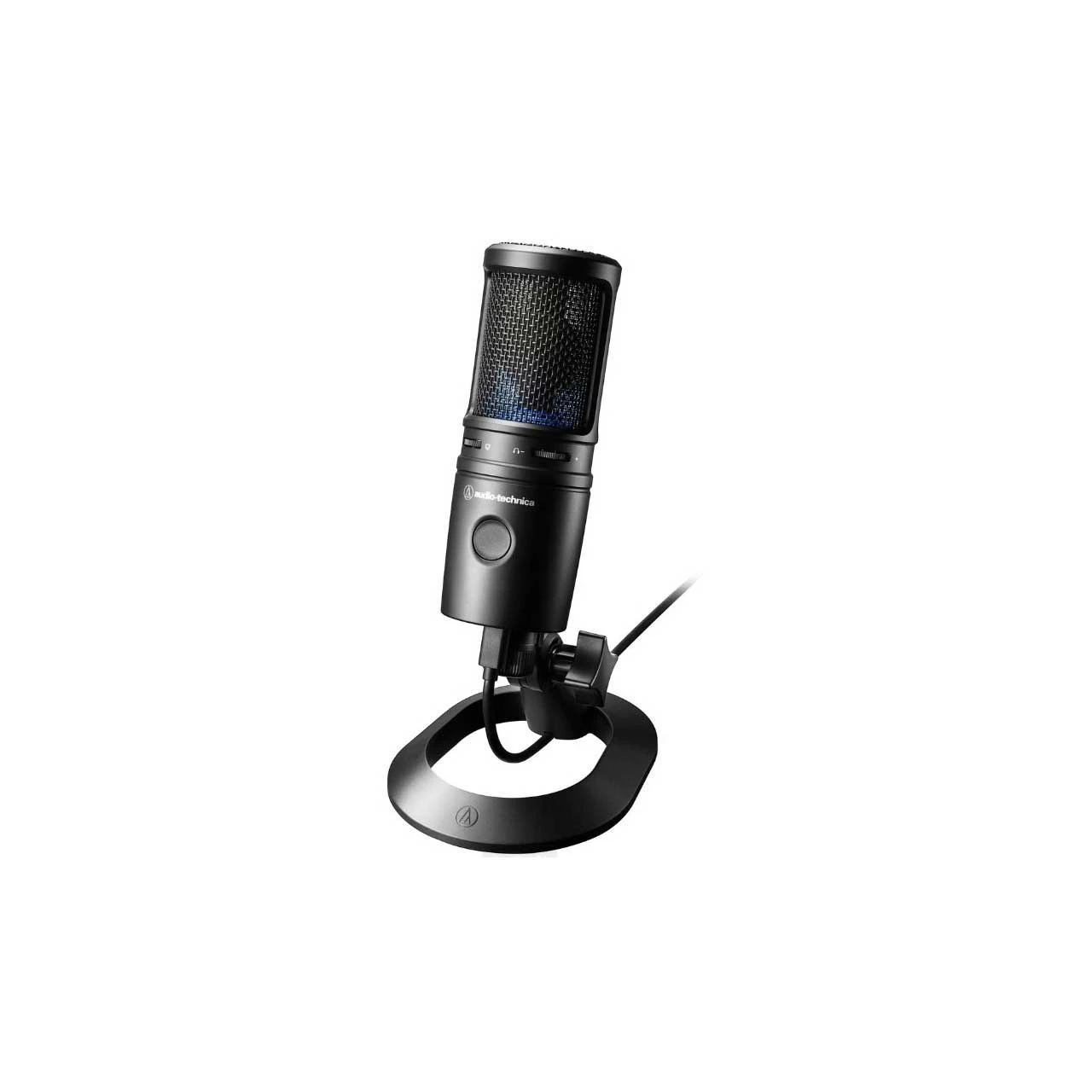

The microphone comes with a custom desk stand, 3/8″-16 to 5/8″-27 threaded adapter, and 6.6-foot (2.0 m) USB-C to USB-A cable with a USB-A to USB-C adapter.
-
Features:
- Headphone Output with Mix Control
- Headphone jack with volume control allows you to monitor the microphone signal with no delay. Mix control allows you to blend your microphone signal with computer audio.

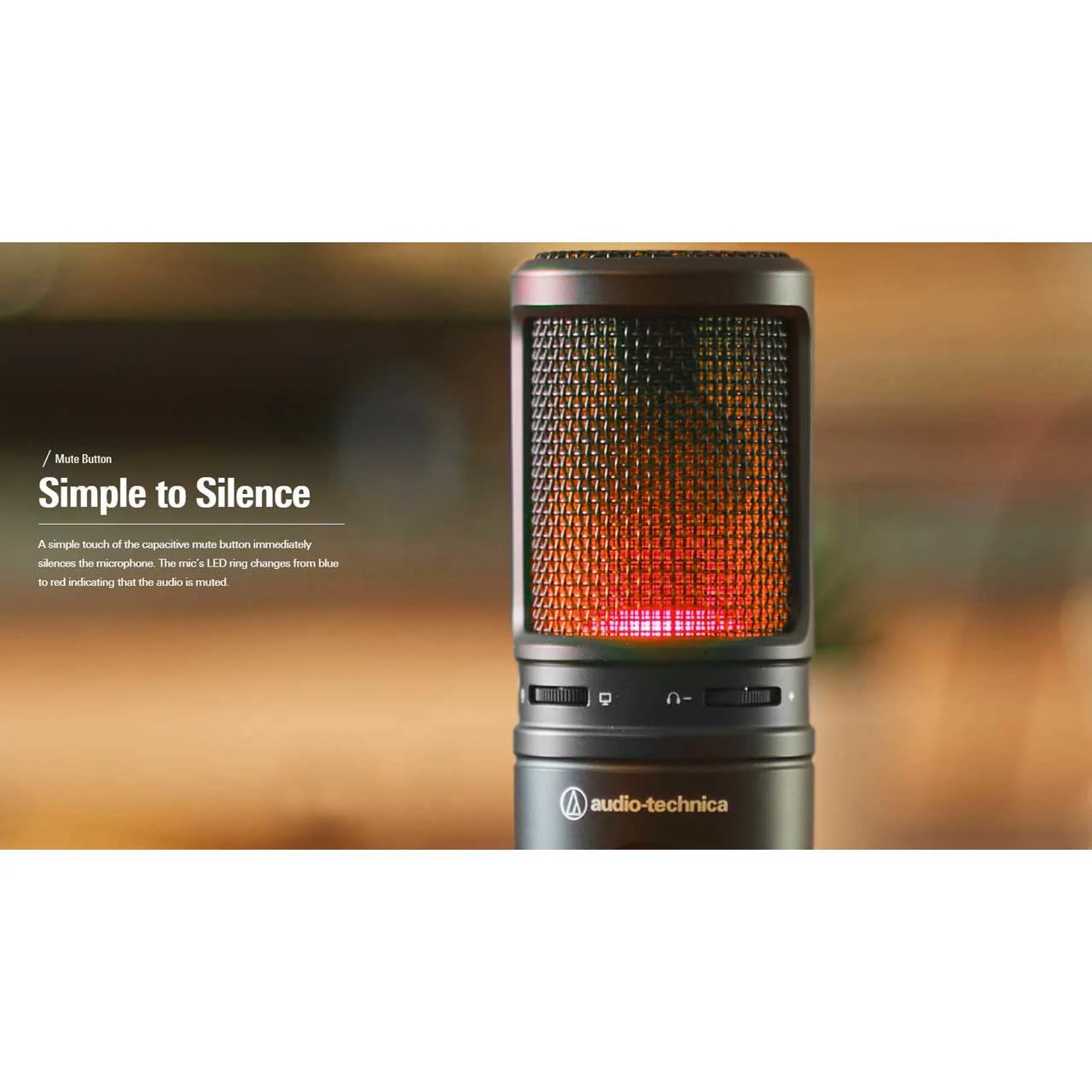

Mute Button
- A soft-touch capacitive mute button is conveniently located on the body of the microphone to quickly and silently mute audio at the microphone.
24-bit/96 kHz Sample Rate
- High-resolution A/D converter with up to 24-bit/96 kHz sampling rate for extremely clear, natural sound reproduction.
USB-C Output
- Microphone is equipped with a USB-C output and includes a cable with USB-C and USB-A options, expanding the microphone’s compatibility and making it easier to use, now and in the future.
- Headphone output with mix control
- Headphone jack with volume control allows you to monitor the microphone signal with no delay. Mix control allows you to blend your microphone signal with computer audio.
Mute Button
- A soft-touch capacitive mute button is conveniently located on the body of the microphone to quickly and silently mute audio at the microphone.
24-bit/96 kHz Sample Rate
- High-resolution A/D converter with up to 24-bit/96 kHz sampling rate for extremely clear, natural sound reproduction.
USB-C Output
- Microphone is equipped with a USB-C output and includes a cable with USB-C and USB-A options, expanding the microphone’s compatibility and making it easier to use, now and in the future.
Additional Features
- Condenser microphone with USB output for digital recording
- High-output internal headphone amplifier delivers superior clarity, volume and musical detail
- Smooth, extended frequency response ideally suited for streaming, podcasting, and music and video production
- Accessories included: 3/8″-16 to 5/8″-27 threaded adapter, desk stand, 2.0 m (6.6′) USB-C to USB-A cable, USB-A to USB-C adapter
-
Specifications:
- System Requirements: USB 2.0 compliant
- Supported OS: Supported OS Windows 8.1 (64 bit), Windows 10 (64 bit), macOS Catalina, macOS Big Sur
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 20-20,000 Hz
- Power Supply: USB power (5V DC)
- Bit Depth: 16 bit/24 bit
- Supported Sampling Rates: 44.1 kHz/48 kHz/88.2 kHz/96 kHz
- Controls: Headphone level control, mix control, mute
- Dimensions: 5.6″ (142 mm) long, 2.0″ (52 mm) maximum body diameter
- Weight: ~0.81lbs (373 g)
- Output Connector: USB Type-C
- Headphone Output: Headphone Output 110 mW (at 1 kHz, 1% T.H.D., 32 ohms)
- Headphone Jack: Headphone Jack 1/8″ (3.5 mm) stereo mini-jack
-
Item Includes:
- 1x Stand (AT8702)
- 1x 3/8″-16 to 5/8″-27 threaded adapter
- 1x USB cable (2.0 m (6.6′), USB Type-C to USB Type-A)
- 1x USB conversion adapter (USB-Type-A to USB Type-C)
-
GTIN:
4961310156138
