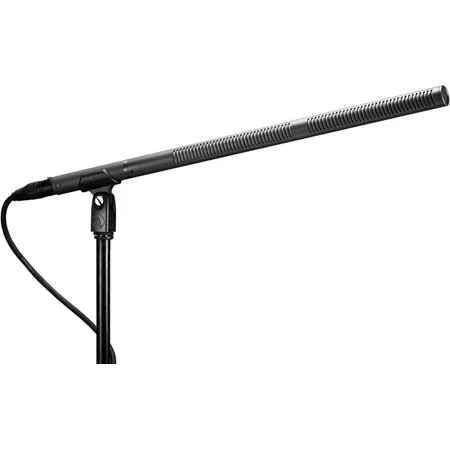

AT8015 – Overview
Designed for video production and broadcast (ENG/EFP) audio acquisition, the Audio-Technica AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.
Did You Know?
Many top record producers, when recording vocals, will use a dynamic mic for up close vocals and a heavily compressed shotgun mic about five feet away. It’s true! The dynamic mic not only captures part of the final sound, but is also useful for giving the artist something to focus on, keeping a fairly consistent position relative to the shotgun mic. Have a shotgun mic on hand for your next vocal session….it could be the goldmine you’ve been seeking!
-
Features:
- Designed for video production and broadcast (ENG/EFP) audio acquisition
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Excellent sound rejection from the sides and rear of mic
- Switchable low-frequency roll-off
- Operates on battery or phantom power
- RoHS compliant-free from all substances specified in the EU directive on hazardous substances
-
Specifications:
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Line + gradient
- Frequency Response: 40 – 20,000Hz
- Low Frequency Roll-Off: 80Hz, 18dB/octave
- Open Circuit Sensitivity: Phantom: -38dB (12.5mV) re 1V @ 1Pa; Battery: -39dB (11.2mV) re 1V @ 1Pa
- Impedance: Phantom: 250Ω; Battery: 300Ω
- Maximum Input Sound Level: Phantom: 132dB SPL, 1kHz @ 1% T.H.D.; Battery: 120dB SPL, 1kHz @ 1% T.H.D.
- Dynamic Range (typical): Phantom: 110dB, 1kHz @ Max SPL; Battery: 98dB, 1kHz @ Max SPL
- Signal-To-Noise Ratio: 72dB, 1kHz @ 1Pa
- Phantom Power Requirements: 11 – 52V DC, 2mA typical
- Battery Type: 1.5V AA/UM3
- Battery Current/Life: 0.4mA/1200 hours typical (alkaline)
- Switch: Flat, roll-off
- Weight: 6.9oz
- Dimensions: 18.11″ long, 0.83″ diameter
- Output Connector: Integral 3-pin XLRM-type
- Audio-Technica Case Style: SG3
-
Item Includes:
- AT8405a stand clamp for 5/8″-27 threaded stands
- 5/8″-27 to 3/8″-16 threaded adapter
- AT8135 windscreen
- Battery
- Protective carrying case
-
Warranty:
- 5 Year Limited End-User
-
GTIN:
4961310098247
