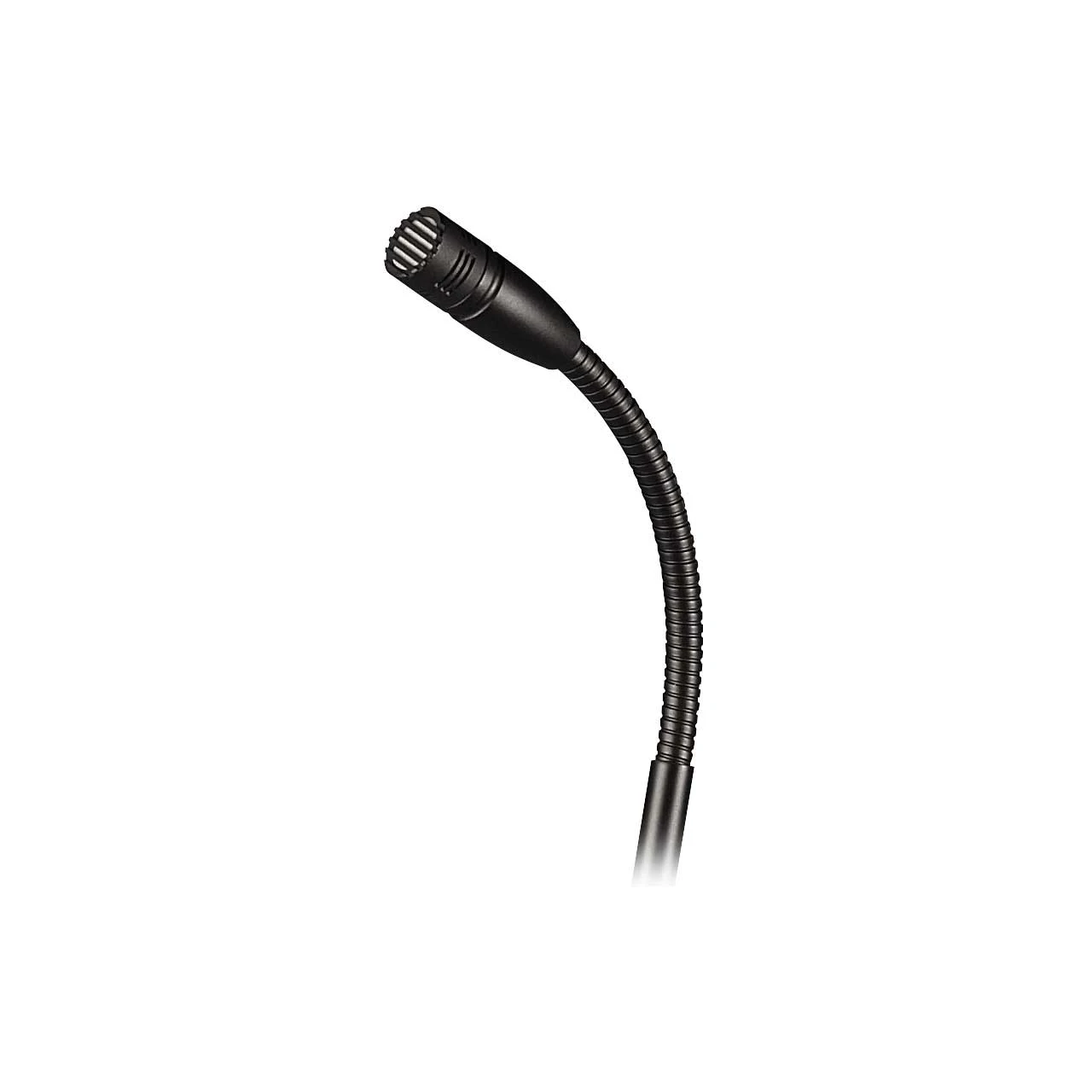

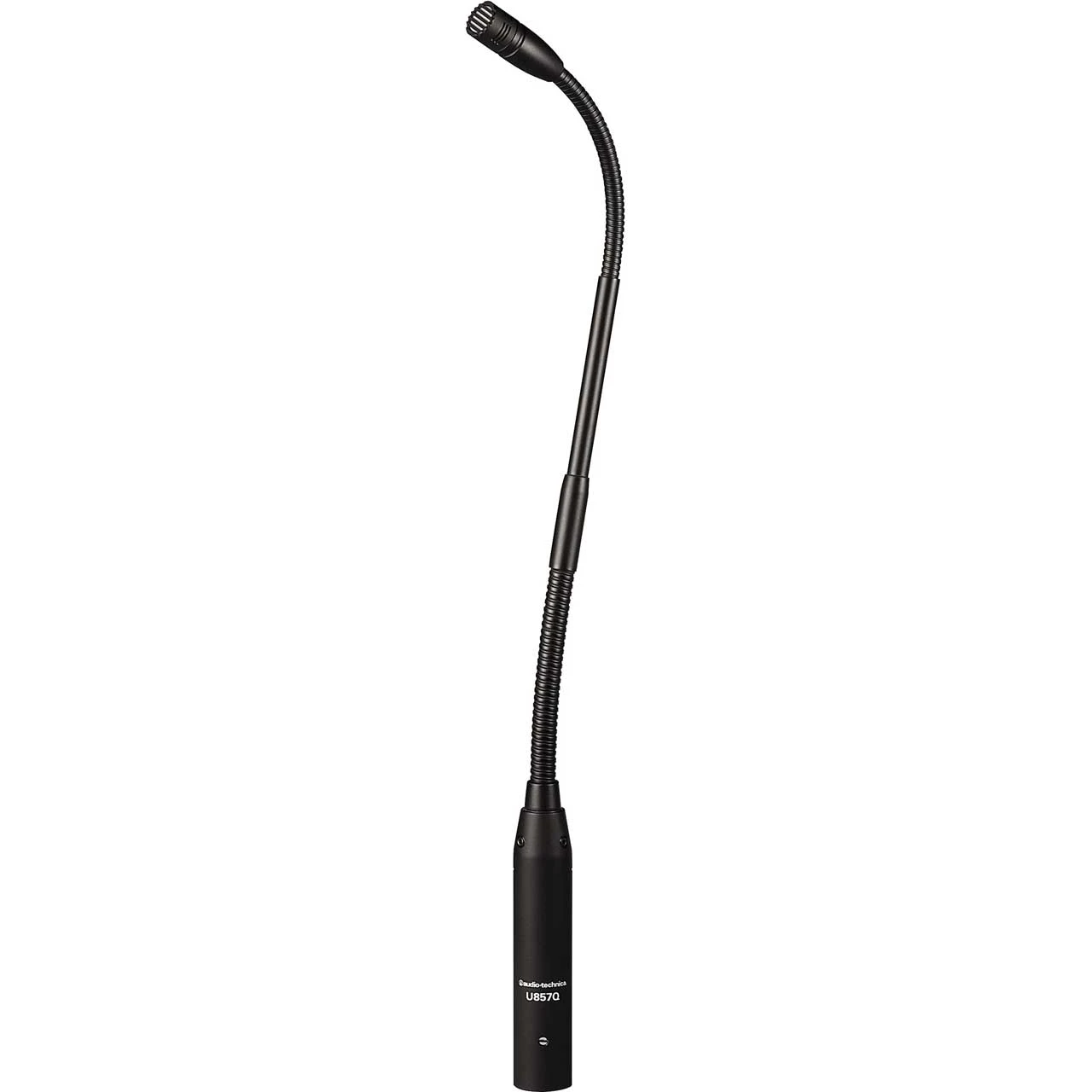

U857Q – Overview
Ideal for conference centers, boardrooms, courtrooms, houses of worship, and other installed applications, the Audio-Technica U857Q is designed to plug directly into a panel- or desk-mounted XLRF-type connector. This cardioid condenser quick-mount gooseneck microphone offers unsurpassed immunity from radio frequency interference thanks to Audio-Technica’s UniGuard® innovations. The 14.47″ long microphone features an ultra-flexible small-diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.
-
Features:
- Designed for high-quality sound reinforcement, professional recording and broadcasting
- Superior off-axis rejection for maximum gain before feedback
- UniGuard° RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
- UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Self-contained electronics eliminate need for external power module
- Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
- Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
- Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
- Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface
-
Specifications:
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Frequency Response: 30 – 20,000Hz
- Low Frequency Roll-Off: 80Hz, 18dB/octave
- Open Circuit Sensitivity: -39dB (11.2mV) re 1V @ 1Pa
- Impedance: 250Ω
- Maximum Input Sound Level: 139dB SPL, 1kHz @ 1% T.H.D.
- Dynamic Range (typical): 115dB, 1kHz @ Max SPL
- Signal-To-Noise Ratio: 70dB, 1kHz @ 1Pa
- Phantom Power Requirements: 11 – 52V DC, 2mA typical
- Switch: Flat, roll-off
- Weight: 5.1oz
- Dimensions: 14.37″ long, 0.48″ head diameter, 0.74″ base diameter
- Output Connector: Integral 3-pin XLRM-type
- Optional Interchangeable Elements: UE-H hypercardioid (100°); UE-O omnidirectional (360°); UE-UL UniLine® (90°)
- Audio-Technica Case Style: M34
-

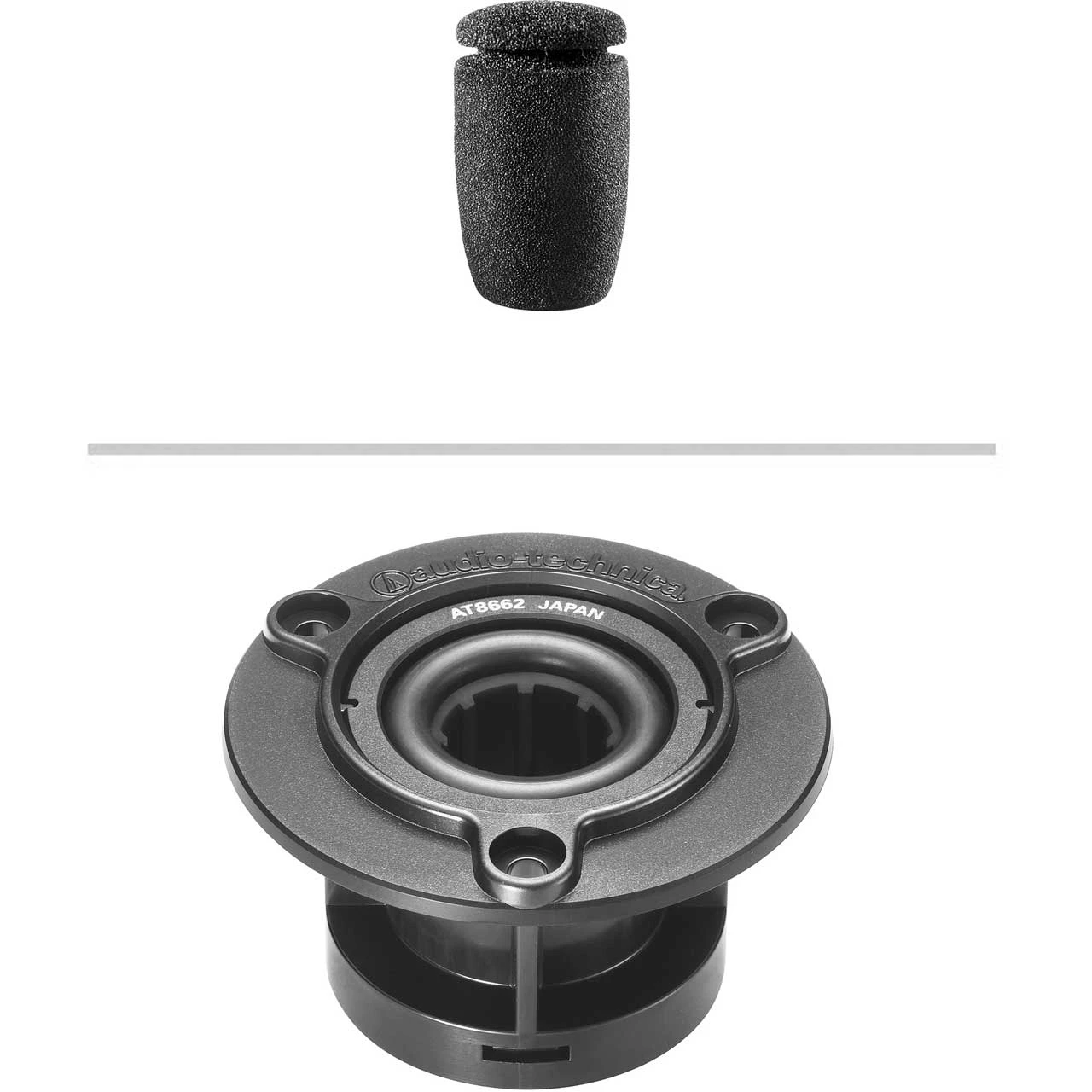

Item Includes:
- AT8153 two-stage foam windscreen
- AT8662 shock mount
-
Warranty:
- 2 Year Limited End-User
-
GTIN:
0042005140817
