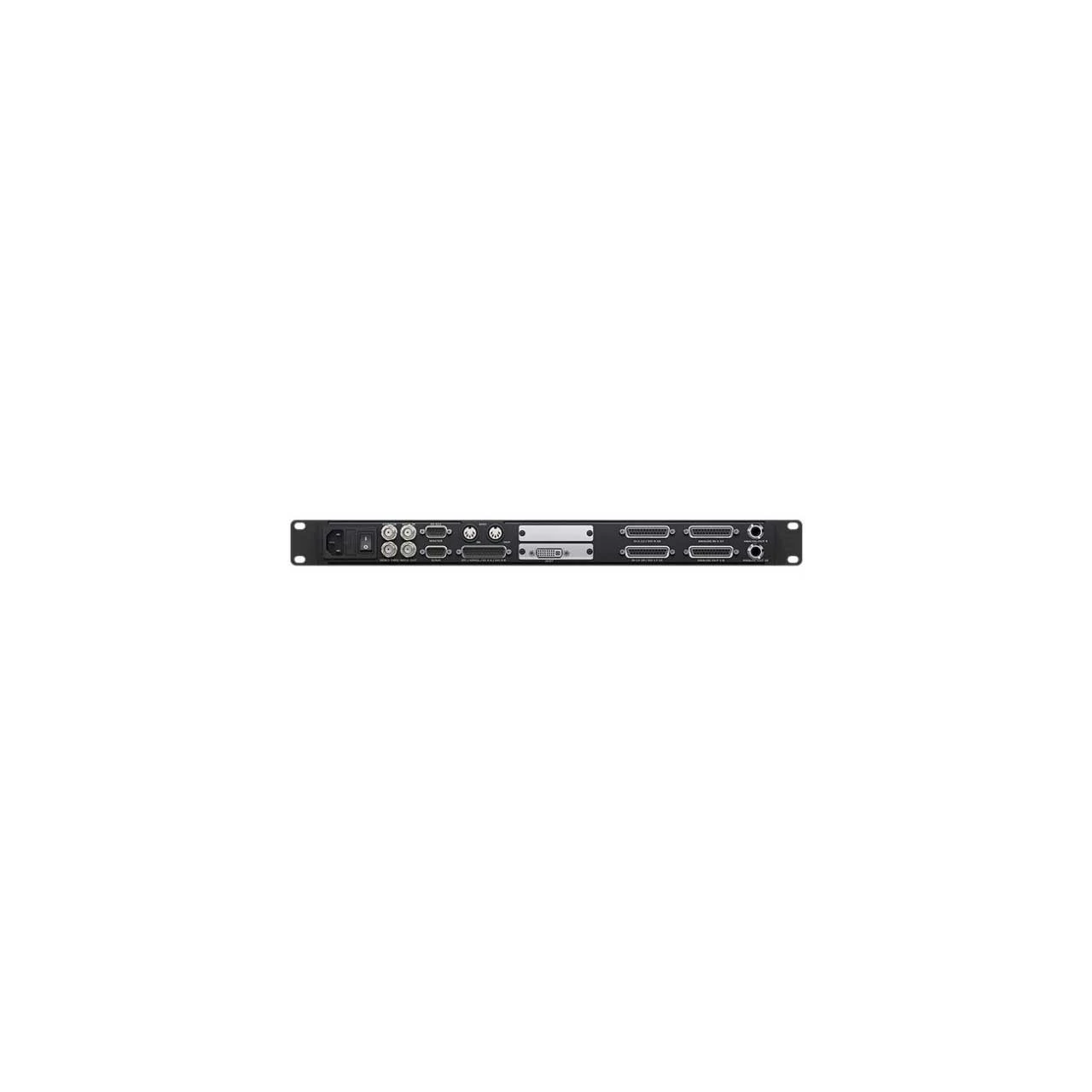

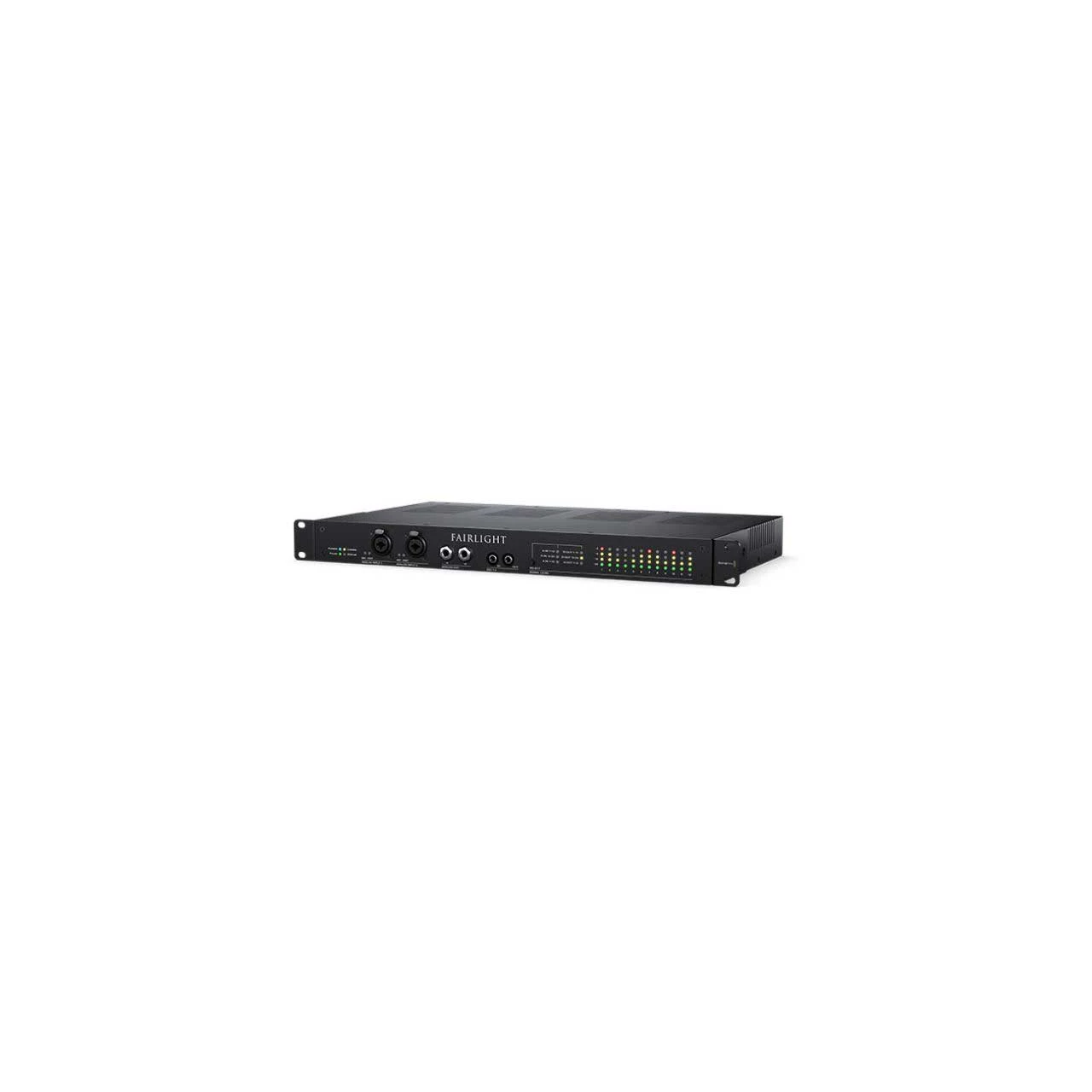

Blackmagic DV/RFL/AUDIF 1RU Rackmount Fairlight Audio Interface

DV/RFL/AUDIF – Overview

• Specifications:

  • Connections
  • Analog Audio Inputs:
    2x remote controlled XLR/TRS microphone inputs with 48v phantom power/instrument preamps
    8x +24dBu balanced analog inputs
    Analog Audio Outputs: 12 x +24dBu balanced analog outputs with mute protection
  • Digital Audio Inputs:
    9x fully transformer coupled AES stereo digital inputs
    1x S/PDIF input with sample-rate conversion
  • Digital Audio Outputs:
    11x AES stereo digital outputs
    1x stereo digital S/PDIF output
    Standard 25pin Tascam interface for Analog and AES looms
  • Sync Input
    1x 75 ohm BNC Reference input. Tri-Sync or Black Burst
    1x 75 ohm BNC word clock input
  • Sync Output
    1x 75 ohm BNC Reference loop out. Tri-Sync or Black Burst
    1x 75 ohm BNC word clock regenerated output
    Sync to all common frame rates and formats including HD Tri-level sync, video sync, word-clock and AES/EBU
  • Device Control
    1x RS-422 9-pin machine control input
    1x RS-422 9-pin machine control output

    Timecode

  • Timecode input and output with regeneration

    MIDI

  • For future use

    GPIO

  • GPI and GPO connections for cough and ‘On-Air’ control

    Product Specifics

  • Sample Rate: 44.1, 48, 96, 192 kHz
  • Max Input
    Inputs 1-2 (mic): +2.5dBu
    Inputs 1-2 (instrument): +24dBu
    Inputs 3-10 (Line): +24dBu
  • Gain Range
    Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB)
    Inputs 1-2 : Instrument Setting: 50dB gain range (+0 to +50dB)
  • Mic E.I.N (unweighted)
    Inputs 1-2: -127dBu @40dB (61.5dB)
    Gain: 150 ohm source, 20Hz – 20kHz THD+N (mic input)
    Inputs 1-2: 0.001%@ 1kHz, -1 dBFS at 0dB gain
    Inputs 1-2: 0.004%@ 1kHz, -1 dBFS at 40dB (61.5dB) gain
  • THD+N (line input)
    Inputs 1-2: 0.001%@ 1kHz, -1 dBFS after 0dB gain (unweighted)
    Inputs 3-10 : 0.001 % @ 1 kHz (unweighted)
  • Dynamic Range (line input)
    Inputs 1-2 : 108dB @ 0dB gain (unweighted)
    Inputs 3-10: 110dB (unweighted)
  • Input Frequency Response: +0.05/-0.05dB, 20Hz – 20kHz
  • Input Impedance
    Inputs 1-2 (XLR) : 2k ohm
    Inputs 1-2 (1/4″): >1M ohm
    Inputs 3-10: 15k ohm
  • Max Output: Outputs 1-12: +24 dBu
  • THD+N (Line Outputs): Outputs 1-12: 0.002%
  • Dynamic Range (Line Output): Outputs 1-12 : 109 dB (unweighted)
  • Output Frequency Response: +0.05/-0.5dB, 20Hz – 20kHz
  • Output Impedance: Outputs 1-12 : 50 ohms
  • Operating Systems: Mac 10.15 Catalina or later. Windows 10, 64-bit

    Power Requirements

  • Power Supply: Internal 100 – 240V AC 50/60Hz with IEC C14 mains input
  • Power Usage: 40W
  • Power Management: Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on

    Environmental Specifications

  • Operating Temperature: 0° to 40°C (32° to 104°F)
  • Storage Temperature: -20° to 60°C (-4° to 140°F)
  • Relative Humidity: 0% to 90% non-condensing

    Weight

  • 15Lbs


• Item Includes:

  • 1x Fairlight Audio Interface
  • 1x Multi-pin cable to connect to Fairlight Audio Accelerator


• Warranty:

  • 1 Year Limited Manufacturer’s Warranty


• GTIN:

  9338716004854
