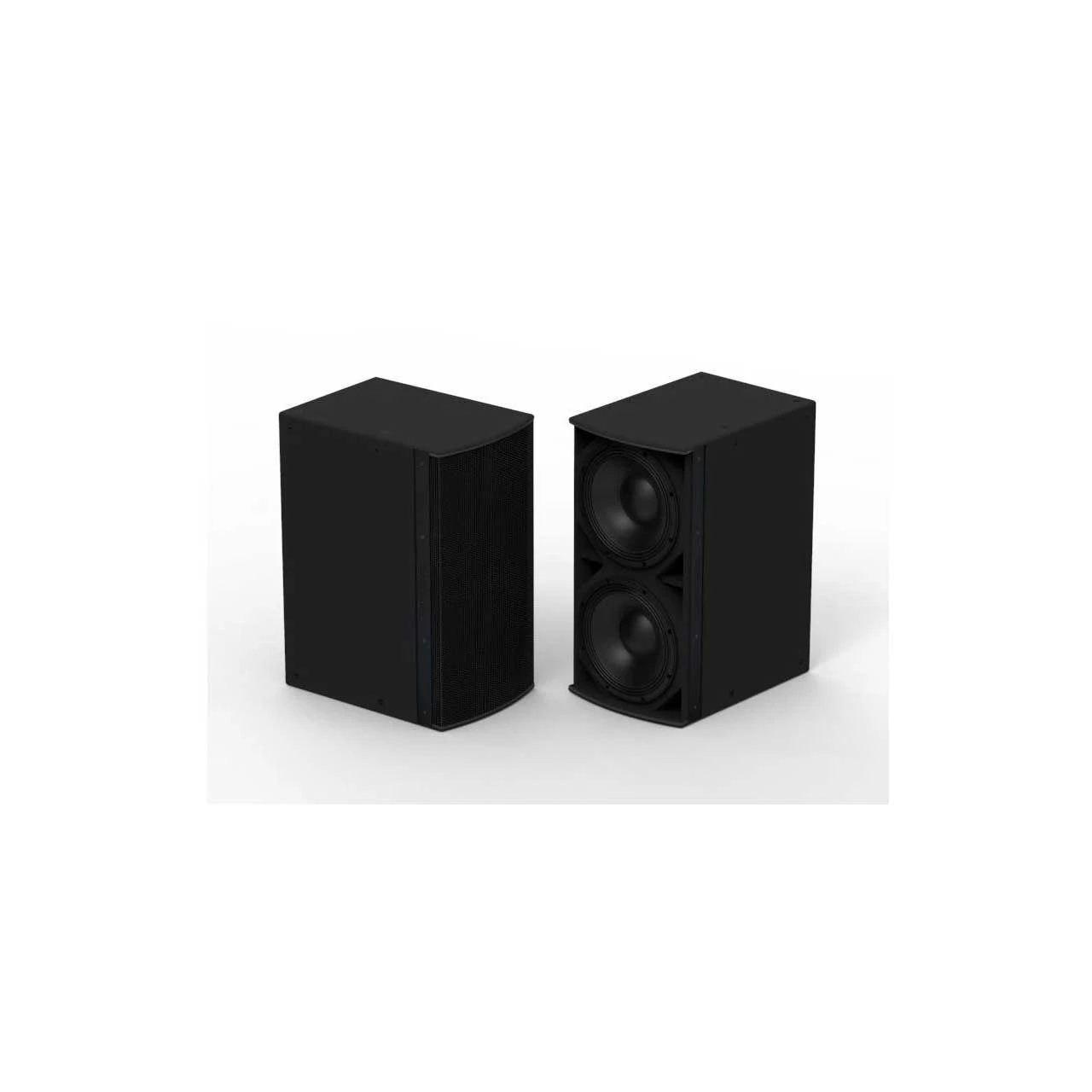

Community IS8-212B High Power Dual 12 Inch Subwoofer Black

Community IS8-212B High Power Dual 12 Inch Subwoofer Black - Image 2

Community IS8-212B High Power Dual 12 Inch Subwoofer Black - Image 3

Community IS8-212B High Power Dual 12 Inch Subwoofer Black - Image 4

Community IS8-212B High Power Dual 12 Inch Subwoofer Black -Microphone Shop CMTY IS8 212B 1

Community IS8-212B High Power Dual 12 Inch Subwoofer Black

Original price was: $372.00.Current price is: $95.99.

SKU: BWFYA 9132998 Categories: Audio Monitoring, Subwoofers

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

IS8-212B – Overview

Your Voice Is always Stronger When You Have A Community Backing It Up!

I SERIES similar-sized rectangular enclosures, construction, finish and aligned suspension points for seamless flown array integration. High power, 1000W(+) continuous power handling, neodymium woofers. User selectable single amp or biamp operation on the dual subwoofer models. Rubber feet included for floor installation. Easily configured low profile rigging hardware available for multiple applications (see Accessories).

I SERIES Subwoofer 800 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

Each cabinet was carefully designed to provide matching heights, face widths and suspension point locations for seamless integration into flown arrays with I SERIES full range models. The broad range of optional low profile fly rails, fly frames and modular array brackets reduce design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS8-212 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, reducing distortion and extending system longevity. Drivers are loaded into individual air volumes within the enclosure, isolating their performance from one another. This arrangement not only provides additional protection to drivers in case of failures, but also allows the designer to implement directional subwoofer techniques, like steered end-fire arrays and cardioid patterns, within a single enclosure when using any I SERIES dual driver subwoofer model.

APPLICATIONS:
Houses of Worship
Auditoriums
Restaurants
Meeting Rooms
Theaters
Corporate A/V Systems
Arenas
Stadiums
Night Clubs
Theaters
Themed Entertainment/Amusement Parks

Features:
- High-flux, linear neodymium motors with demodulation rings for very low distortion.
- Matched-size enclosure and aligned suspension point for seamless flown array integration.
- 2000W continuous power handling (8000W peak).
- Long, linear excursion ensures deep, clean bass extension at maximum output.
- Isolated driver air volumes allow use of directional steering techniques within a single enclosure.
Specifications:

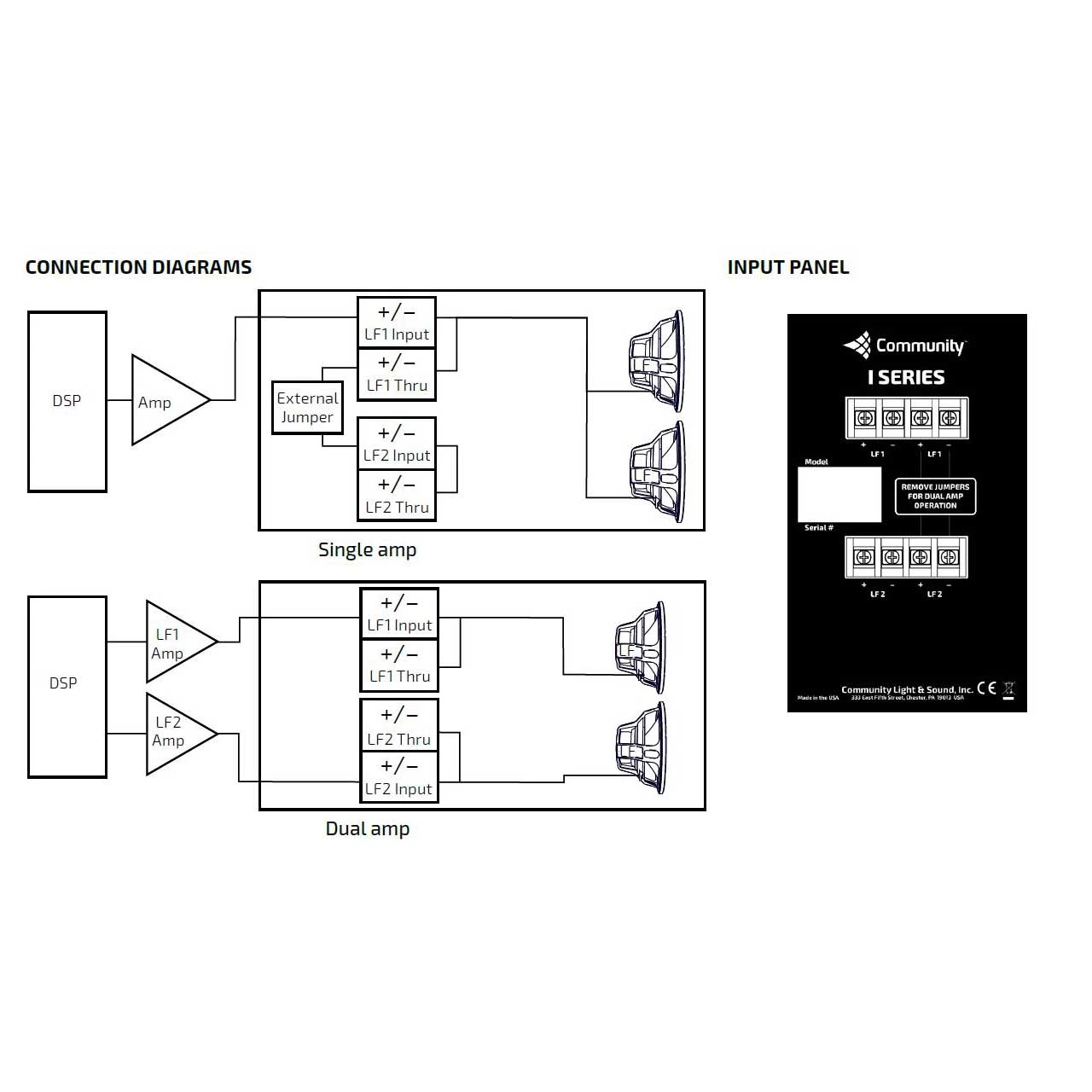

- Operating Mode: Single or Dual Amp
- Operating Environment: Indoor or Weather-Resistant Outdoor.
- Operating Range: 38 Hz to 140 Hz
- Transducers: 2 x 12″ (300mm) double-treated cones with 4″ (102mm) inner/outer wound voice coil, ferrite construction
- Continuous Power Handling @ Nominal Impedance; Single Amp 89V 2000W @ 4 ohms (8000W peak), Dual Amp 89V 1000W @ 8 ohms (4000W peak) (each).
- Nominal Sensitivity: Half Space @ 1W 98 dB, @ 2.83V 101 dB, Whole Space @ 1W 92 dB, @ 2.83V 95 dB
- Nominal Maximum SPL (Whole Space): Peak 132 dB, Continuous 126 dB, (Half Space) Peak 138 dB, Continuous 126 dB.
- Equalized Sensitivity: Half Space @ 1W 97 dB, @ 2.83V 100 dB, Whole Space: @ 1W 91 dB, @ 2.83V 94 dB.
- Equalized Maximum SPL: Half Space Peak136 dB, Continuous 130 dB, Whole Space Peak 130 dB, Continuous 124 dB.
- Recommended Amplifiers: Single Amp 2000W – 4000W @ 4 ohms, (89V – 126V), Dual Amp 1000W – 2000W @ 8 ohms, (89V – 126V) (each driver)
- Input Connection: Indoor: (2) Screw terminal blocks (4-position),
- Mounting Points: (24) M10 threaded rigging points, (23 in Outdoor model).
- Environmental: Outdoor: IP55W per IEC 60529 , MIL-STD-810G
- Weight 89 lbs (40.4 kg) subwoofer only.
- Dimensions H x W x D 28.00″ x 14.50″ x 21.00 ” (711 x 368 x 533 mm).
GTIN:

0617174031374
