Community Pro Loudspeakers AFC200 200 Watt 70/100 Volt Line Loudspeaker Auto-Transformer

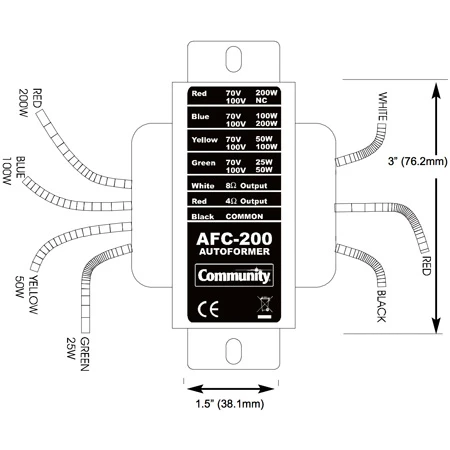

The Community Pro Loudspeakers AFC200 is a 200 Watt 70/100 volt line autoformer to step down the voltage and impedance of “constant voltage” audio distribution lines to the voltage level and impedance required by loudspeakers. The AFC200 has four output taps. The taps allow individual loudspeakers to be adjusted to operate at the same or different power levels compared to other loudspeakers on the distribution line. The input tap can be used for 100V, 70V distribution systems. The output taps of the AFC200 are designed to drive nominal 4 or 8 ohm loudspeakers.

The AFC200 is manufactured from high quality materials. Its high permeability iron core provides high power handling at low frequencies. The AFC200 has two mounting tabs that allow it to be bolted into back-boxes or other enclosures, to loudspeaker enclosures, or to loudspeaker mounting hardware. The stripped wire input and output leads can be easily connected to loudspeaker terminals and the distribution cable in a variety of ways including terminal strips, soldering, and wire-nuts.
