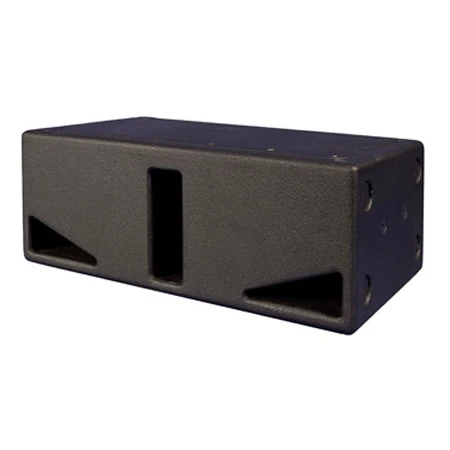

Community VLF208W Dual 8-Inch Bandpass Micro Subwoofer White

Original price was: $332.00.Current price is: $98.99.

SKU: BWFYA 88573238 Category: Audio Monitoring

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

VLF208W – Overview

The VLF208 is a compact dual 8-inch subwoofer system with a no grille design that can be installed under stages, in walls or ceilings, or in other low profile locations in either the vertical or horizontal mounting position. Its extremely low profile enclosure is narrow enough to fit comfortably between wall studs, providing “hidden” LF extension. With a response down to 70 Hz in passive mode or 60 Hz using digital signal processing, the VLF208 can function in steered bass arrays, and is equipped with fly points and four rubber feet with recessed foot mounting locations on two sides.

The VLF208 is a powerful and innovative low frequency subwoofer that when arrayed is effective in reducing unwanted reflections in theatres, restaurants, auditoria, houses of worship, schools and other applications, fitting comfortably into areas where larger subwoofers are impractical.

The VLF208 comes with two methods of connecting the amplifier to the loudspeaker. One is an industry standard NL4 type locking connector, and the other is a terminal strip. These two connectors are
wired in parallel with each other.

Applications:
Houses of worship
Performing arts centers
Theaters, lecture halls
Auditoria
Restaurants
The “cafegymnatorium”
Portable bass reinforcement
Under-stage, in-wall, under-seating and ceiling mount applications.

Features:
- Low profile design, small footprint
- Designed to work as a traditional subwoofer or in steered bass
- arrays
- DYNA-TECHT protection circuitry
- Suitable for in-wall, under-seating, under-stage and other
- “hidden” LF applications
- Optional wall/ceiling mounting brackets and array brackets for
- multiple cluster configurations
- Available in black or white finishes
- Five-year warranty
Specifications:
- Operating Range: 55 Hz to 400 Hz
- 60 Hz to 160 Hz (±1 dB) processed
- Max Input Ratings: 300W continuous, 750W program, 4 ohms
- 35 volts RMS, 77 volts momentary peak
- Recommended Power
- Amplifier: 630W to 900W @ 4 ohms
- Sensitivity (1W/1m): 95 dB SPL (63 Hz to 160 Hz 1/3 octave
- bands)
- Maximum Output: 120 dB SPL / 127 dB SPL (peak)
- Nominal Impedance: 4 ohms
- Minimum Impedance: 4.8 ohms @ 130 Hz
- Nominal -6dB
- Beamwidth: 360° H x 180° V
- Axial Q / DI: 1/0, 60 Hz to 160 Hz
- Recommended Signal
- Processing: 55 Hz high pass filter, 48 dB/Oct
- Drivers: LF (2) 8″
- Driver Protection: DYNA-TECHT
- Input Connection: (1) NL4-compatible locking connector
- (1) 2 conductor barrier strip
- Enclosure: 11-ply cross-laminated birch
- Finish: Black or white paint finish
- Mounting/Rigging
- Provisions: (8) M10 hang points
- Required Accessories: Digital signal processor
- Supplied Accessories: (4) Rubber feet
- Optional Accessories: VLF-SAB steered array bracket
- VLF-Y208 yoke mounting bracket
- Dimensions-Height: 8.25 inches (210 mm)
- Width: 21.75 inches (552 mm)
- Depth: 13 inches (330 mm)
- Weight: 42 lbs (19.1 kg)
GTIN:

0617174012120
