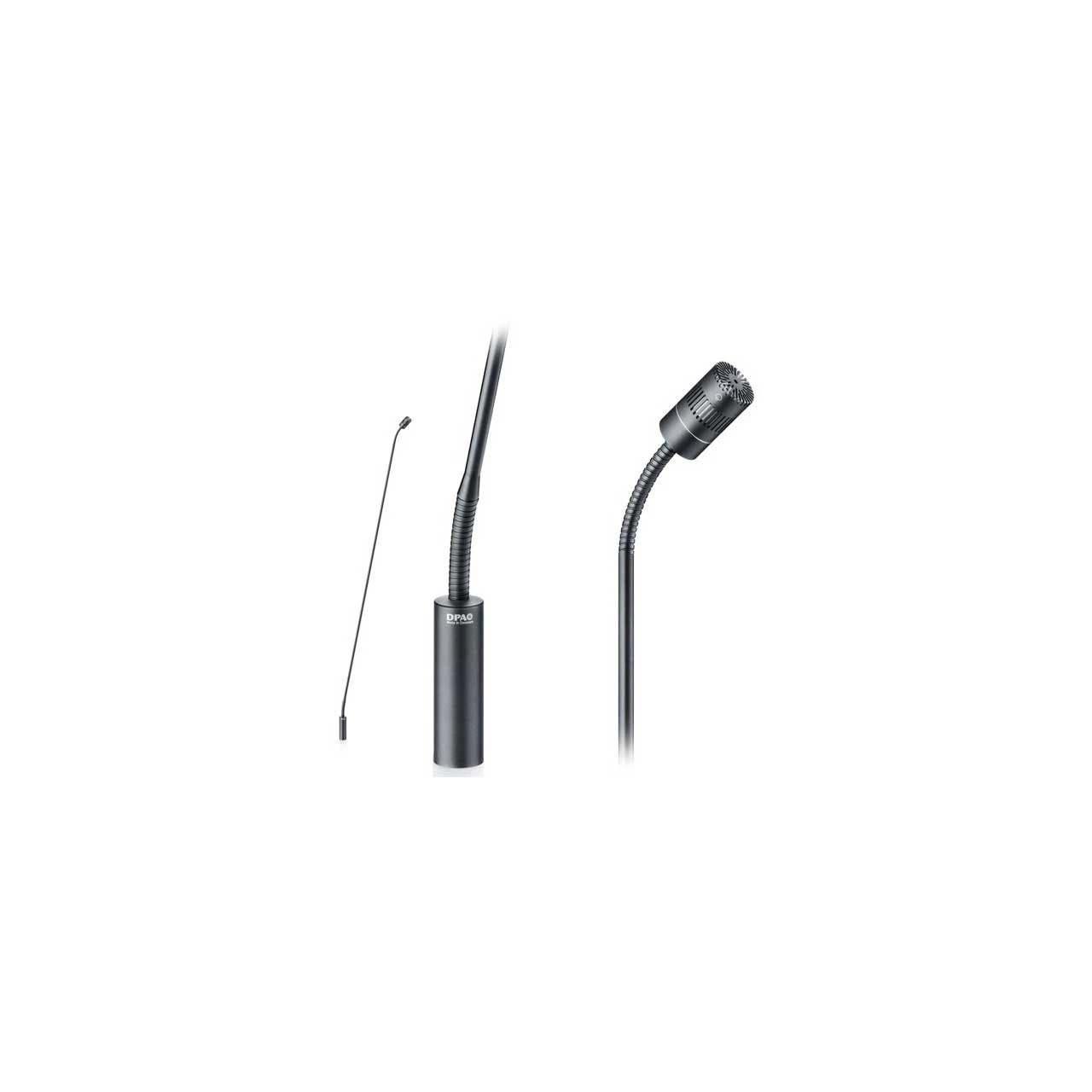

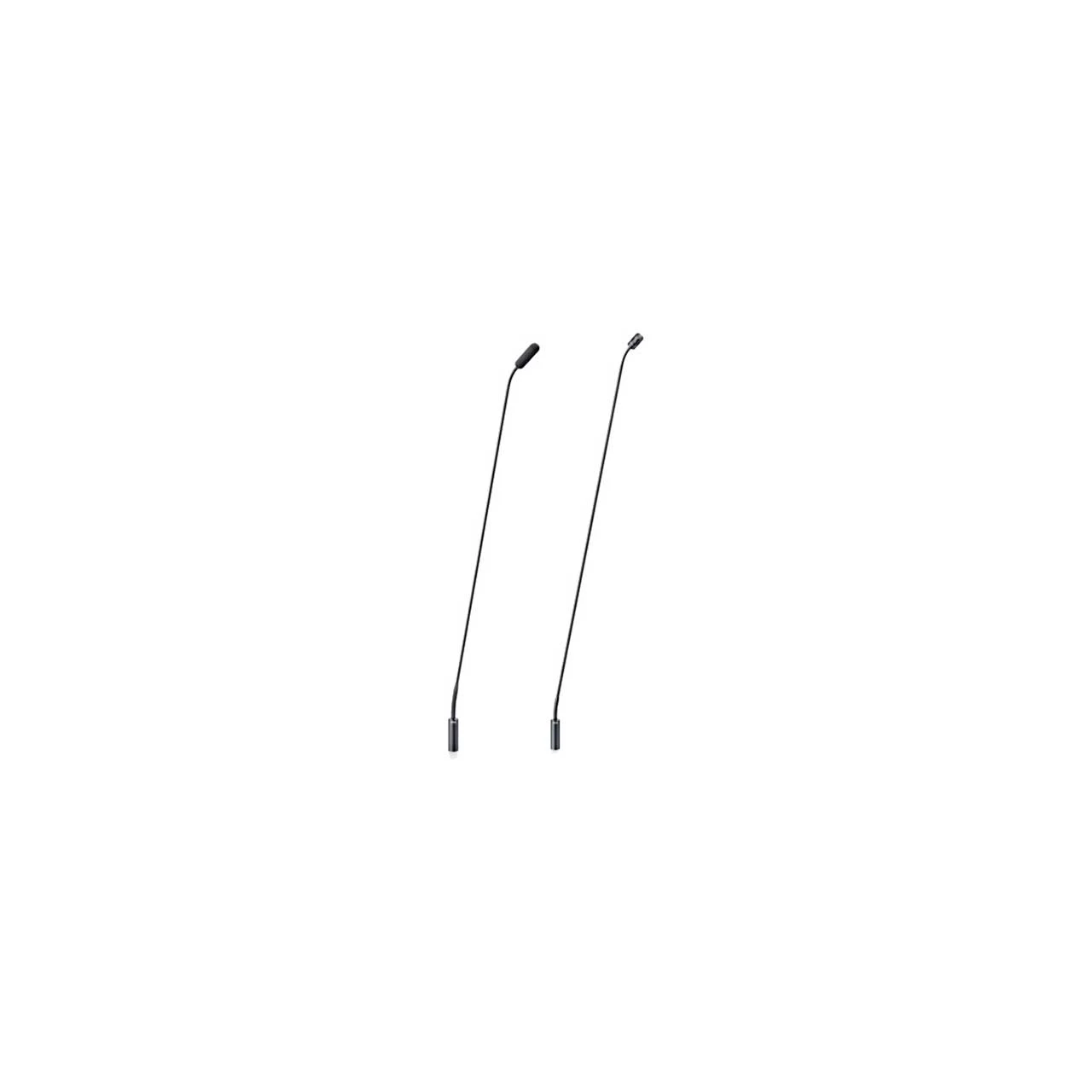

DPA 4011-DF-G-B01-030 D:sign™ 4011 Cardioid Mic XLR Boom Top And Bottom Gooseneck - Black - 13 Inch

DPA 4011-DF-G-B01-030 D:sign™ 4011 Cardioid Mic XLR Boom Top And Bottom Gooseneck - Black - 13 Inch - Image 2

DPA 4011-DF-G-B01-030 D:sign™ 4011 Cardioid Mic XLR Boom Top And Bottom Gooseneck – Black – 13 Inch

Original price was: $374.00.Current price is: $98.99.

SKU: BWFYA 57819146 Categories: Gooseneck Microphones, Microphones

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

4011-DF-G-B01-030 – Overview

DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount. These microphones have, on numerous occasions, been the preferred type to turn to when high speech intelligibility is paramount. This for instance is the fact at parliaments where multiple languages are to be simultaneous interpreted and the interpreters must catch every word and nuances of the spoken word and in a split second deliver the perfect translation.

Using the MMC4011 Cardioid Microphone Capsule for its directional quality and attention to detail, the 4011-DF-G-B01-030 solution makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.

A flat on-axis frequency response and excellent phase response deliver a faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.

Features:
- Outstanding audio quality
- Wireless podium mic capability
- Highly directional – very isolated
- High rejection of radio frequency interference
- Sleek Scandinavian design
Specifications:
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz – 20 kHz
- Frequency range: ±;2 dB, at 30 cm (11.8 in) 40 Hz – 20 kHz
- Sensitivity: nominal, ±;2 dB at 1 kHz 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level: A-weighted Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level: ITU-R BS.468-4 Typ. 25 dB
- S/N ratio (A-weighted): re. 1 kHz at 1 Pa (94 dB SPL) Typ. 76 dB(A)
- Total harmonic distortion (THD): 1% up to 139 dB SPL peak
- Dynamic range: Typ. 121 dB
- Max. SPL: peak before clipping 144 dB
- Output impedance: 100 Ω
- Minimum load impedance: 2 kΩ
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing
- Common mode rejection ratio (CMRR) >: 40 dB
- Power supply (for full performance): 48 V Phantom power (±; 4 V)
- Current consumption: 3.5 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
- Color: Matte black
- Microphone diameter: 19 mm (0.75 in)
- Capsule diameter: 19 mm (0.75 in)
- Microphone length Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
- Maximum output voltage: RMS 2.2 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Matching tolerance (frequency response and sensitivity): ±;1 dB
- Phase deviation for kit: 10°
GTIN:

5713055013301
