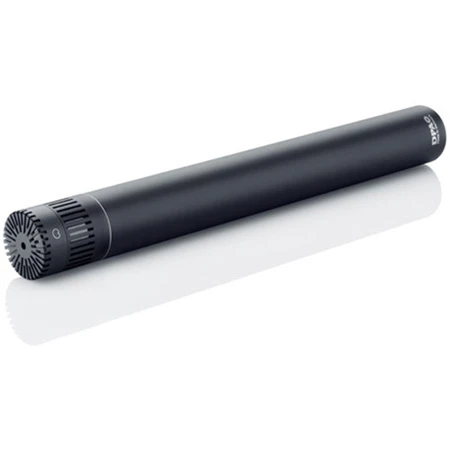

DPA 4011A Ultra-compact Spot Or Hanging Cardioid Condenser Mic

Original price was: $393.00.Current price is: $98.99.

SKU: BWFYA 59915463 Category: Microphones

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

4011A – Overview

The DPA 4011A condenser microphone is renowned in recording studios and live applications around the world as an exceptional mic. State-of-the-art components have been carefully selected to provide optimal neutrality, accuracy and extremely low distortion. It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels and even includes a 20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone.

Combine it with the preamp of your choice
As with all of their modular pencil microphones, you can combine the Cardioid Mic Capsule with any of our preamps.

The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps for our pencil microphones.

Features:
- Ultra-compact spot or hanging mic
- Close-miking
- Great for high sound pressure levels
- Accurate sound
- Colorless sound
- Modular flexibility
Specifications:
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz – 20 kHz
- Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz – 20 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 27 dB)
- Distortion, THD 1%: 136 dB SPL RMS, 139 dB SPL peak
- Dynamic range: Typ. 121 dB
- Max. SPL, THD 10%: 159 dB SPL peak
- Switchable attenuator, filters etc.: 0 dB / -20 dB
- Rated output impedance: 200 Ω
- Minimum load impedance: 2 kΩ
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common mode rejection ratio (CMRR): > 60 dB
- Power supply (for full performance): P48 (Phantom Power)
- Current consumption: 2.8 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
- Color: Matte black
- Weight: 158 g (5.6 oz)
- Microphone diameter: 19 mm (0.75 in)
- Capsule diameter: 19 mm (0.75 in)
- Microphone length: 170 mm (6.7 in)
- Maximum output voltage, RMS: 8 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Matching tolerance (frequency response and sensitivity): ±1 dB
- Phase deviation for kit: 10°
Item Includes:
- 1x DPA 4011A Ultra-compact Spot or Hanging Cardioid Condenser Mic
