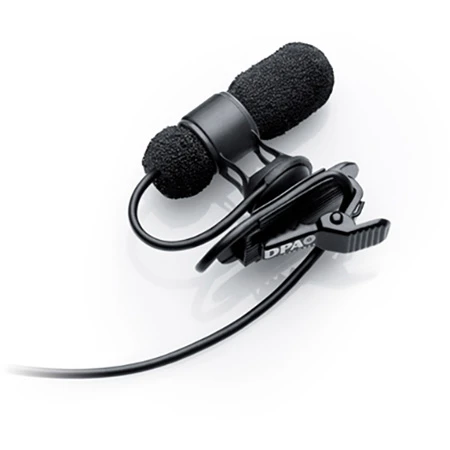

4080-DC-D-B10 – Overview
The d:screet mini 4080-DC-DB10 Miniature Cardioid Lavalier Microphone with a Microdot Termination from DPA Microphones is designed for speech reproduction in broadcast, conference, and live applications in the studio or the field. It features a pre-EQ’d 4dB presence boost to help accentuate vocals and the speaking range. The 4080 can be clipped to both left and right buttoned shirts and includes black and white pop filters.
-
Features:
- Designed for Speech Reproduction
- For Broadcast, Conference, or Live Use
- Pre-EQ’d 4dB Presence Boost
- Fits Left- and Right-Buttoned Shirts
-
Specifications:
- Polar Pattern: Cardioid
- Principle of Operation: Pressure gradient
- Cartridge Type: Pre-polarized condenser element with vertical diaphragm
- Frequency Range: 250 Hz to 17 kHz with a typical 4 dB soft boost @ 4 to 6 kHz (-5 dB @ 100 Hz), +/- 2 dB
- Sensitivity: 20 mV/Pa at 1 kHz; -34.4 dB re. 1 V/Pa (nominal, +/-3 dB @ 1 kHz)
- Equivalent Noise Level A-Weighted: Typical: 23 dBA re. 20 æPa, Maximum: 26 dBA
- S/N Ratio: 71 dBA, 1 kHz at 1 Pa (94 dB SPL)
- Dynamic Range: Typical: 100 dB
- Maximum Sound Pressure Level (SPL): Peak Before Clipping: 134 dB
- Output Impedance: 30 to 40Ω
- Cable Drive Capability: Up to 984′ (300 m)
- Connector: Microdot termination
- Cable Length: 4′ (1.2 m)
- Cable Diameter: 0.06″ (1.6 mm)
- Dimensions (OxL): 0.4 x 1.2″ (10 x 30 mm)
- Weight: 0.5 oz (15 g)
- Package Weight: 0.135 lb
- Box Dimensions (LxWxH): 4.3 x 2.8 x 1″
