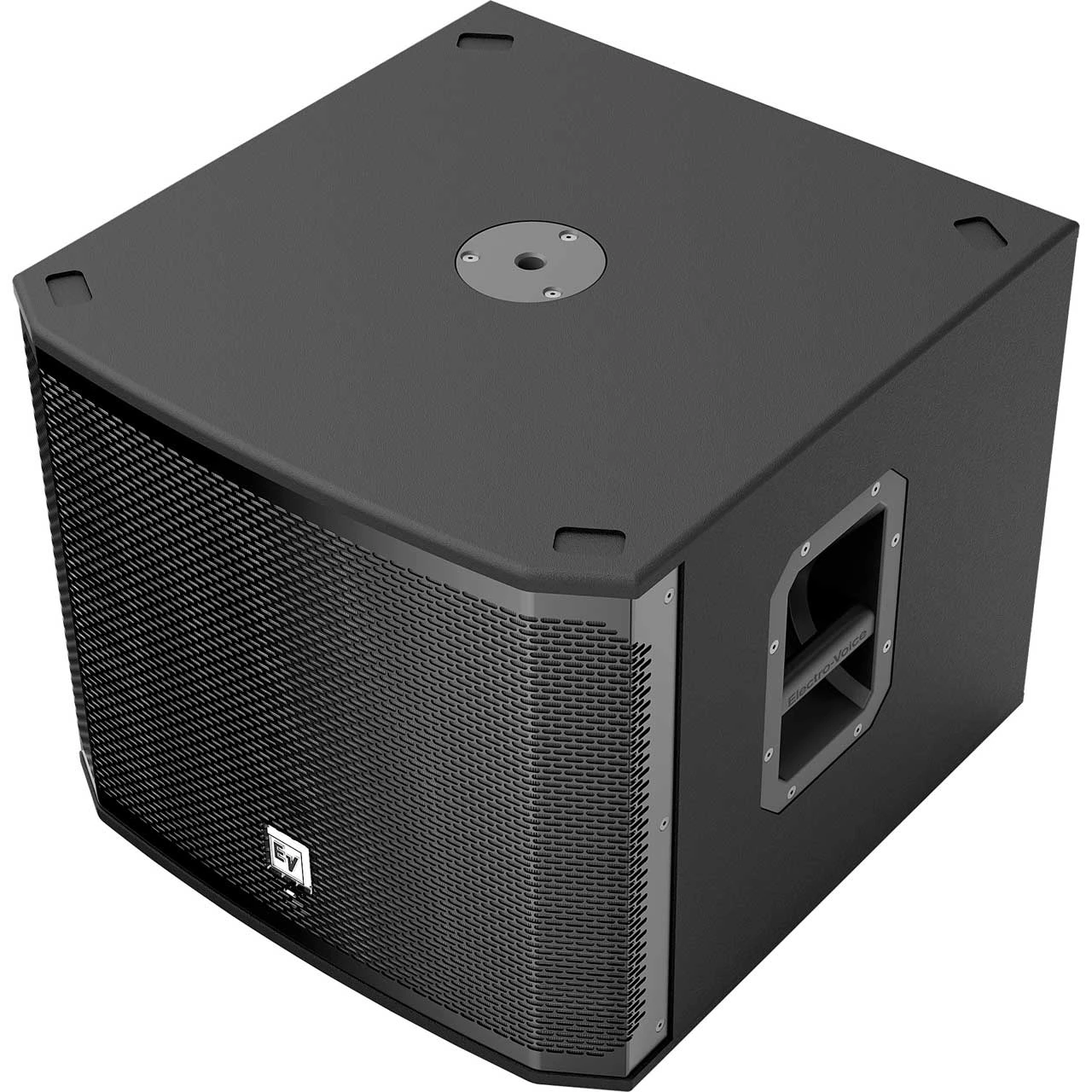

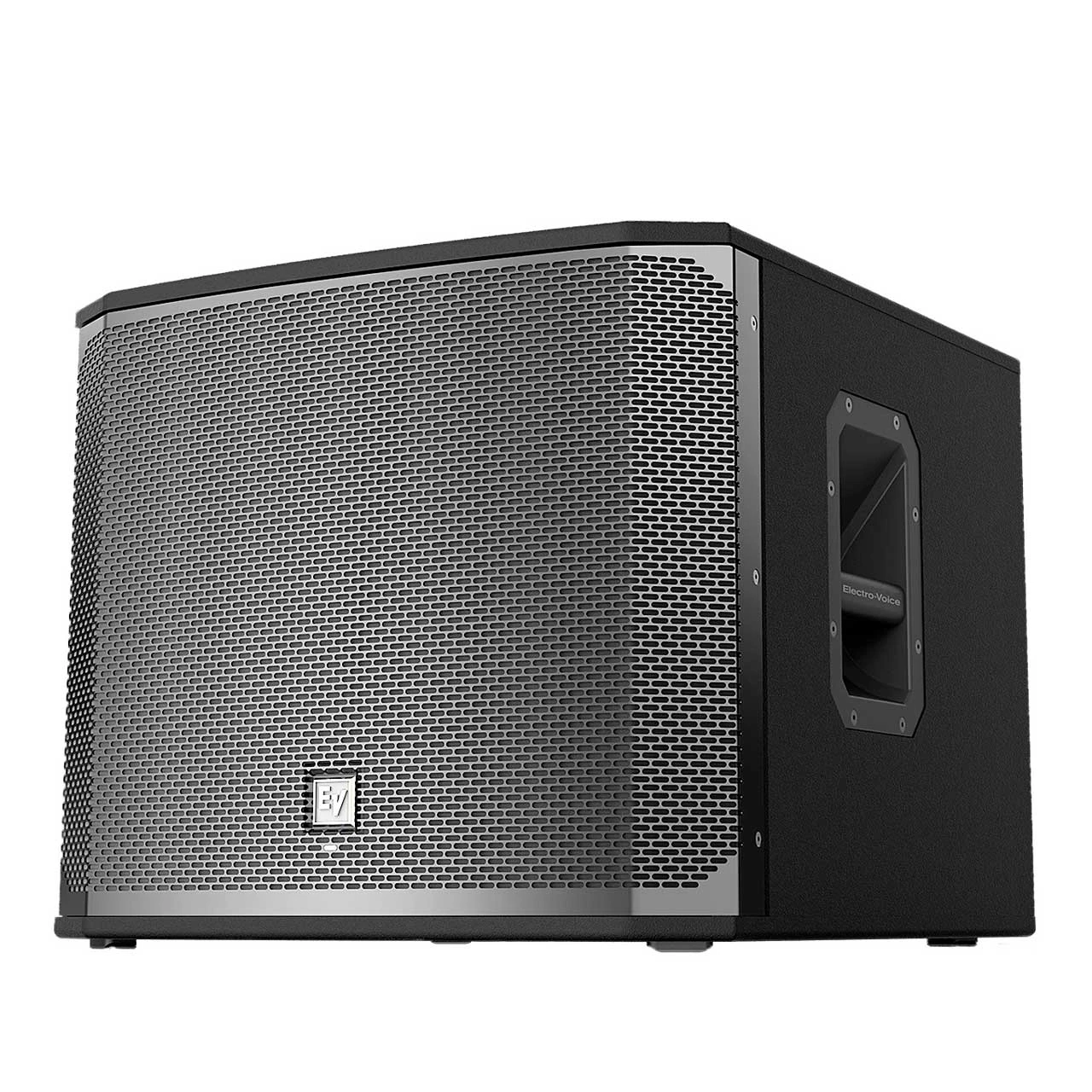

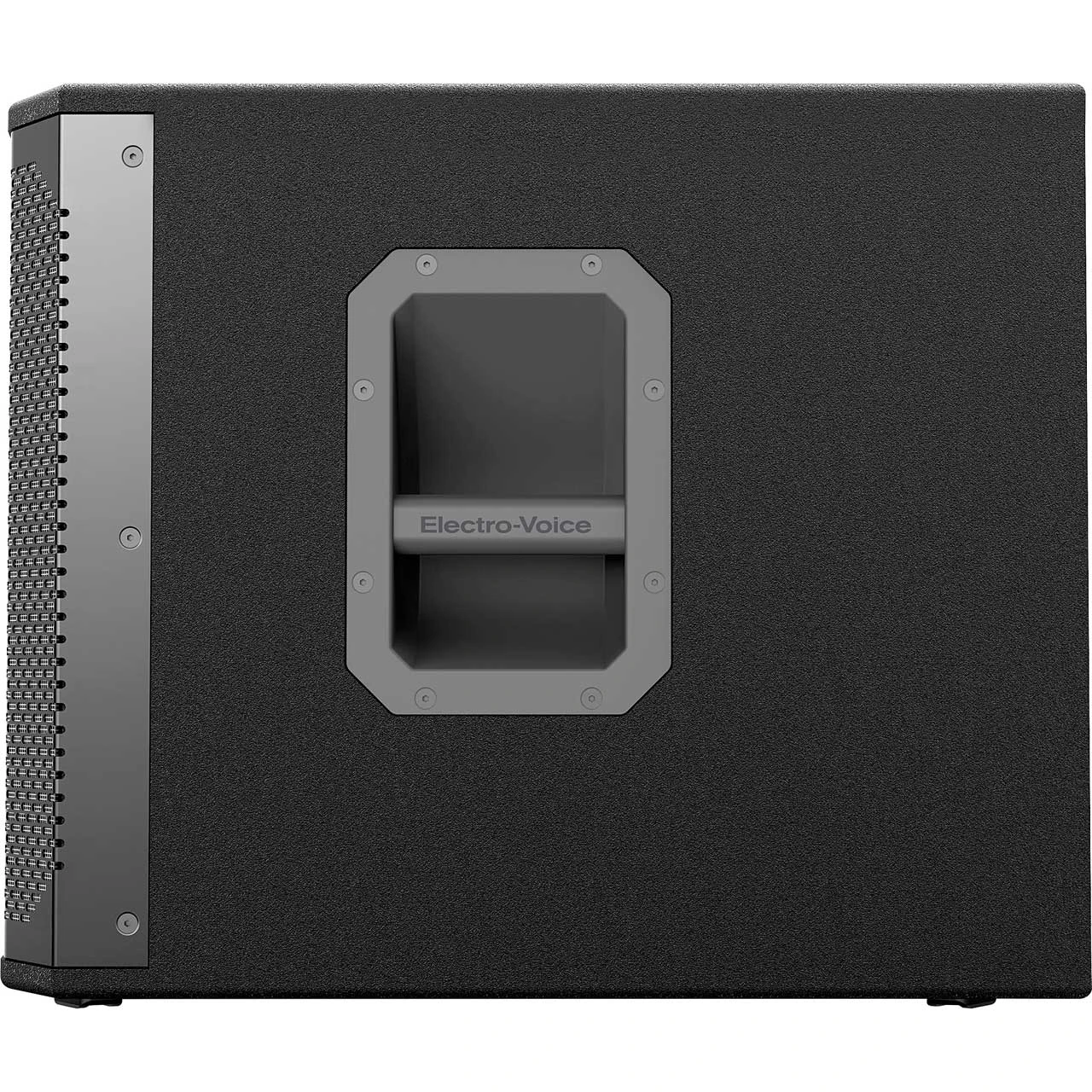

Electro-Voice EKX-15S 15 Inch Passive Subwoofer

Electro-Voice EKX-15S 15 Inch Passive Subwoofer - Image 2

Electro-Voice EKX-15S 15 Inch Passive Subwoofer - Image 3

Electro-Voice EKX-15S 15 Inch Passive Subwoofer

Original price was: $329.00.Current price is: $98.99.

SKU: BWFYA 31068456 Categories: Audio Monitoring, Subwoofers

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

EKX-15S – Overview

EV engineering and innovation working together for maximum sonic impact
The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology – all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

The EKX series features eight models (four powered and four passive), including 12″ and 15″ two-way models and 15″ and 18″ subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.

Ideal for portable and installed applications
Lightweight, compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight M10 threaded mounting points (full-range models), aluminum pole-mounts, and all-metal handles. Subs feature large slot ports for low distortion and excellent bass extension, and are equipped with a metal grille reinforcement bar.

Features:
- 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Large slot ports for low distortion and excellent bass extension.
- Metal grille reinforcement bar (two bars on the EKX-18S).
- M20 threaded pole mount plate.
Specifications:
- Axial Sensitivity: (SPL, 1 W @ 1 m) 95 dB
- Connector Type: Dual NL4
- Coverage: (Nominal -6 dB) H 90 Deg.
- Coverage: (Nominal -6 dB) V 60 Deg.
- Enclosure Material: 15 mm, plywood with EVCoat
- Frequency Response: (-10 dB) 40 Hz – 300 Hz Half Space Measurement
- Frequency Response: (-3 dB) 60 Hz – 100 Hz Half Space Measurement
- Grill: 18 AWG steel with powdercoat
- LF Transducer: EVS-15C 381 mm (15 in)
- Maximum SPL: 133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
- Minimum Impedance: 7.5 Ohm
- Nominal Impedance: 8 Ohm
- Power Handling (Continuous / Peak): 400 W/1600 W
- Recommended High-Pass Frequency: 35 Hz
- Shipping Weight: 31.3 kg (69 lbs)
- Height: 11RU 455 mm (17.91″)
- Width: 530 mm (20.87″)
- Depth: 551 mm (21.69″)
- Weight Net: 24.9 kg (54.9 lbs)
GTIN:

0800549772143
