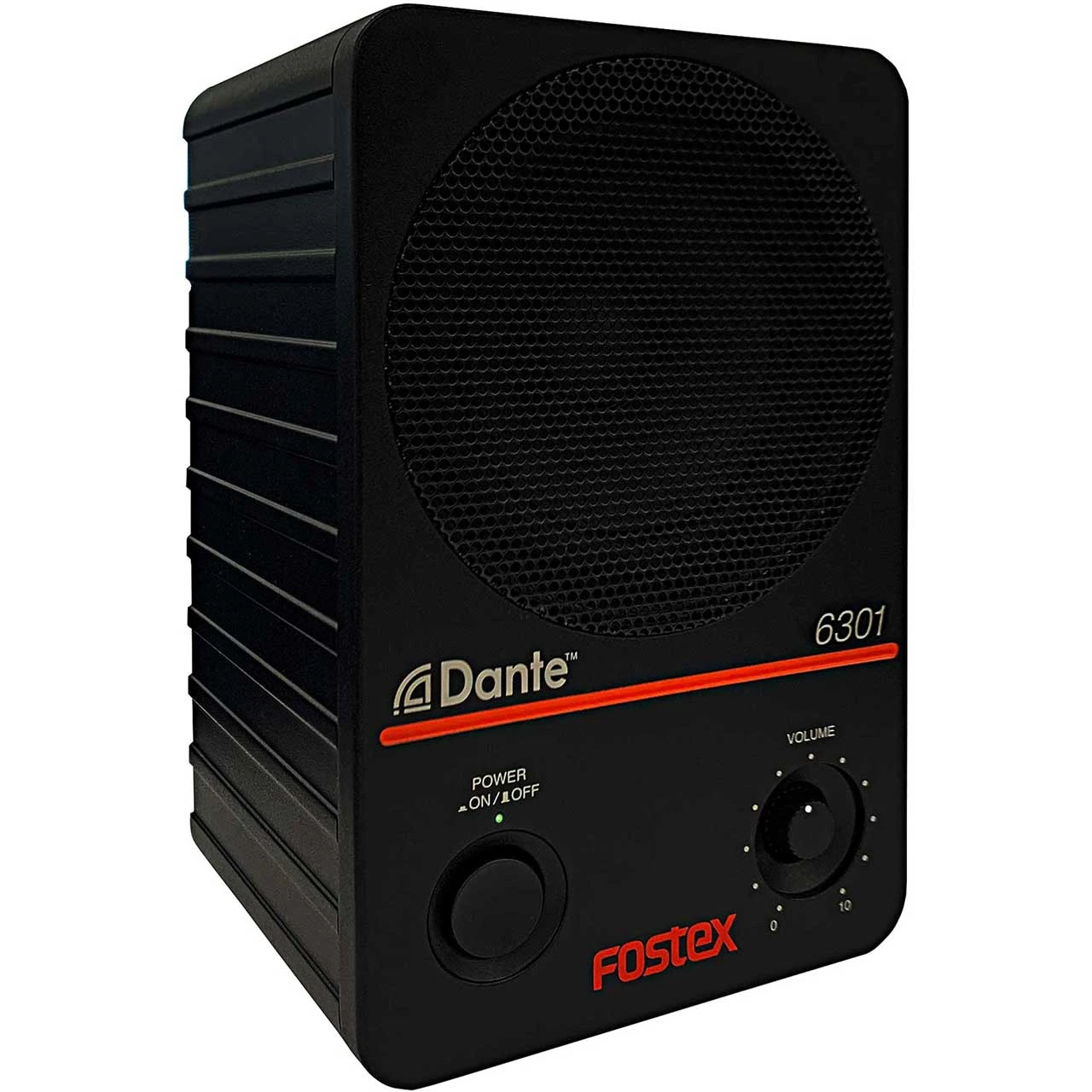

6301DT – Overview
Model 6301-series have been on the market since 1982 as the standard active monitor speaker in broadcast and production facilities. Now we have re-designed the speakers with the latest D-class power amplifier and new driver unit featuring energy saving “auto stand-by” function. The electrically balanced version used to be offered only in North America, but now worldwide.
The industry standard 6301N Active Monitor series now includes the model Dante version : 6301DT.
The new model has the exact physical dimensions as the current 6301N, the 6301DT offers playing back any two channels of Dante network audio signals.
-
Features:
- 20W Class-D power amplifier for higher output level and less power consumption.
- Dedicated 4-inch full range driver for clear audio reproduction.
- RJ45 Dante & 1/4″ TS analog inputs.
- Supports sample rates up to 96kHz via Audinate’s Ultimo chip.

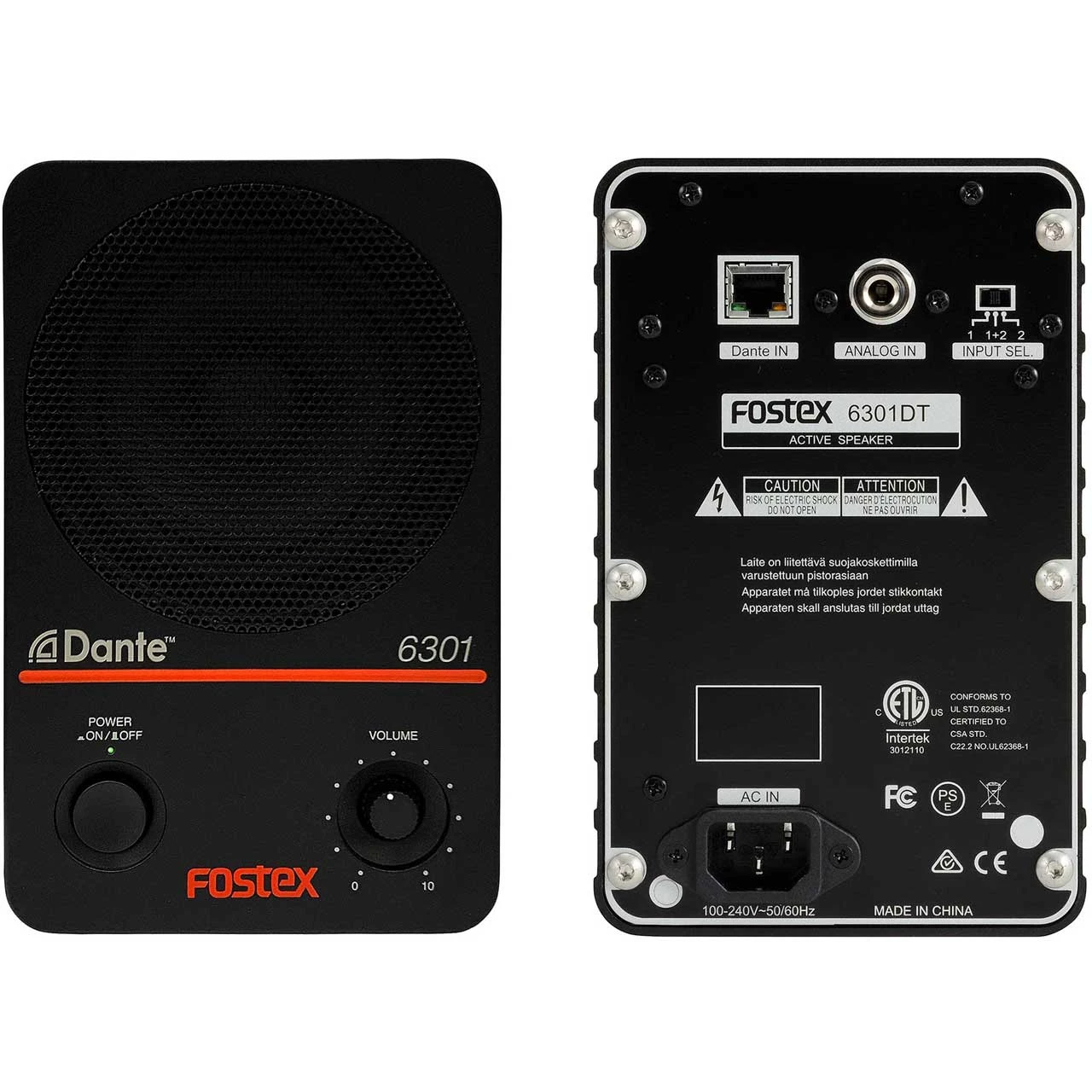

- Two channels of monitoring in one monitor: acts as a two-channel device on the Dante network, with a switch on the back panel to select channel 1, 2 or 1+2 (mixed) for output.
- Ultra-rugged die-cast aluminum enclosure.
- Recessed front-panel knob, switch & speaker grille to prevent inadvertent damage in case of a fall.
- Switching power supply accepts 100 V to 240 V AC.
- Physical dimensions identical to the rest of the 6301N series for easy upgrade.
- Optional EB-6301 mounting bracket allows easy surface-mounting at any angle.
- Outputs either or both of any two-channel digital signals out of Dante network signals adopting Dante Ultimo chip
- Supported sampling frequencies: 44.1/48/88.2/96kHz
- Dante Input 1, Input 2 or Input 1+2 (mixed) can be selected by the switch on the rear panel
-
Specifications:
- Speaker:
- Enclosure Type: Closed
- Unit: 4″ full range
- Frequency response: 70 Hz – 15k Hz
- Sound Pressure Level: 85dB / W (1m)
- Maximum SPL: 98dB
Amplifier Section:
- Connector: 1/4″ TS Phone (unbalanced)
- Input Impedance: 10k ohm or more
- 6301DT Connector: RJ45 (Dante)
- Rated Output: 20W
- Distortion (T.H.D.): 0.05% (1kHz / 1W output)
- Residual Noise: -70dBV or less (NB/NE/NX). -65dBV (DT), -65dBV or less (ND)
- Input Sensitivity: 1/4″ TS phone: -14dBV (0.2Vr.m.s.)
- XLR: +4dBu (1.2Vr.m.s.)
- XLR(Digital): -12dBFS
- Auto Stand-by: Active after approx. 25 min. of continuous input lower than the threshold level
General:
- Dimensions: 4.72 (W) x 7.44 (H) x 4.72 (D) Inches
- Weight: 5.07 Lbs
- Power Requirement: AC 100 – 240V (50/60Hz)
- Power Consumption: 10W (less than 0.5W in stand-by mode)
-
Item Includes:
- 1x Fostex 6301 DT Speaker
- 1x Power Cord
-
Warranty:
- Limited 1-Year Warranty
-
GTIN:
0636827308847
