AS-1200-D – Overview

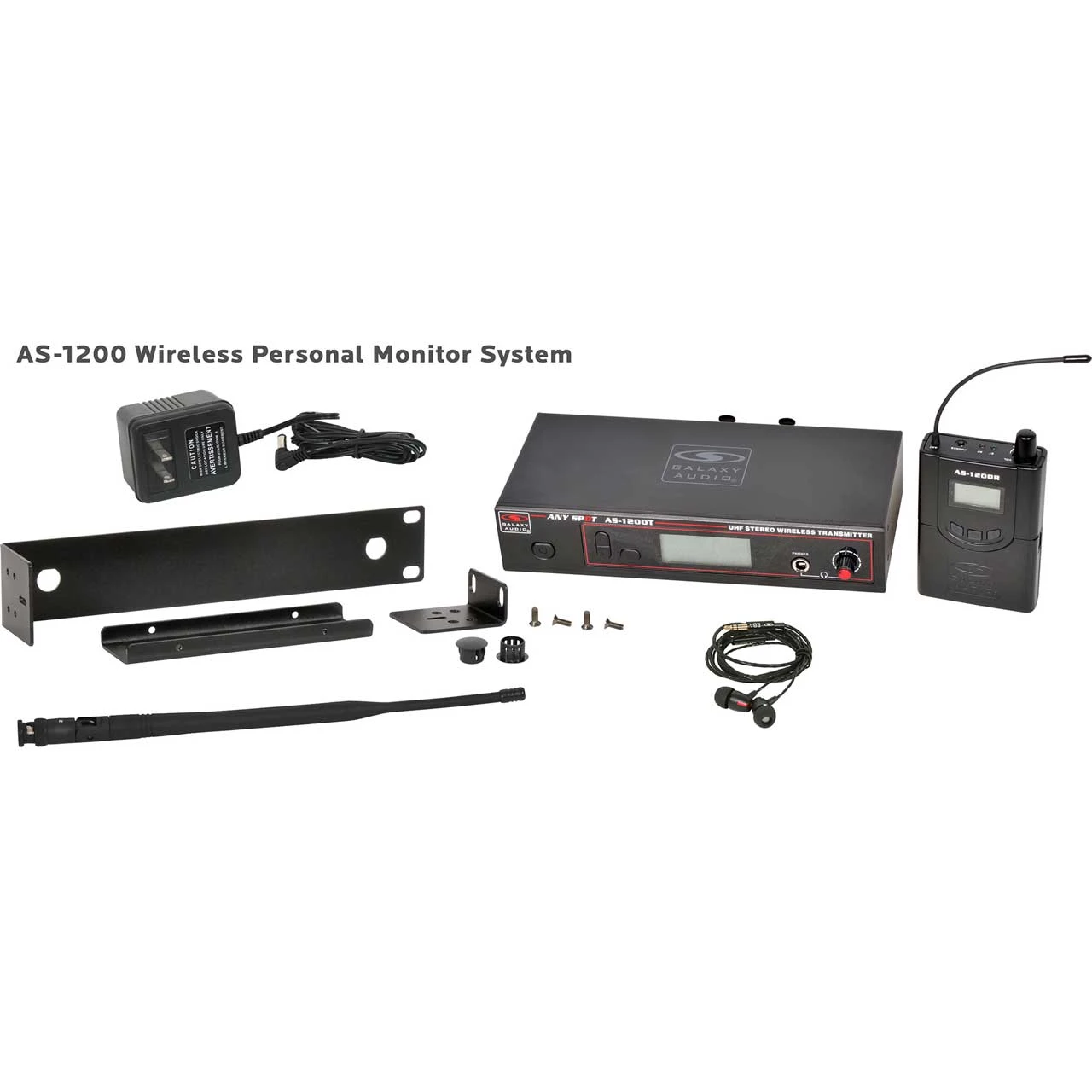

Galaxy Audio AS-1200-D is a stereo wireless personal in-ear monitor system part of the 1200 Series with 210 Selectable UHF Frequencies. This specific CODE D has a frequency of 584MHz – 607MHz.
Reduce stage volume, avoid cumbersome stage monitors, and eliminate needless wire clutter with Galaxy Audio’s new AS-1200 Wireless Personal In-ear monitors. The AS-1200 lets you enjoy freedom of movement with a range of up to 300ft. The 210 selectable UHF frequencies offer stereo monitoring and dependable performance even in challenging RF environments. The Galaxy Audio AS-1200 Wireless Personal In-ear monitors sends your mix directly to your ears while isolating stage noise, resulting in a more accurate and precise representation of your music regardless of your position on stage. The AS-1200 is built on the same trusted and reliable wireless in-ear platform Galaxy Audio has been providing musicians for decades.

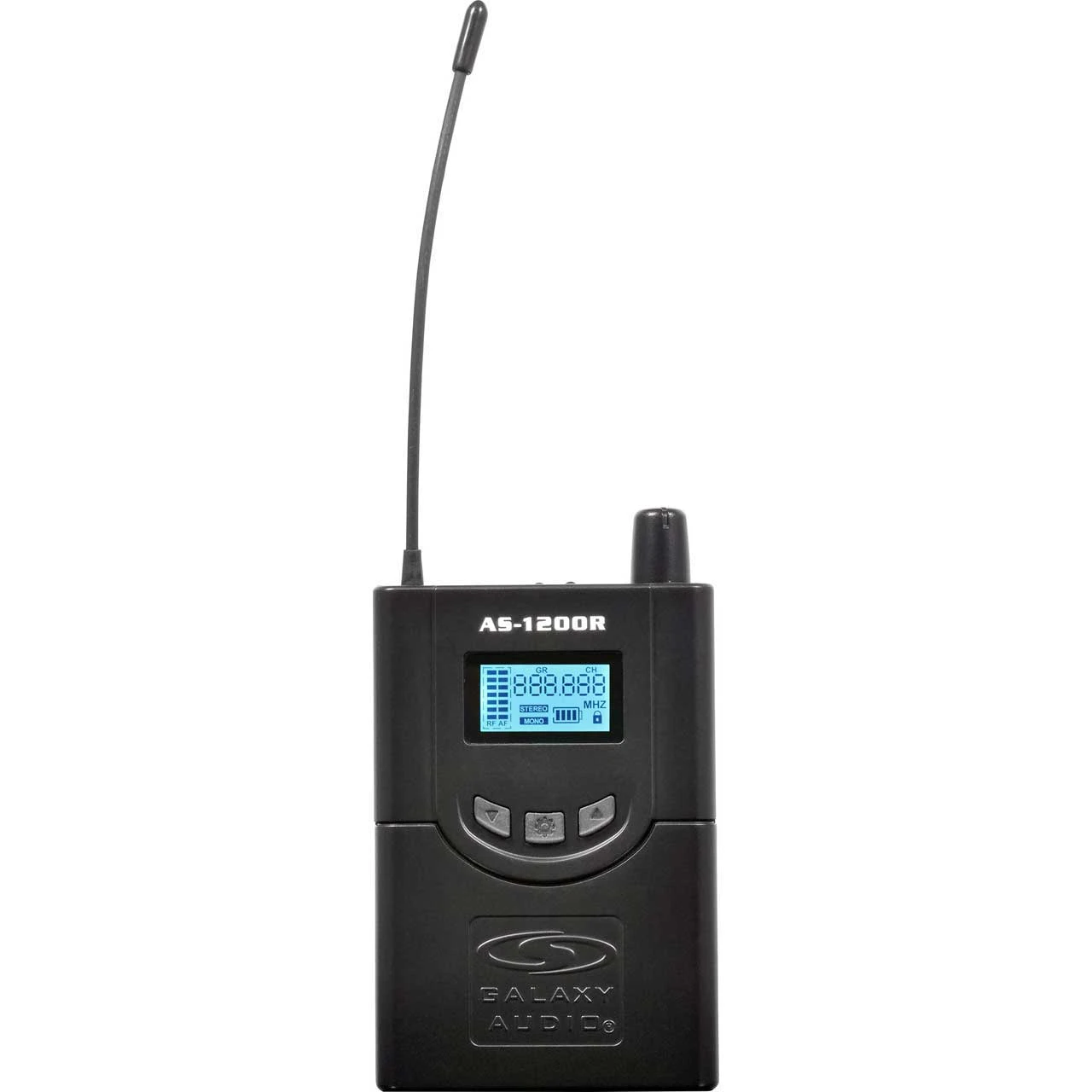

The AS-1200R receiver offers a backlit LCD display with Lock, Channel Number, Stereo, Mono, Frequency, RF/AF Level and 4 Bar Battery Indicator, plus an RF and Stereo indicator LED on top of the body pack. Featuring 100mW stereo output, the AS-1200R delivers more than enough gain for any live stage performance. The included EB4 ear buds feature titanium drivers, extended bass response and aluminum alloy construction. Upgrade to Galaxy Audio EB6 or EB10 ear buds or use your custom fit or favorite set of ear buds. The AS-1200 accepts all ear buds that utilize the 1/8- inch (3.5 mm) stereo headphone jack.

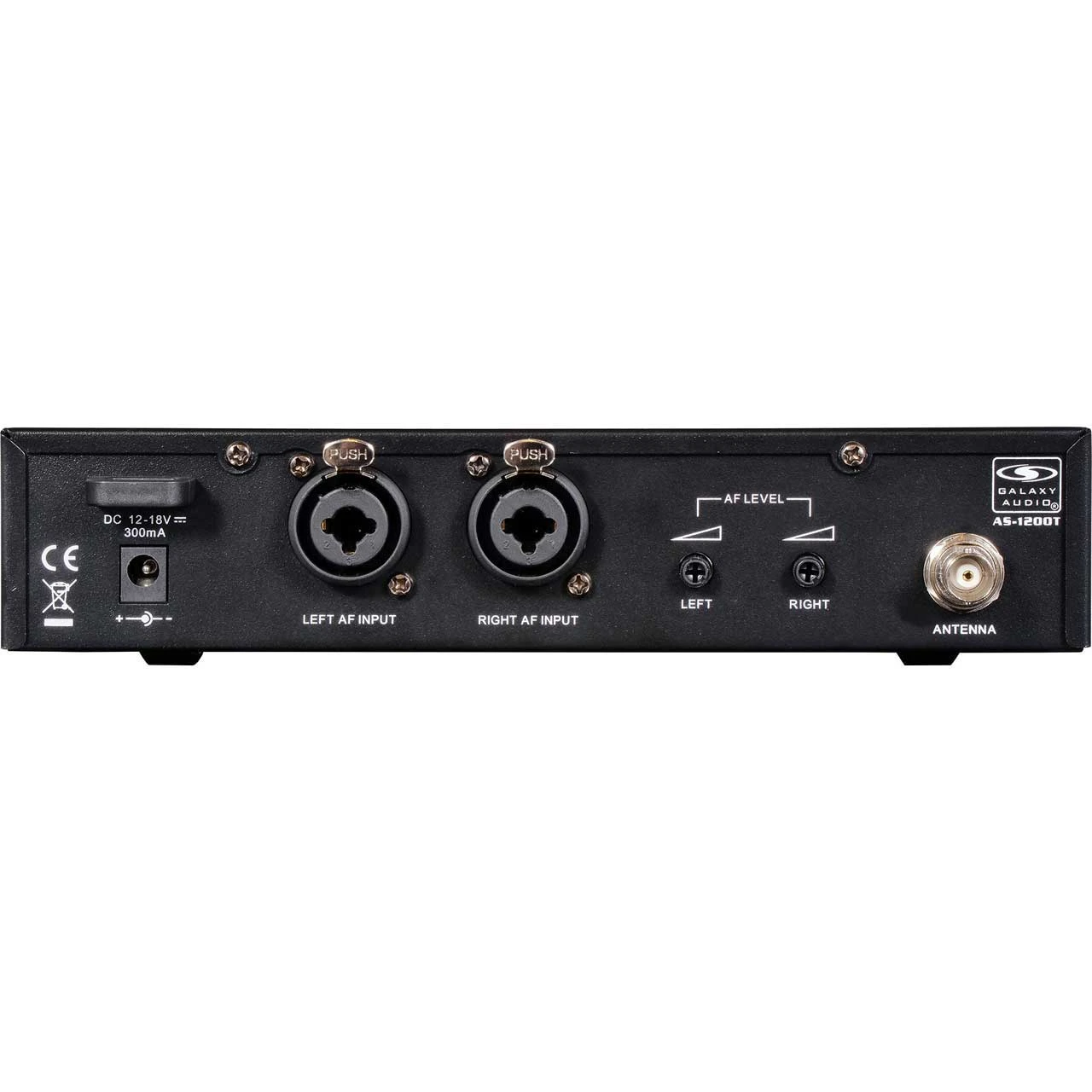

The AS-1200T transmitter incorporates a backlit LCD that displays lock on/off, L/R AF levels, group/channel, frequency number, and mono/stereo mode. AS-1200T front controls include a settings button, up/down select buttons, and volume control for the front facing headphone output. The back panel features line level right and left XLR/1/4″ combo inputs and right/left AF level controls. A Single/Dual Rack mount kit and a BNC antenna is included.
-
Features:
- AS-1200 System Features
- 210 Selectable UHF Frequencies
- Backlit LCD (Displays Group, Channel Number, Stereo, Mono, Frequency and Right, Left AF Level, Lock)
- Multiple Receivers can be used with 1 Transmitter
- Stereo or Mono Transmission
- Single/Dual Rack Mount Kit Included
- 300′ Range
- EB4 Ear Buds Included
- An unlimited number of receivers may be added at any time.
AS-1200T Transmitter
- 210 Selectable UHF Frequencies
- Transmits in Stereo or Mono
- Backlit LCD Display (Displays Group, Channel, Frequency, Stereo, Mono, Right/Left AF Level, and Lock)
- Line Level x 2-XLR/¼” Combo Jacks
- AF L/R Indicator
- RF Output 10 mW
- Detachable BNC Antenna Included

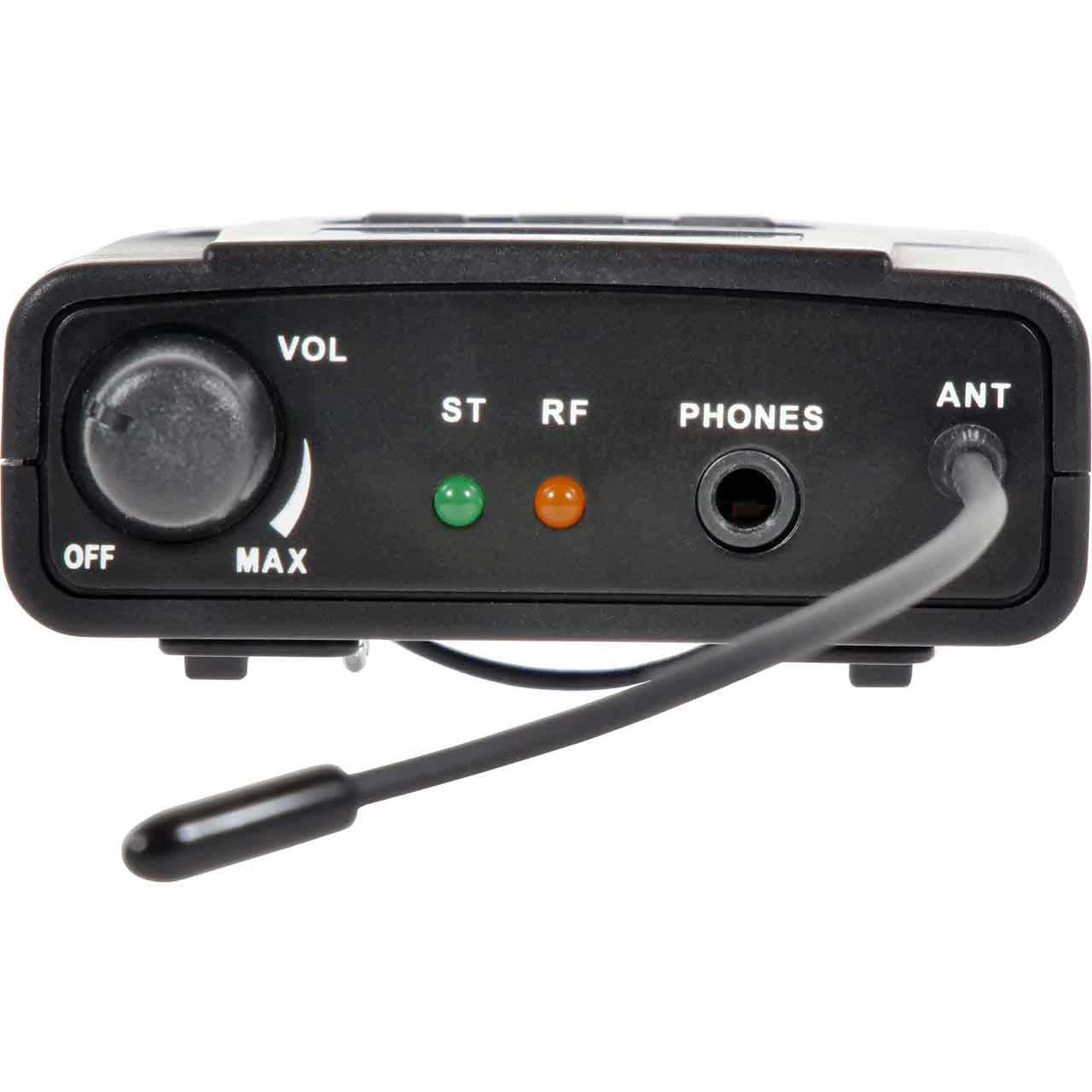

AS-1200R Receiver
- Built-in Limiter
- >65 mW x 2 Earphone Output with Volume Control
- Backlit LCD Display (Displays Group, Channel, Frequency, Stereo, Mono, 4 Bar Battery Indicator, RF/AF Level, and Lock)
- 4 Bar Battery Life Indicator
- RF and Stereo Indicators
- Output Connector 1/8″ (3.5mm) Stereo
- EB4 Ear Buds Included
- Powered by 2 AA Batteries Alkaline or Rechargeable
- 3.2 oz (90 g)
-
Specifications:
- AS-1200 System
- Band: UHF
- Frequency Range: CODE D 584 MHz – 607 MHz
- Frequencies: 210
- Transmitter Output Level: 10 mW
- Operating Range: Under Typical Conditions 300′ (92m)
- Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
- Audio Frequency Response: 70Hz – 13.5Khz (±3db)
- Total Harmonic Distortion: 1% @ 1kHz
- Signal to Noise: >80dBA
- Maximum Deviation Range: ±15kHz
- Dynamic Range: >88dB A-weighted
- Operating Temperature: Range 14°F to 122°F (-10°C to 50°C)
- Note: battery characteristics may limit this range
AS-1200T Transmitter:
- Main Frame Size: EIA STANDARD 1/2 U
- Modulation Mode: FM Stereo Modulation
- RF Output: 10 mW
- Max Audio Input Level: +6dBV
- Gain Adjustment Range: 40dB
- Input Impedance: 100kΩ
- Controls: Headphone Volume, Up/Down, Settings, and Power Button
- Audio Input: Line Level X 2, XLR / 1/4″ Combo Jack
- Audio Output: 1/4″ Headphone Out
- XLR Input: Impedance balanced
- Pin 1: Ground (cable shield)
- Pin 2: Audio +
- Pin 3: No Audio –
- Transmitter Antenna: Detachable 1/2 Wave BNC Antenna
- Dimensions: 1.5″ x 8.3″ x 3.78″ (38 x 212 x 96 mm) (HxWxD)
- Weight: 22 oz. (635g)
- Power Requirements: 12-18 V dc at 300mA supplied by external power supply
AS-1200 Receiver:
- Audio Output Level: >65mW x 2 Earphone Out with Volume Control
- Sensitivity: -92dBm at 30dB
- Stereo Separation: 40dB (at 1kHz)
- Output Connector: 1/8″ (3.5 mm) Stereo Earphone Connector
- Controls: Volume, Up, Down, Settings
- Indicators: LCD Display, Stereo LED, RF LED
- Dimensions: 3.73″ x 2.54″ x 1″ (95 x 65 x 25 mm) (HxWxD)
- Weight: 3.2 oz (90 g) without batteries
- Power Requirements: 2 “AA” size alkaline or rechargeable batteries
- Battery Life: About 5 hours (alkaline)
-
GTIN:
0691281017131
| Frequency | 584 MHz – 607 MHz, 518 MHz – 542 MHz, 470 MHz – 494 MHz |
|---|
