Genelec 7382AP SAM Studio Subwoofer – 3×15 Inch Drivers/2500W/2.1 Analog XLR Inputs Single Stereo AES/EBU In/Out

Original price was: $391.00.Current price is: $95.99.

SKU: BWFYA 5962501 Categories: Audio Monitoring, Subwoofers

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

7382AP – Overview

Combining power and clarity with flexible calibration and bass management features, the Genelec 7382 is designed for use in recording studios, film mixing facilities, mastering suites, post-production houses, EDM playback and premium home theatres, and integrates perfectly into any system from simple stereo to 40+ channels of immersive audio.

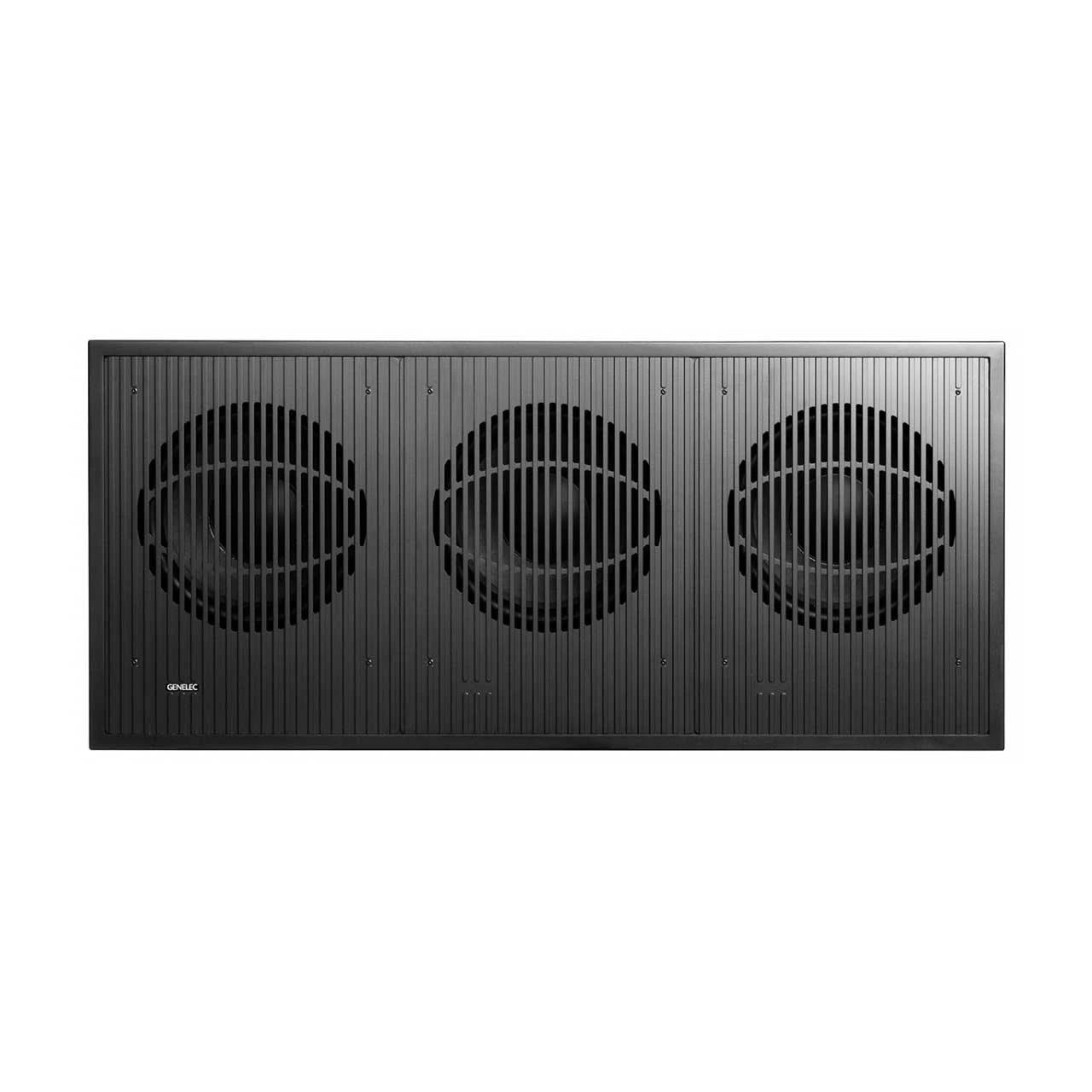

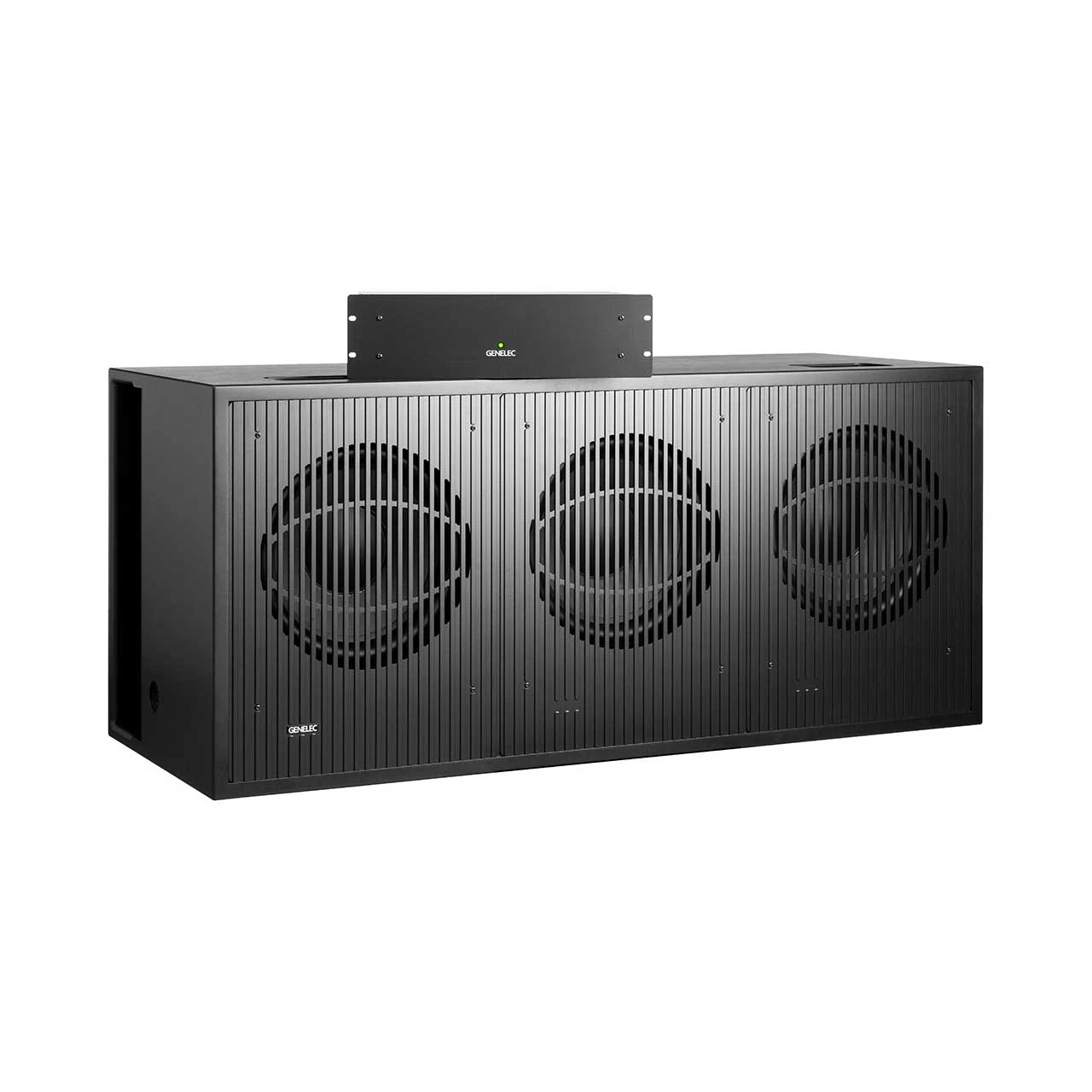

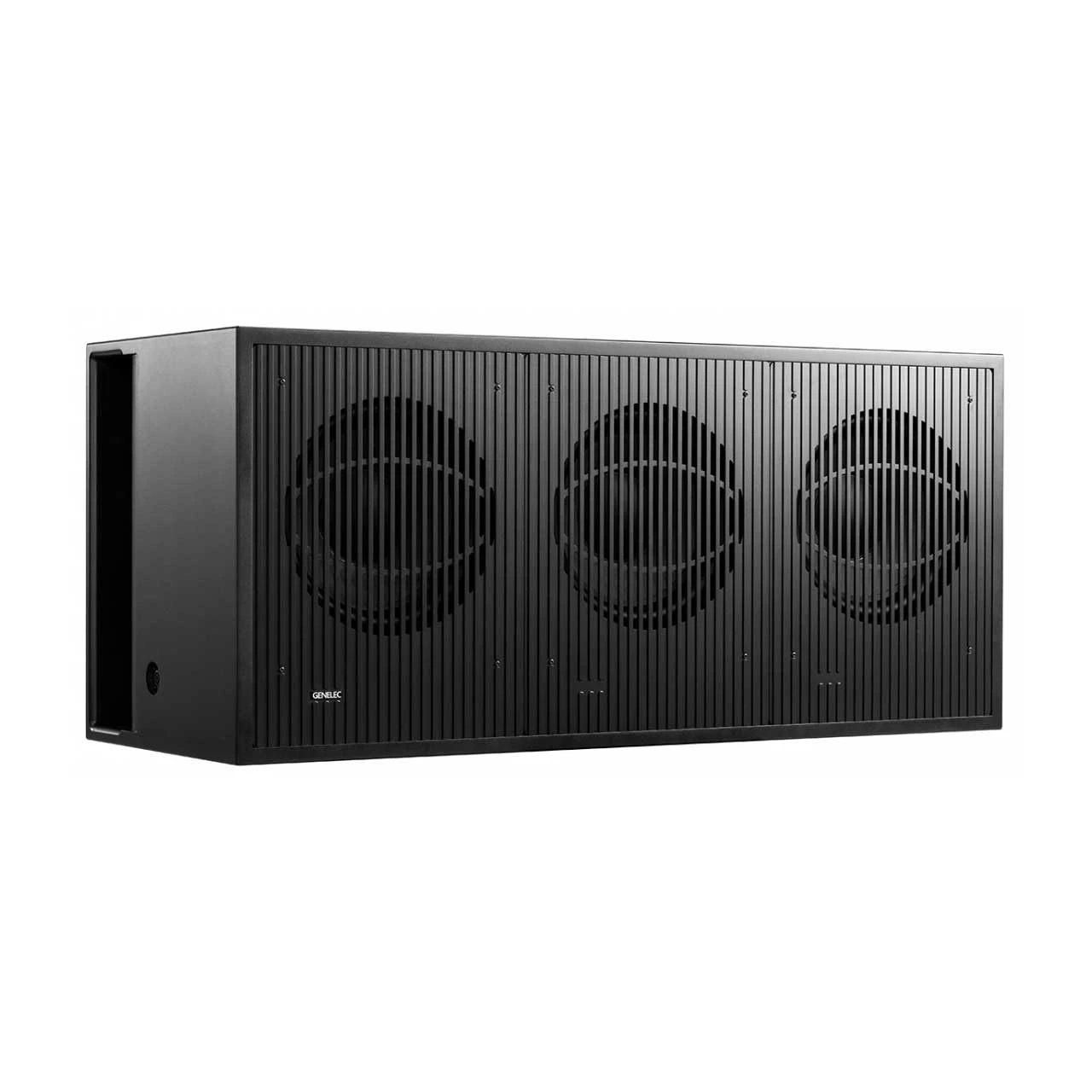

The 7382 enclosure contains three 15-inch custom-designed high-performance woofers driven by a powerful Class D amplifier section and a laminar flow bass reflex port running along its entire rear wall. This combination enables high SPL, low frequency cutoff and low distortion performance – resulting in precise bass articulation even at the very lowest frequencies.

As part of the growing SAM family of Genelec monitors and subwoofers, the 7382 tightly integrates with GLM software, via which it can be configured, calibrated and controlled. GLM offers control of bass management, solves issues of subwoofer placement in unpredictable rooms, and even allows the creation of entire arrays of Genelec subwoofers where required.

GLM also doubles as a comprehensive Mac or PC-based monitor controller, allowing you to calibrate your listening level to accepted loudness standards, switch between formats, monitoring systems and primary listening positions – and much more.

Please note: In order to enable GLM software to integrate with your SAM subwoofer, the Genelec network adaptor kit (GNC-8300-601) is required.

Features:
- Key Technologies
- Smart Active Monitor (SAM™) Systems
- Bass Management System
- Optimized Amplifiers
- Protection Circuitry
- Intelligent Signal Sensing (ISS™) Technology
- Active Crossovers
Specifications:
- Lower cut-off frequency: -6 dB 15 Hz
- Upper cut-off frequency: -6 dB (main channel/LFE) 100 Hz/120 Hz
- Drivers: 3 x 381 mm (15 in)
- Harmonic distortion: at 1 m on axis in half space, 30 to 85 Hz; 2nd: = 1% @ 105 dB SPL; 3rd: = 1.5% @ 105 dB SPL
- Maximum short term sine wave SPL output averaged from 30 to 85 Hz,
- measured in half space at 1 meter: = 129 dB SPL
- Maximum peak SPL output with random pink noise, measured in half space at 1 meter (Long term SPL output is limited by driver unit protection circuitry): ≤ ≥ 133 dB SPL
- Self generated noise at 1 m on axis (A-weighted): 5 dBA
- Dimensions (H x W x D): 24 5/8 inch x 55 1/8 inch x 21 15/16 inch (625 x 1400 x 558 mm)
- Subwoofer enclosure: 3U 132 x 483 (front plate), 425 (casing) x 286 mm

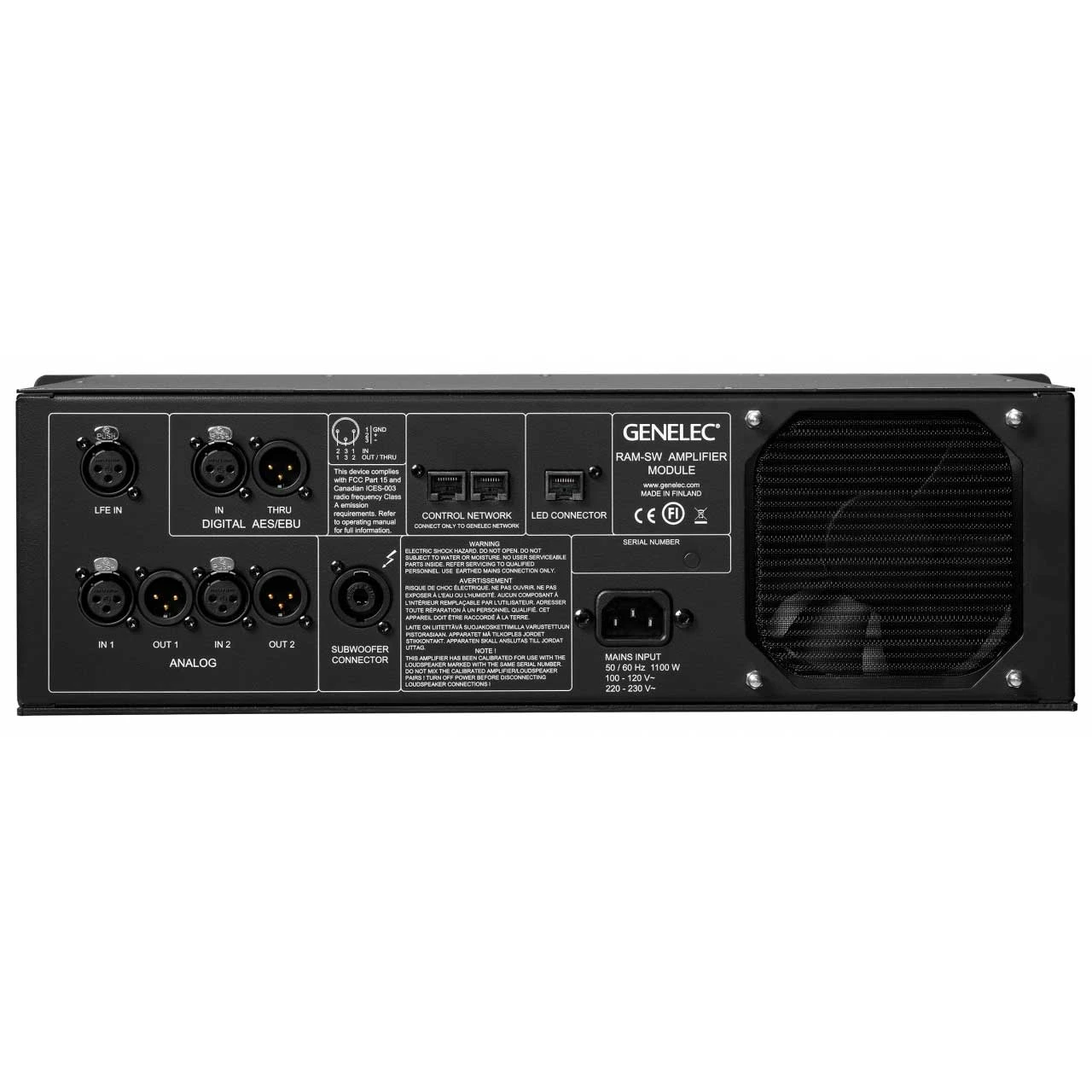

- RAM-SW amplifier unit: 3U 53/16 x19 (front plate), 161/4 (casing) x 111/4 in
- Weight Subwoofer enclosure: 320 lb (145 kg)
- Weight RAM-SW amplifier unit: (25 lb (11.3 kg )
  Amplifier Section
- Short term amplifier output power (Long term output power is limited by driver unit protection circuitry): 2500 W
- Amplifier system THD at nominal output: 0.01%
- Mains voltage: 100-240 VAC 50/60 Hz
- Power consumption: Standby, ISS active: 13 W; Idle: 22 W; Full output, peak: 1500 W
  Signal Processing Section
- Signal connectors: 2 channel analog IN/OUT; Analog LFE IN; Digital IN/OUT
- Analog signal input connectos XLR female, balanced 10 kOhm: pin 1 gnd, pin 2 non-inverting, pin 3 inverting
- Maximum analog input signal: +24.0 dBu
- Analog input sensitivity (100 dB SPL at 1 m): -6 dBu
- Digital signal input connector XLR female 110 Ohm: AES/EBU Single Wire
- Digital signal output / Thru connector XLR male 110 Ohm: AES/EBU Single Wire
- Digital audio input: Word length: 16 – 24 bits; Sample rate: 32 – 192 kHz
- Digital input sensitivity (100 dB SPL at 1 m): -30 dBFS
- Positive input gain selection (GLM control): +6, +12, +18 dB

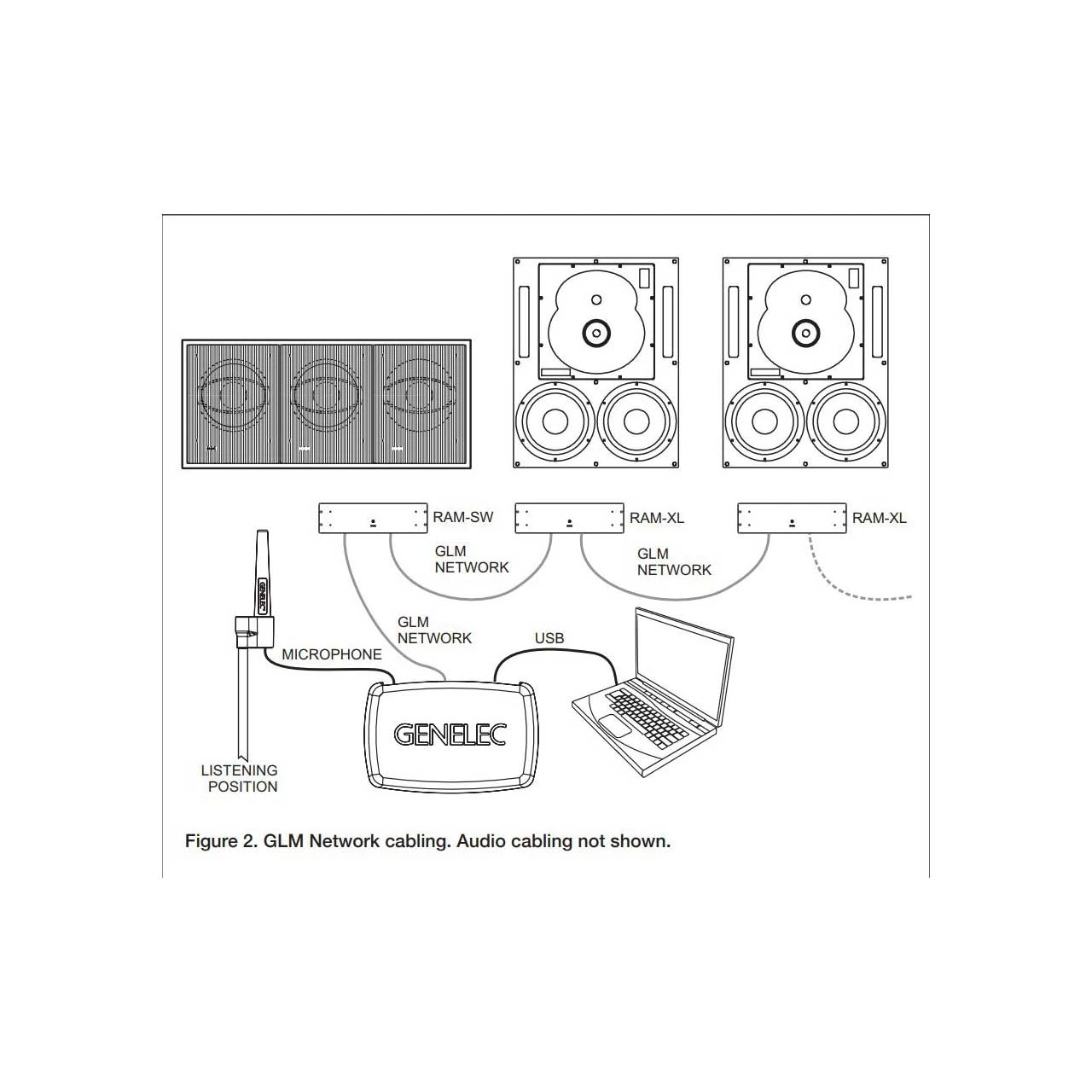

- Control network: Type: Proprietary GLM network; Connection: 2 RJ45, CAT5 cables
- GLMTM software frequency response adjustment parametric notch filters: 20
- System calibration: Genelec GLM AutoCal™, GLM manual
- Crossover setting in subwoofer’s input/output channels: GLM control, input low pass selectable 50 – 100 Hz, output no filtering
- LFE cutoff: 120 Hz
- Midband rejection >400Hz: ≥ 50 dB
- Phase matching control: 15° steps with GLM control
Item Includes:
- Individually calibrated RAM-SW amplifier unit
- Mains cable
- 10 m (33.3 ft) Speakon signal cable
- One 5 m GLM network cable
- Operating manual
Warranty:
- 2-Year Warranty
GTIN:

6438128125963
