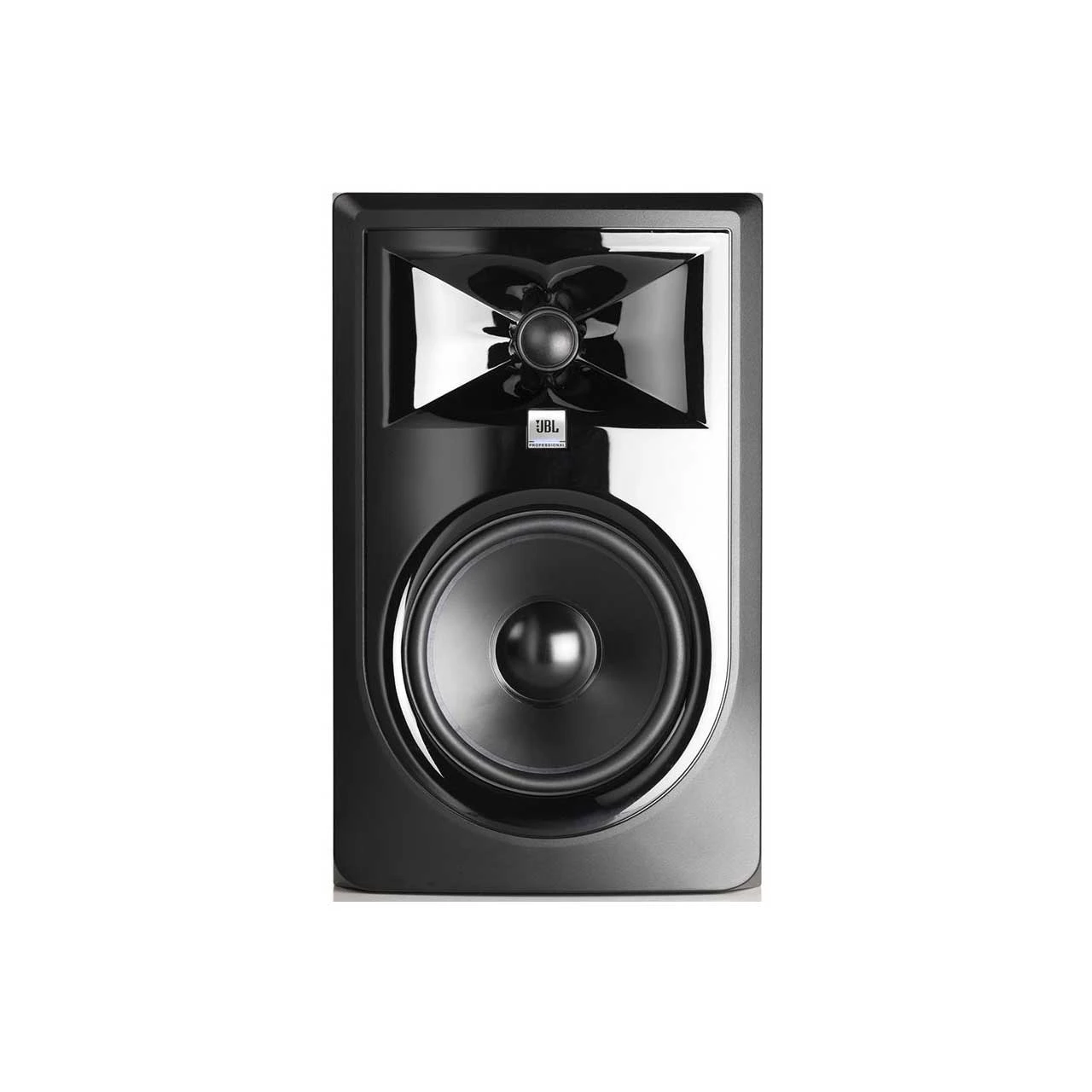

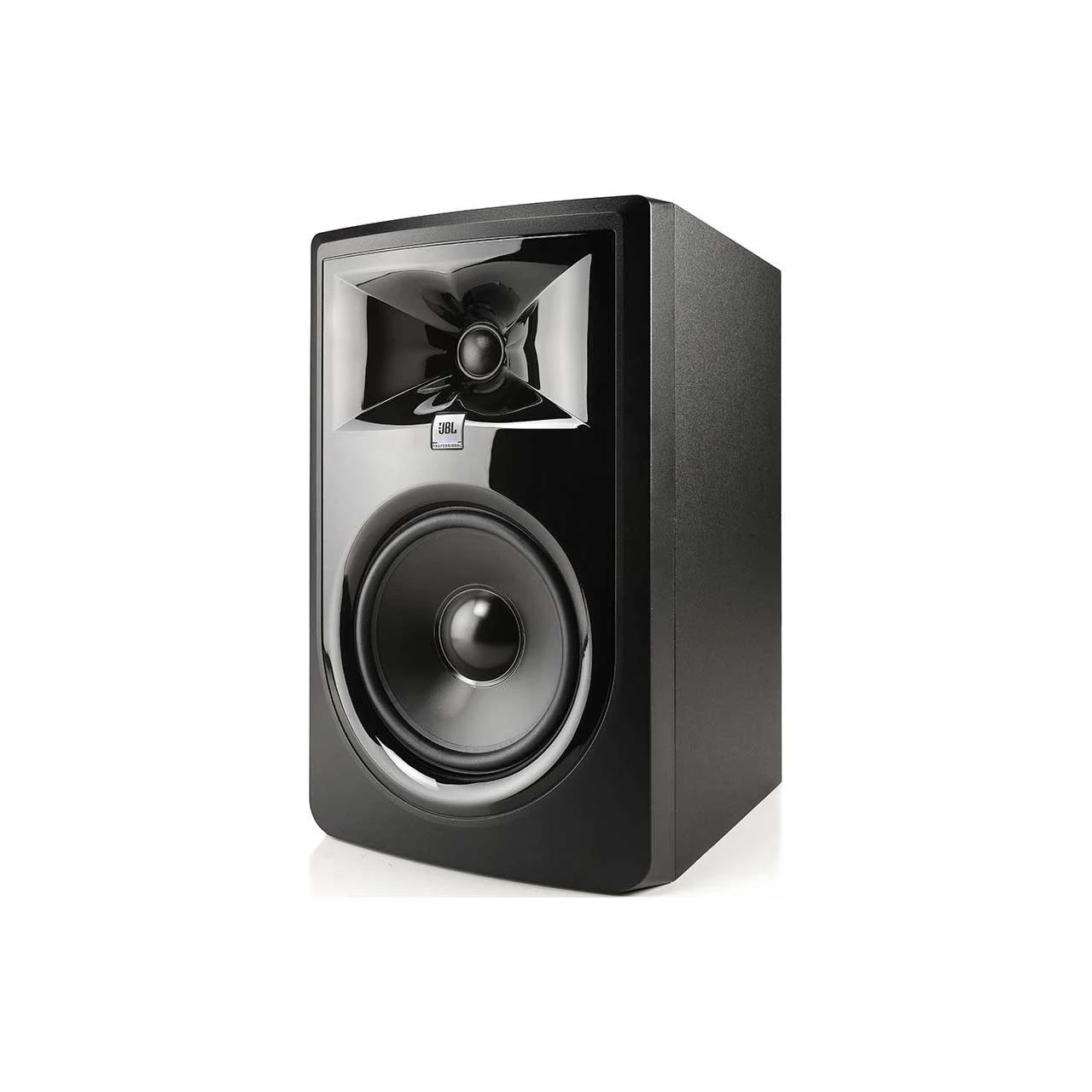

JBL 306P MkII Powered 6.5-Inch Two-Way Studio Monitor

306PMKII – Overview

• Features:

  • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
  • Next-generation JBL transducers for optimized transient response and improved linearity
  • Patented Slip StreamT low-frequency port for superior bass performance at all playback levels
  • Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
  • New Boundary EQ settings compensate for low frequency variants introduced by the environment
  • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
  • Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
  • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
  • Strenuous JBL 100-hour full-power test ensures years of reliability
  • Sleek, modern design provides a visual upgrade to any studio


• Specifications:

  • LF Driver Size: 165mm (6.5″)
  • HF Driver Size: 25mm (1″)
  • HF Driver Type: Soft dome
  • Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
  • Input Sensitivity (-10dBV Input): 92dB / 1m
  • Power Configuration: Bi-amplified
  • HF Driver Power Amp: 56W, Class-D
  • LF Driver Power Amp: 56W, Class-D
  • Frequency Response (±3dB): 47Hz – 20kHz
  • Frequency Range (-10dB): 39Hz – 24kHz
  • Low Frequency Extension (-10dB): 39Hz
  • Maximum Continuous SPL: 92dB
  • Maximum Peak SPL: 110dB
  • Maximum Peak Input Level (-10dBV / +4dBu): +6dBV / +20.3dBu
  • System Distortion Criteria: 10% THD at maximum output with full compressor / limiter engagement
  • Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; 1% THD @ 1kHz, full rated output
  • Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
  • Coverage (Horizontal x Vertical): 120° x 90°

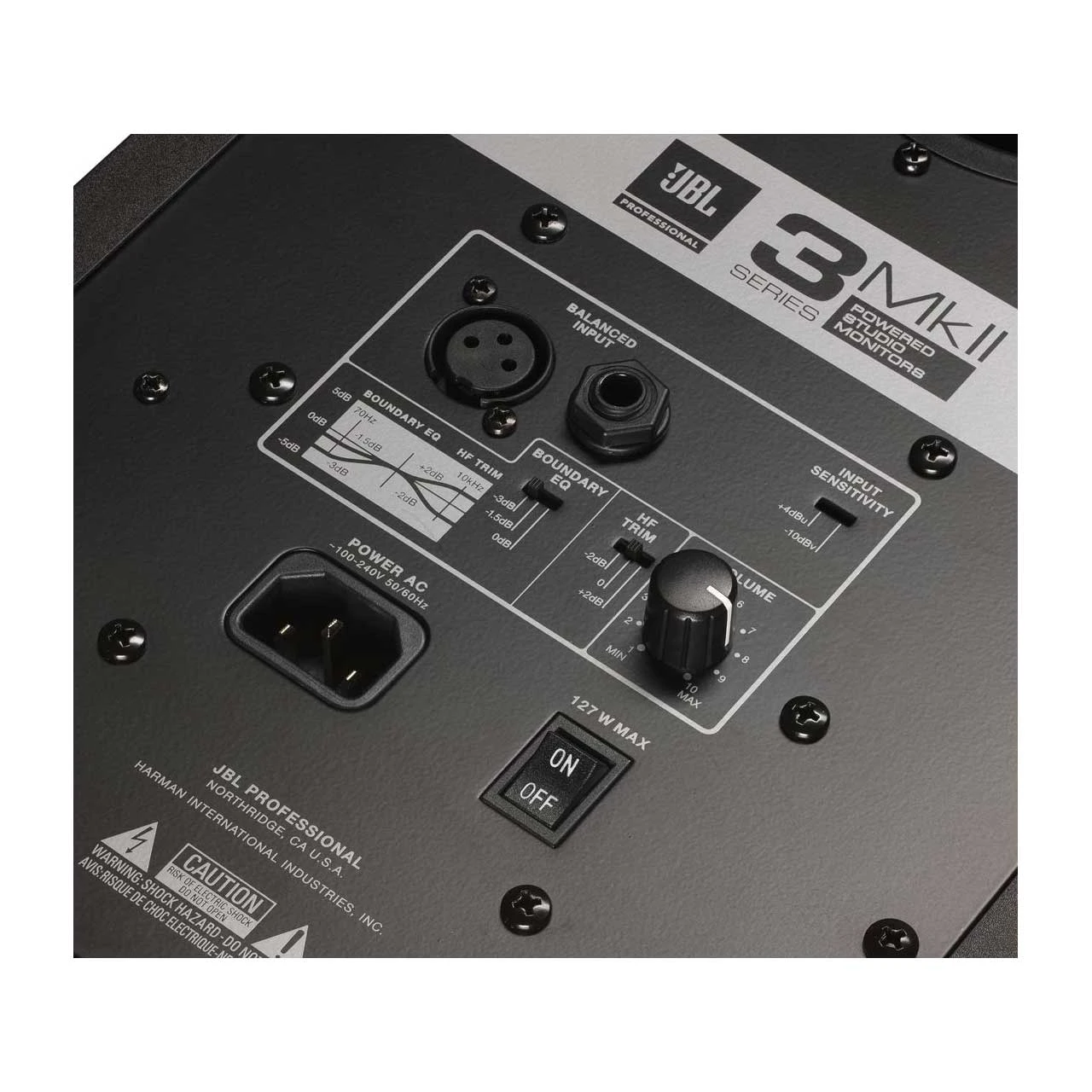

  • Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
  • HF Trim Control: -2dB, 0dB, +2dB
  • Boundary EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
  • AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz
  • Enclosure Type: Ported
  • Enclosure Construction: 15mm MDF
  • Enclosure Finish: Matte black PVC
  • Baffle Construction: Injection-molded structural ABS
  • Cabinet Dimensions (H x W x D): 361 x 224 x 282mm (14.2″ x 8.8″ x 11.1″)
  • Display Carton (H x W x D): 408 x 285 x 328mm (16.1″ x 11.2″ x 12.9″)
  • Shipping Carton (H x W x D): 418 x 292 x 338mm (16.5″ x 11.5″ x 13.3″)
  • Net Weight: 6.1 kg (13.42 lbs)
  • Shipping Gross Weight: 7.25 kg (15.95 lbs)


• GTIN:

  0691991007712
