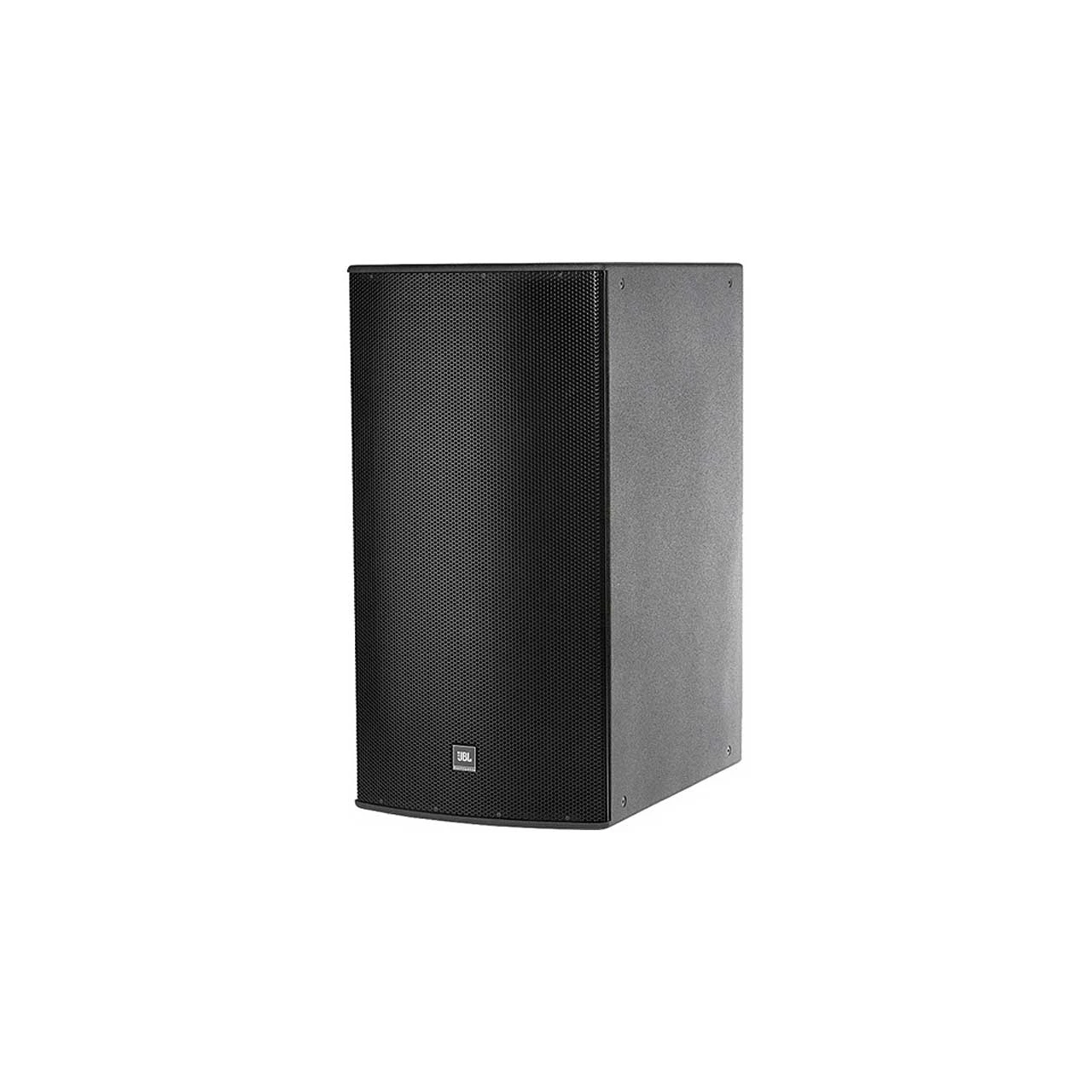

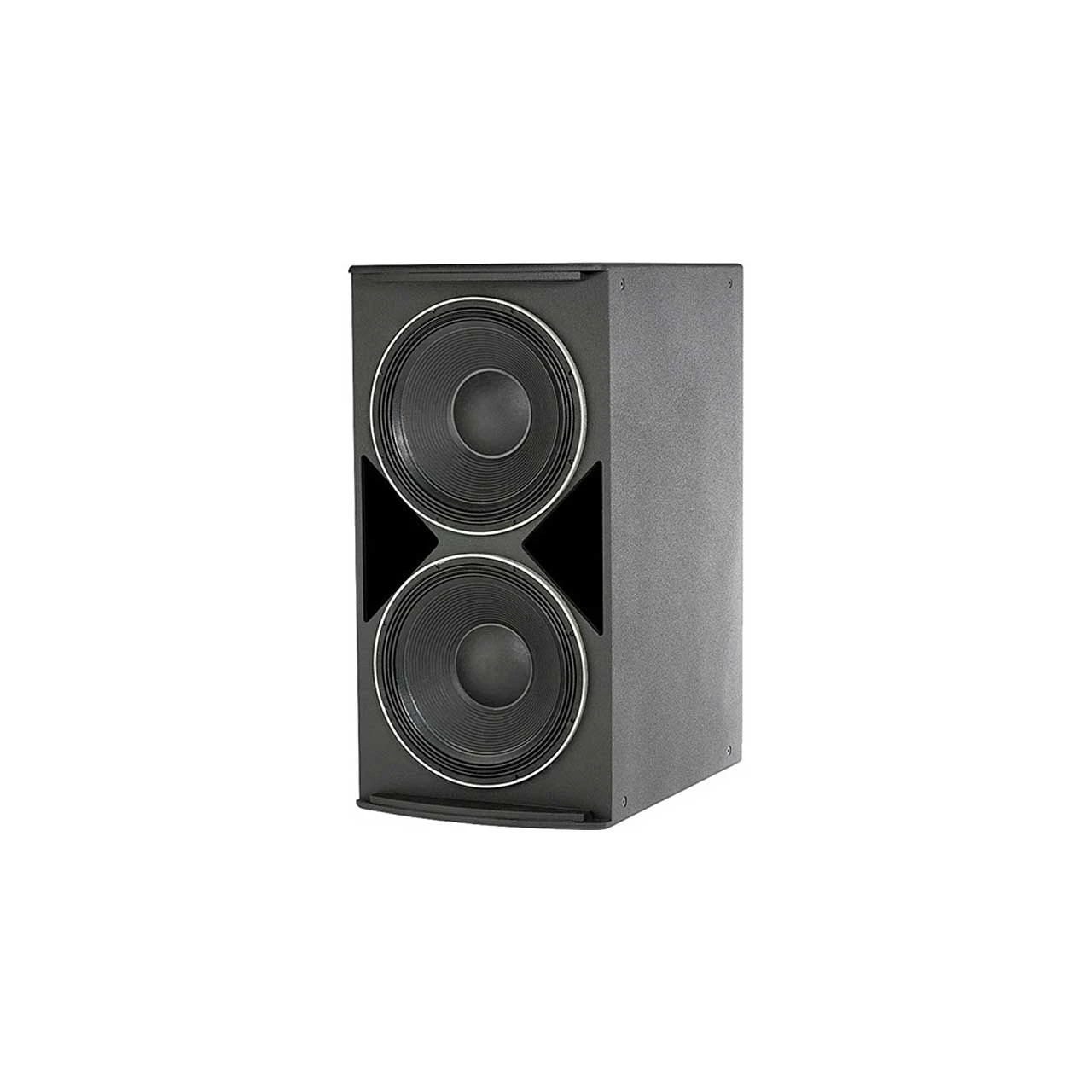

JBL ASB7128 Ultra Long Excursion High PowerDual 18 Inch Subwoofer

ASB7128 – Overview

• Features:

  • 2 x 2269H 18″ Differential Drive dual voice coil dual gap, neodymium magnet transducers
  • 4000 watts continuous pink noise, 16000 watts peak power handling capacity
  • Ultra Long Excursion
  • Large vent area for high output with low distortion
  • Parallel/Discrete switchable input mode
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products


• Specifications:

  • Frequency Range (-10 dB): 20 Hz – 1 kHz
  • Frequency Response (± 3 dB): 25 Hz – 1 kHz
  • Transducer Power Rating: 4000 W (16000 W peak), 2 hrs.
  • Input Modes: Drivers Parallel / Drivers Discrete
  • Long-Term System Power Rating: 2400 W (9600 W peak), 100 hrs.
  • Maximum SPL (1m): 25 Hz – 200 Hz: 135 dB-SPL cont avg. (141 dB peak)
  • System Sensitivity: 25 Hz – 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m
  • Nominal Impedance: 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
  • Low Frequency Driver: 2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive, VGC drivers
  • Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
  • Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
  • Finish: Black DuraFlex finish.
  • Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
  • Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
  • Dimensions (HxWxD vertical cabinet orientation): 43.0″ x 22.0″ x 32.1″
  • Net Weight: 158.5 lb


• GTIN:

  0691991011832
