F388 2-Q – Overview

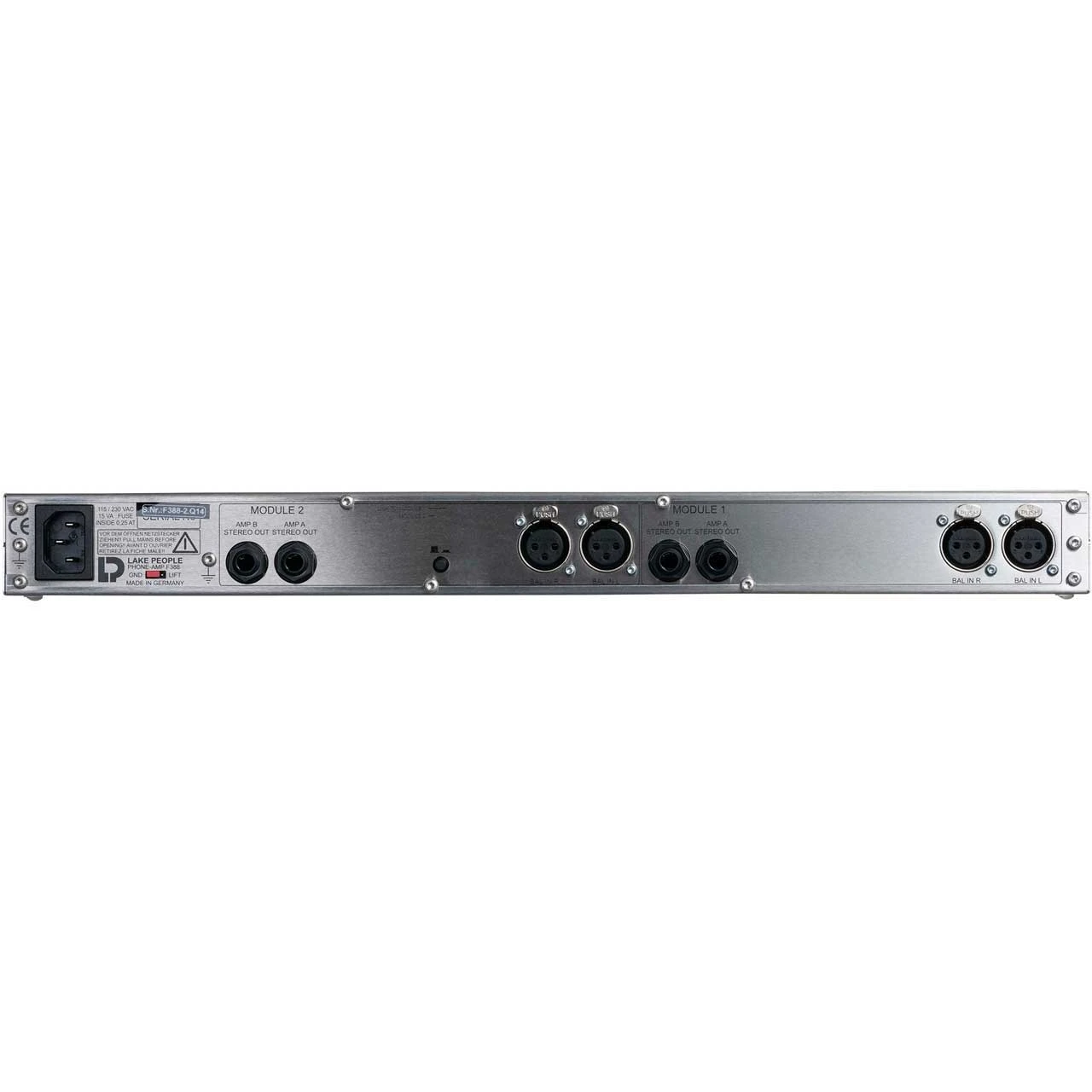

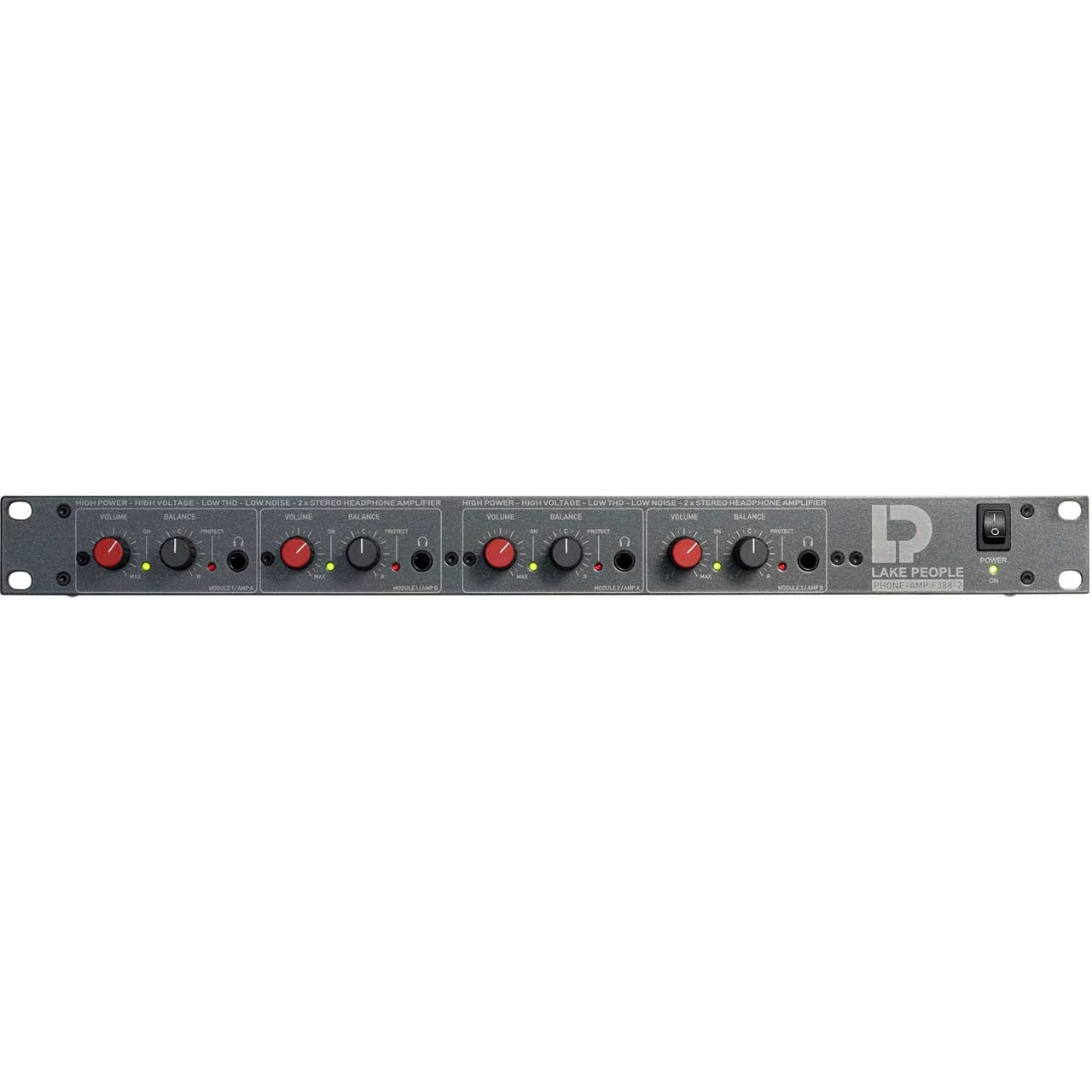

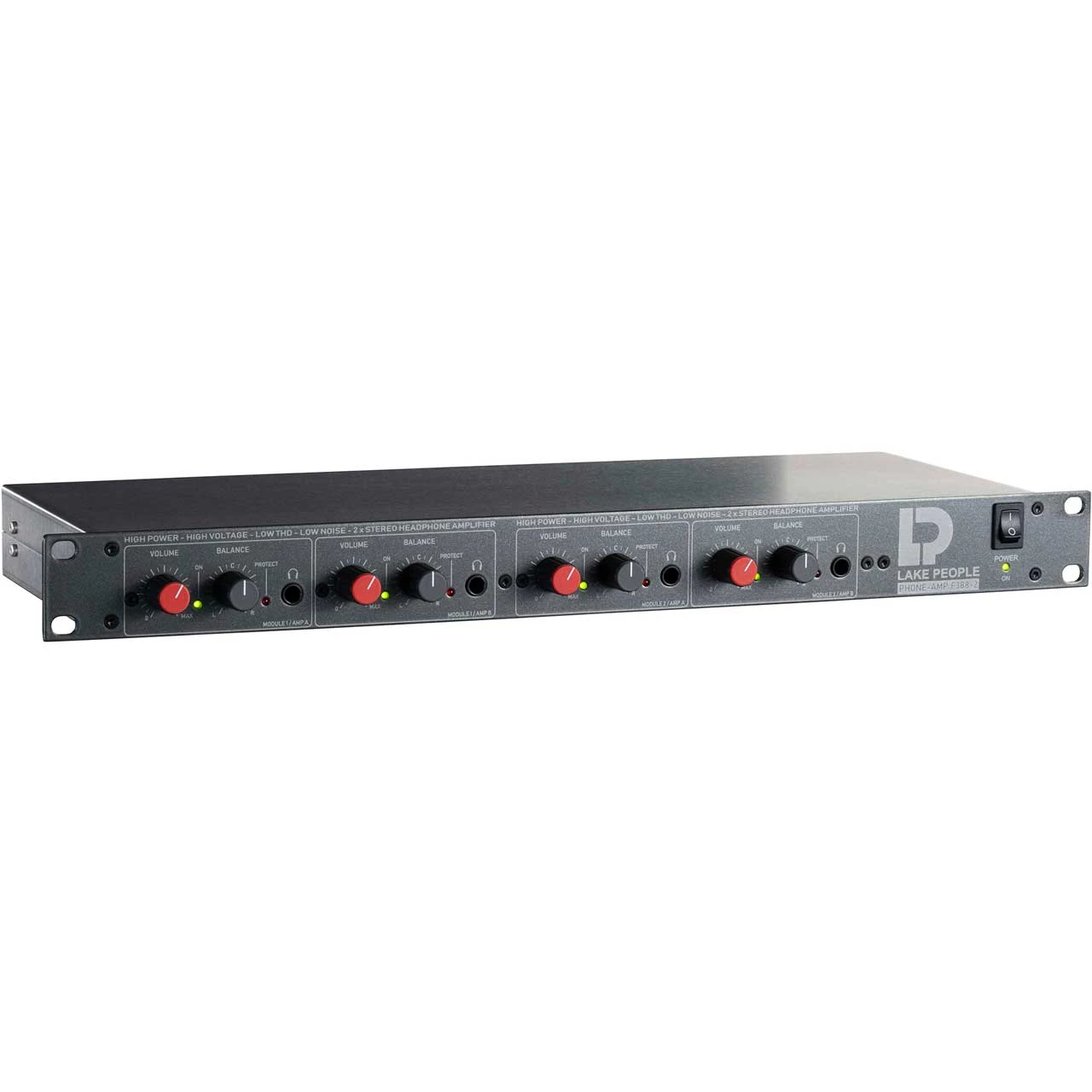

The F388-2-Q is a 19 Inch, durable, powerful, headphone amplifier with two + two balanced stereo inputs on the back. It features 4 identical amp sections each with individual volume and balance control. The stereo signal from module 1 can be looped through to module 2 with a link switch. The internal Pre-Gain can be set to -12 / -6 / 0 / +6 / +12 dB to adapt the amp to virtually any source or headphone combination. The amplifier features low output impedance to drive low-impedance headphones without coloration and has a high internal operating voltage to supply high-impedance headphones with what they need.
-
Specifications:
- Dimensions: 483 x 44 x 166mm (19.02 x 1.73 x 6.34in)
- Input Sensitivity: + 6 dBu
- Input Impedance: 10 kOhms
- Housing: 19″ / 1RU
- Headphone Out: 4
- Line I/O: 4 / 4
- Max. Output Level: 425mW (600 Ohm) / 800 mW (300 Ohm) / 2250 mW (100 Ohm) / 1620mW (50 Ohm) / 1100 mW (32 Ohm) / 490 mW (16 Ohm)
- Signal-to-Noise Ratio (SNR): > 120dBA
- Power Supply: Internal 230 V / 115 V AC
- THD+N (@ -1 dBFs): 0.002 %
- Frequency Range: 5 Hz – 50 kHz (-0.5 dB)
- Crosstalk: -80 dB
- Amplifier Channels: 4
-
Item Includes:
- 1x PHONE-AMP F388-2-Q
- 1x power cable
- 1x manual
-
GTIN:
7426923822018
