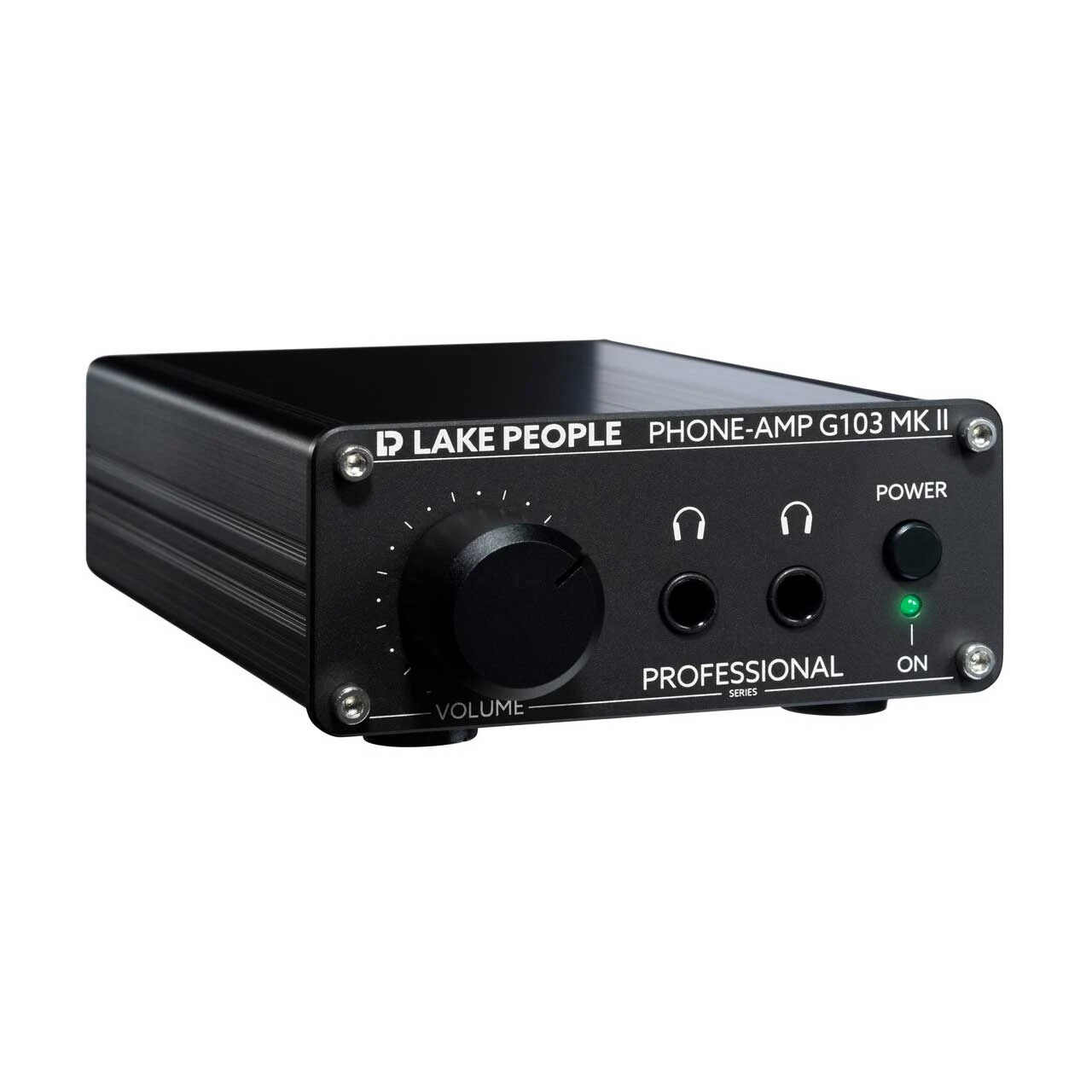

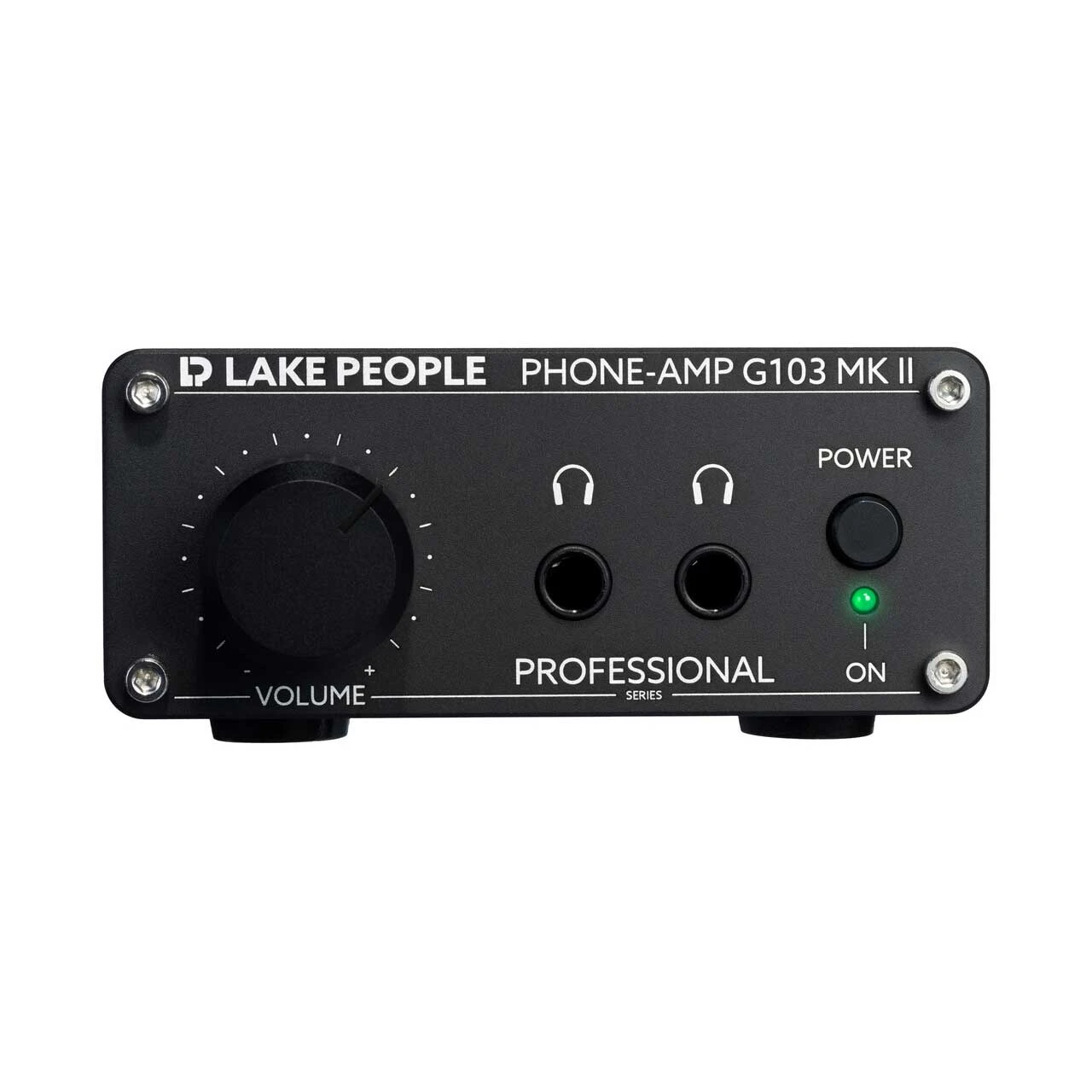

Lake People G103-P MKII Stereo Headphone Amp With Balanced Input And 2 Outputs – XLR

The Lake People Phone-Amp G103-P MKII is a stereo headphone amplifier for recording and livesound with XLR out. The overall gain can be adjusted using the internal jumpers to match specific headphone characteristics. Thanks to this technique, this headphone amplifier is able to drive nearly all existing headphones from 8 – 600 ohms load impedance.

Featuring THD-optimized circuitry the G103-P MKII offers optimum flexibility and high power in a compact, rugged package. The case of G103-P MKII is made of black anodized aluminium to provide high mechanical stability and resistance against rough handling. The cases surfaces provide excellent electrical conductivity for optimum EMC characteristics. The G103-P MKII is also equipped with filters to prevent overload by inaudibly low and high frequencies.

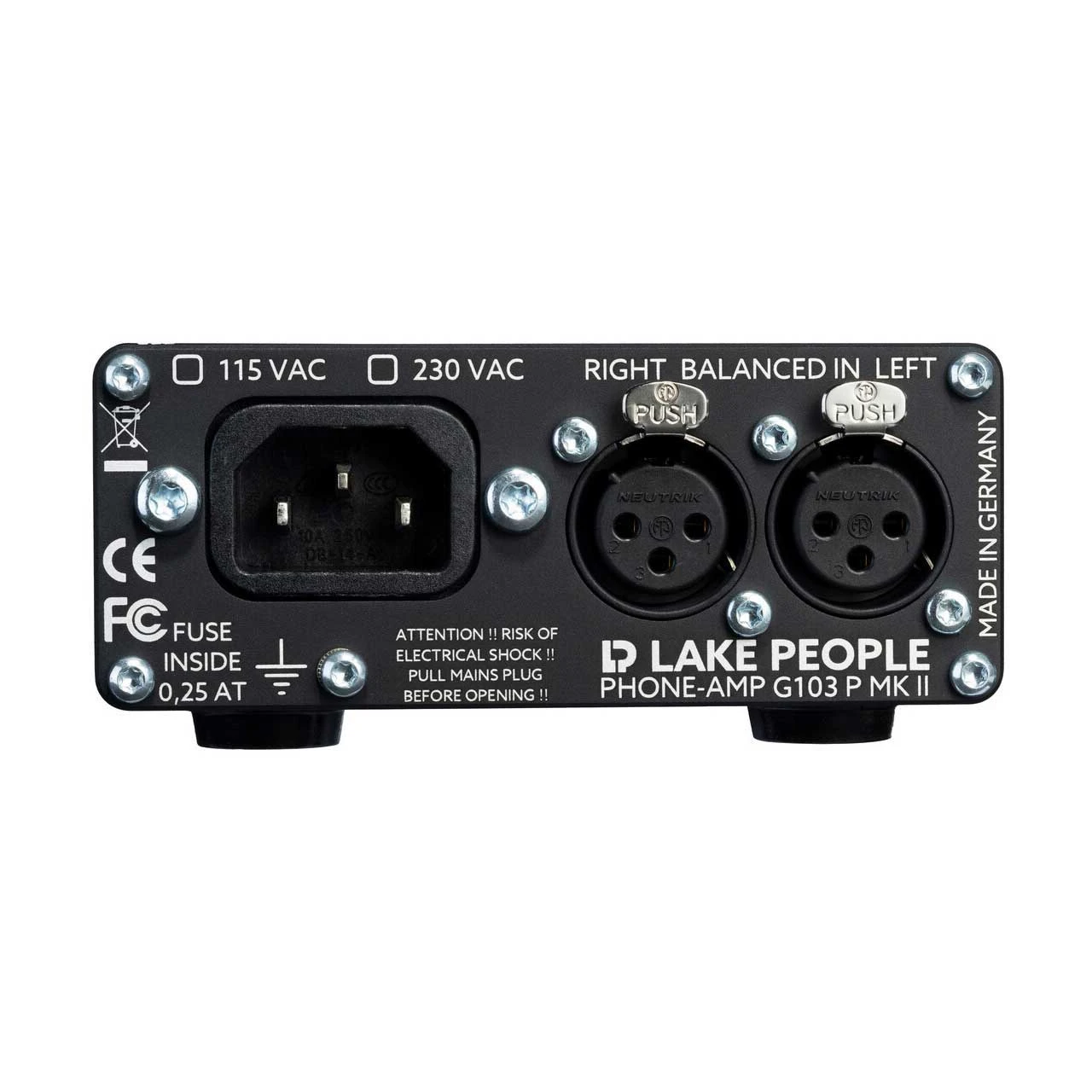

The Mains is connected via a three-pin IEC/CEE socket and a matching three-wire mains cable with Central Europe-type mains connector. The mains cable may vary to fit the demands of different markets The unit is factory-set to a mains voltage of 230 V AC.

Mains voltage may vary between 190 and 250 with the built-in mains transformers providing internal supply voltages of approx. +/- 25 V.
