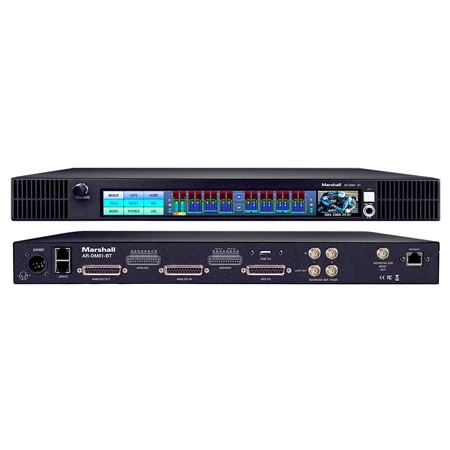

Marshall AR-DM61-BT-64DT Multi-Channel Digital Audio Monitor With Preinstalled Dante Module

Original price was: $341.00.Current price is: $95.99.

SKU: BWFYA 30940110 Categories: Audio Monitoring, Rackmount Audio Monitors

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

AR-DM61-BT-64DT – Overview

The Marshall AR-DM61-BT-64DT Multichannel Digital Audio Monitor provides versatile audio analysis, and professional QC monitoring of analog, digital, and networked audio sources. The AR-DM61-BT-64DT’s slim 1RU design includes powerful stereo speakers, an intuitive touchscreen interface, and multiple convenient display modes.

Equally at Home with Analog, Digital, and Networked Formats
The only audio monitor that is equally at home with your existing formats (SDI, AES, Analog, Dolby, and MADI) and modern networked digital formats, including DanteT networked audio. Additionally, the AR-DM61-BT-64DT includes a built-in web server for saved channel mixes, system settings, and updates.

Convenient and Intuitive Control
Visualize your entire network (64-channel simultaneous display) or zoom in on any pair to examine with 96-step precision bars with a simple touch of the display.

Powerful Output in a Compact Design
Don’t be fooled by the AR-DM61-64DT’s slim design. Cleverly designed stereo speakers deliver enough sonic punch for the noisiest server rooms, with simple push-to-mute control.

Applications:
The AR-DM61-BT-64DT is a powerful audio/video analysis monitor designed specifically for TV stations, broadcast trucks, master control, and house of worship facilities.

Features:
- 10-inch LCD Intuitive Touchscreen Panel displays up to 64 channels vertical or switch to 96-step high precision horizontal bars
- Special LKFS bars provides weighted display for group of channels
- Built-in live video preview monitor
- Accepts multiple signal input types
- High-powered stereo speakers (up to 100 dB output)
- Dedicated push-to-mute button
- Slim 1 RU Design
- Built-in web server makes it convenient to setup and customize
- Software upgradeable “Future-proof” platform
- Two dedicated 3GSDI inputs with loop-through (MADI compatible)
- 4 AES stereo inputs (8 channels) and outputs on 25-pin DSub connectors
- 8 Analog inputs and outputs on 25-pin DSub connectors
- Dolby™/Dante™ options
- Ethernet (RJ45) with IP addressing
- Front-facing headphone jack (1/4″)
- SDI output follows SDI input or selectable to MADI created from current source
Specifications:
- Video Input Connections: 2 x 3G SDI with looping output
- Video Formats Supported: SDI up to 1080p50, 59.94,60
  Audio Input Connections
- SDI Embedded 16 channels (two inputs)
- Analog 8 channels balanced via 25-pin DSub (Tascam format)
- AES 8 channels digital via 25-pin DSub (Tascam format)
- Dante up to 64 channels via dual IP (option board)
- MADI 64 channels (auto selected if present on either SDI input)
  Audio Output Connections
- AES/EBU 8 channels via 25-pin DSub (Tascam format)
- Analog 8 channels balanced via 25-pin DSub (Tascam format)
- USB 2.0 Port: Product Test / Service
- Network Connections: Ethernet 100 Base-T, supports DHCP or Fixed Addressing, Dual 1GB Ethernet (included with Dante Option)
- Dante Network Connection: Dual 1Gigabit Ethernet. Supports Dual A/B Network Operation
- Housing: Metal enclosure
- Dimensions [H x W x D]: 1.75″ X 17.36″ x 14.3″ / 4.45 cm x 44.0 cm x 36.3 cm
- Weight: 8.8 lbs / 4 Kg
- Mounting: Integral “ears” for standard 19″ rack mount
- Included Power Supply: DC 24-Volts 6.25 Amps 4-pin XLR connector
- DC Power Consumption: 20 Watts Typica
- Operation Temperature: 0~40 C [32~104 F]
- Storage Temperature: -20~60 C [-4~140 F]
- Relative Humidity: Human body model; ±15kV [air-gap discharge] & ±8kV [contact discharge]
- ESD Protection: 20~90% RH [no condensation]
Item Includes:
- 1x Marshall AR-DM61-BT-64DT Multi-Channel Digital Audio Monitor with preinstalled Dante Module
GTIN:

0801813192537
