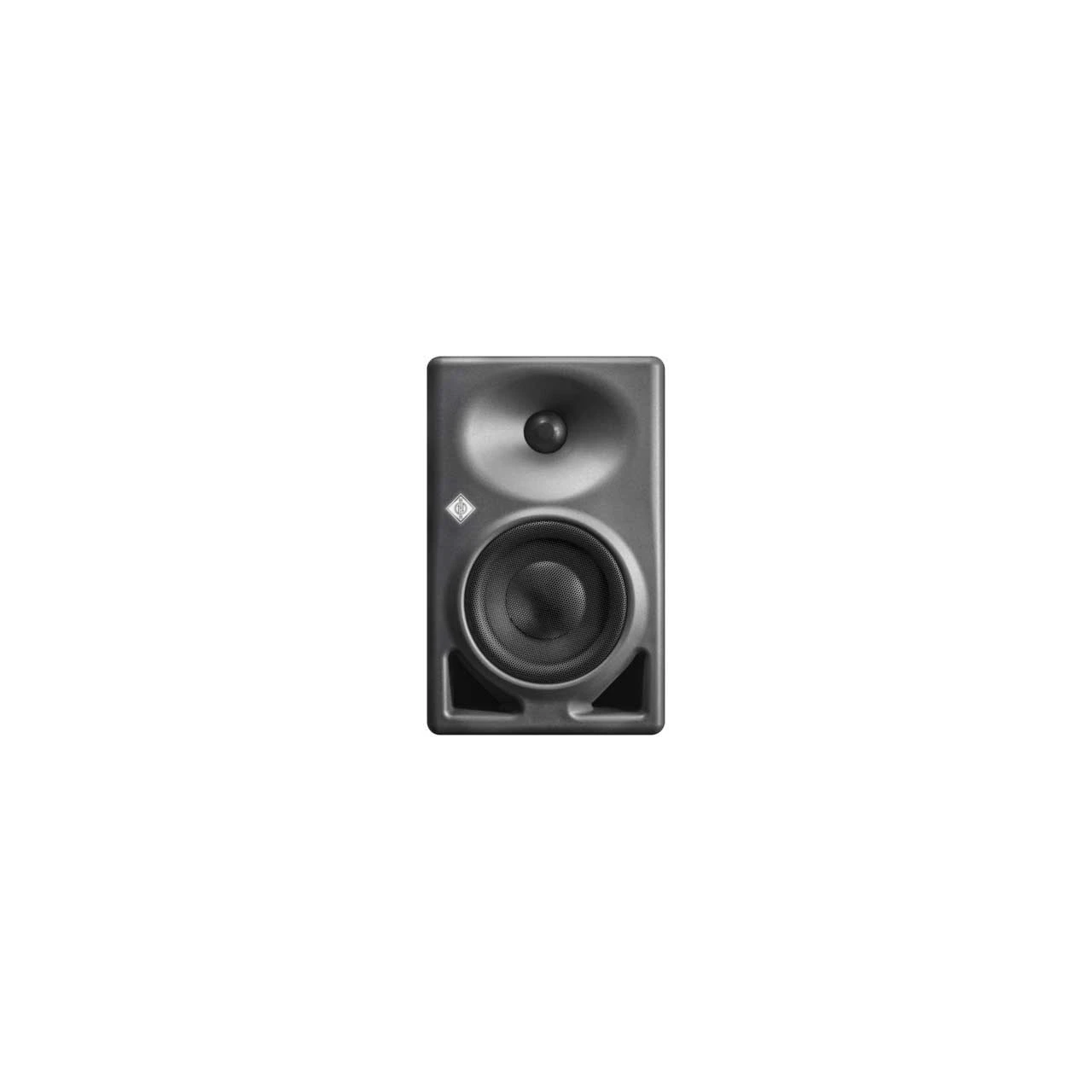

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor - Anthracite - Each

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor - Anthracite - Each - Image 2

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor - Anthracite - Each - Image 3

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor - Anthracite - Each - Image 4

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor - Anthracite - Each - Image 5

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor - Anthracite - Each -Microphone Shop NEUM KH120IIUS 1

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor - Anthracite - Each -Microphone Shop NEUM KH120IIUS 2

Neumann KH 120 II Active 5.25-Inch 2-Way Studio Monitor – Anthracite – Each

Original price was: $327.00.Current price is: $95.99.

SKU: BWFYA 14261072 Categories: Audio Monitoring, Speakers & Studio Monitors

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

KH 120 II – Overview

The KH 120 II is based on the same concept as its acclaimed predecessor but completely re-engineered for improved performance in all parameters: deeper bass, higher SPL capability and even better resolution. Internal DSP power allows for phase linear crossovers and room adaptive alignment via Neumann’s revolutionary MA 1 Automatic Alignment.

PERFECT SOUND WITH A SMALL FOOTPRINT
The KH 120 II has an exceptionally linear frequency response from 44 Hz to 21 kHz (±3 dB). Not only that: It also linearizes the phase response! Which translates to clear mids with astonishing transparency as well as extreme accuracy in the time domain: precise impulse reproduction and finely resolved reverbs. This is made possible by DSP controlled electronics which allow for sophisticated crossovers avoiding the phase distortion caused by analog filters. The internal DSP also realizes new standards in tonal consistency. The KH 120 II is made to extremely low tolerances of no more than ±0.5 dB! And you can hear it, too: Stereo imaging is razor-sharp.

READY FOR YOUR ROOM
Even the best loudspeaker only sounds as good as the acoustic environment allows. Neumann’s Mathematically Modelled Dispersion™ (MMD™) waveguide guarantees a wide sweet spot and minimizes desk reflections. But the KH 120 II goes much further: Its internal DSP allows for room calibration via Neumann’s revolutionary Automatic Monitor Alignment. MA 1 (sold separately) makes sure your DSP powered monitors are optimally adapted to the character of your room and perfectly aligned for your listening position. Even in acoustically treated rooms, this results in a significant improvement.

AES 67 – AUDIO OVER IP
Additionally, the KH 120 II AES67 model variant offers integrated redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110, ST 2022-7 redundancy, and RAVENNA. At the same time, the KH 120 II AES67 is compatible with DANTE®-generated AES67 network streams.

Features:
- High-precision drivers, Mathematically Modelled Dispersion™ (MMD™) waveguide
- Linear frequency response 44 Hz – 21 kHz (±3 dB)
- Linear phase response 120 Hz – 16 kHz (±45°) with latency 2.6 ms
- DSP inside allows for room adaptive alignment via Neumann’s MA 1
- Razor sharp imaging due to extremely low tolerances (±0.5 dB)
- May be combined with other KH line speakers in immersive or surround setups
Specifications:
- Free Field Frequency Response ±3 dB: 44 Hz to 21 kHz
- Self-Generated Noise at 10 cm (with Input Gain Set to 100 dB SPL for 0 dBu): 20 dB(A) SPL
- Max. SPL calc. in Half Space at 3% THD at 1 m (Averaged Between 100 Hz and 6 kHz): 116.8 dB SPL
- Acoustical Principle: Bassreflex, Ports at the front
- Analog Input(s): XLR: analog electronically balanced
- Analog Input Impedance: 24k Ohms
- Digital Input(s): KH 120 II / KH 120 II W: RCA (75Ω): S/PDIF KH 120 II AES67 / KH 120 II W AES67: RCA (75Ω): S/PDIF, Ethernet
- Input Gain Control (Sensitivity): 0 dB to -15 dB
- Output Level Control (Output Level in 1 m Based on 0 dBu Input Level): 94; 100; 108; 114 dB SPL
- Equalization Bass: 0; -2; -4; -6 dB
- Equalization Low-Mid: 0; -2; -4; -6 dB
- Equalization Treble: +1; 0; -1; -2 dB
- Control: Local; Network
- Crossover Frequency: 1.7 kHz
- FIR Phase Correction: Linear phase (120 Hz to 16 kHz; +/- 45°)
- Protection Circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
- AES67 Audio-over-IP Interface: KH 120 II AES67 / KH 120 II W AES67: Fully redundant AES67 ST2110 compliant audio network interface; 2 Fast Ethernet 100Base-TX (IEEE 802.3) RJ-45 connectors; Physical redundant network (ST 2022-7)
- AES67 Audio-over-IP Input Word Length: KH 120 II AES67 / KH 120 II W AES67: 24 bits
- AES67 Audio-over-IP Input Sampling Rate: KH 120 II AES67 / KH 120 II W AES67: 44.1 / 48 / 88.2 / 96 kHz
- AES67 Audio-over-IP Input Connection Management: KH 120 II AES67 / KH 120 II W AES67: RAVENNA, NMOS IS-04 (Discovery & Registration) and NMOS IS-05 (Connection Management)
- Output Power Woofer Amplifier (THD+N with Limiter Deactivated: 10%): 145 W
- Output Power Tweeter Amplifier (THD+N with Limiter Deactivated: 10%): 100 W
- Woofer: KH 120 II / KH 120 II AES67: 130 mm (5.25″) with protecting metal grille, black KH 120 II W; KH 120 II W AES67: 130 mm (5.25″) with protecting metal grille, white
- Tweeter: KH 120 II / KH 120 II AES67: 25 mm (1″) with protecting metal grille, black KH 120 II W; KH 120 II W AES67: 25 mm (1″) with protecting metal grille, white
- Product dimensions (HxWxD): 11.3 x 7.16 x 8.94″ (287 x 182 x 227mm)
- Product Weight: 11Lbs (5.4kg)
GTIN:

0615104355804
