PBT-RPC-66 – Overview

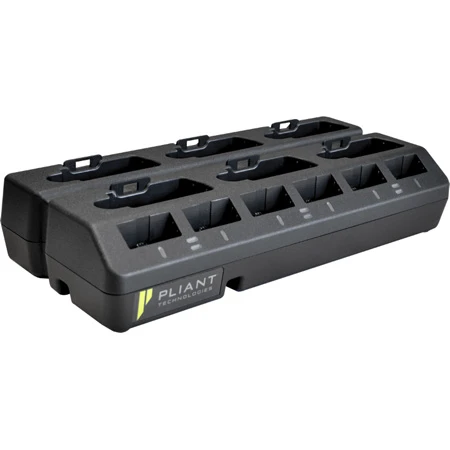

The Pliant PBT-RPC-66 6+6 Drop-in Radio Pack and Battery Charger conveniently charges up to six batteries in the radio pack and up to six stand-alone batteries simultaneously (Batteries not included). An optional 3-position mounting bracket is available for flexible, secure charger positioning (PAC-PBT-MNT).The 6+6 Drop-in Radio Pack and Battery Charger is a customized charging station for CrewCom radio packs and Pliant li-poly [PBT-LIP-01] batteries.
Note: The Pliant 6+6 Drop-in Charger is not compatible with discontinued Tempest (TMA-BAT-02) batteries.
-
Features:
- Charge up to six CrewCom Radio Packs and six batteries simultaneously
- Recharge batteries from empty in less than 4 hours
- LED indicators provide real-time charge status
- Radio Pack charging bays compatible with Pliant FleXLR adapter
- Charger bottom designed for cable management
- Region-specific power cable (included)
- Non-Reflective, textured matte finish
- Optional mounting bracket available (not included)
-
Specifications:
- Input
- Voltage Range: 90-264 VAC
- Frequency Range: 47-63 Hz
- Input Current: 1.3 A max
- Standby Power: 1.6 W max
- Input Fuse: N/A
Output
- Per Battery Bay
Voltage: 0-4.2 V
Current: 0-1 A
Power: 4.2 W Maximum
Voltage Tolerance: ± 1%
Current Tolerance: ± 5%
Leakage Current: 1 mA
Ripple & Noise:(3): 120 mV pk-pk
Protection: Over current, Over temperature, Reverse polarity - Per RP Bay
Voltage: 0-5.35 V
Current: 0-1.5 A
Power: 8 W Maximum
Voltage Tolerance: ± 1%
Current Tolerance: N/A (controlled by RP)
Leakage Current: 1 mA
Ripple & Noise (3): 120 mV pk-pk
Protection: Over current, Over temperature, Reverse polarityEnvironmental
- Cooling Convection: cooled
- Operating Temperature: -30°C to 70°C (-22°F to 158°F);
- Battery Charging: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Altitude: -382m to 2000m (-1,253′ to 6,562′)
Mechanical Details
- Charger
Dimensions (LxWxH): 394 x 173 x 78mm (15.5 x 6.8 x 3.1″)
Weight (Charger): 1360g (3Lbs) - Power Supply
Dimensions (LxWxH): 145 x 60 x 32mm (5.7 x 2.4 x 1.2″)
Weight: 450g (1Lbs) - Dimensions may vary if device uses optional mounting bracket.
General
- AC Input Connector: IEC60320 C14 (3-in)
- DC Input Connector: L712
- DC Cable Length: 1 m (3.3 ft.)
- Efficiency (Level VI): >89% at full load
- Green Procurement: WEEE2002/96/EC
- MTBF: 348.7K hrs. min. MIL-HDBK-217F (25°C)
- Indicator: Red-green bicolor LED per bay
- Battery Temp Monitoring: Read TEMP register (0x07 – 0x06) of BQ27000 in battery pack
- Charge Time from Empty:
Radio Packs: approx. 4 hours
Batteries: approx. 2.5 hours - PCB Visibility: 0.5 mm (0.020 in.) around perimeter of battery-mating connector
- RoHS COMPLIANCE: In compliance with the European Directive 2011/65/EC on the
- Restriction of Hazardous Substances (RoHS)
-
Item Includes:
- 1x PBT-RPC-66 – 6+6 Drop-In Radio Pack and Battery Charger
- 1x 00004239 – Power Supply
- 1x PC-PWR-XX (Region Specific) – AC Power Cord
- 1x D0000534 – Operating Guide
- 1x D0000219 – Warranty Extension Registration Card
- Please Note: Batteries NOT included
-
Warranty:
- Full One-Year Parts and Labor Warranty
