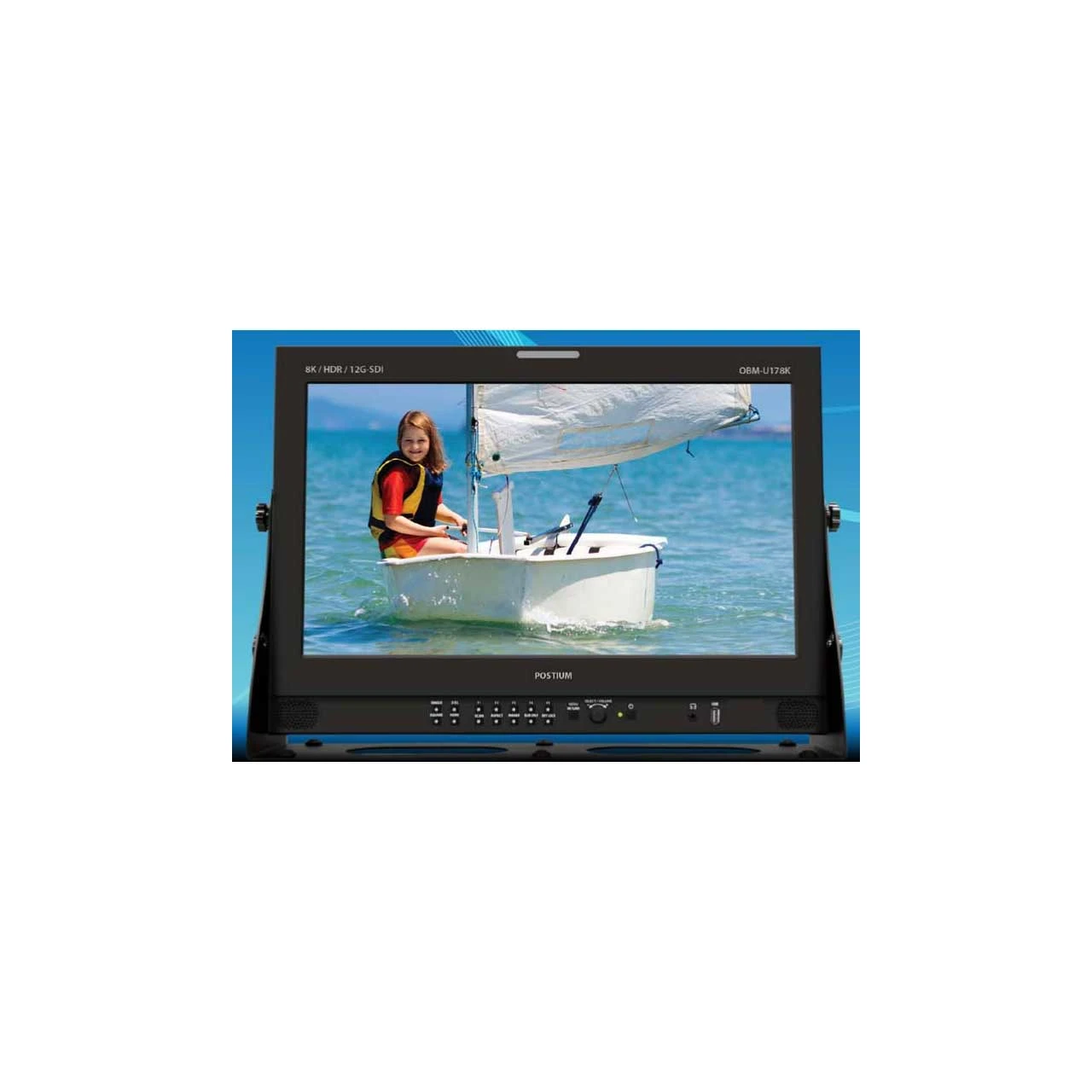

Postium OBM-U178K 17 Inch HDR 4K LCD Monitor With 4 X 12G-SDI Input To Support 8K

Postium OBM-U178K 17 Inch HDR 4K LCD Monitor With 4 X 12G-SDI Input To Support 8K - Image 2

Postium OBM-U178K 17 Inch HDR 4K LCD Monitor With 4 X 12G-SDI Input To Support 8K - Image 3

Postium OBM-U178K 17 Inch HDR 4K LCD Monitor With 4 X 12G-SDI Input To Support 8K

Original price was: $313.00.Current price is: $98.99.

SKU: BWFYA 94308165 Categories: Headset Microphones, Microphones

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

OBM-U178K – Overview

The Postium OBM-U178K incorporates 4 x 12G SDI input and Loopout(x4), HDMI 2.0 input. The OBM-U178K accepts up to 7680×4320 / 60 / 59.94. / 50p signals. The OBM-U178K provides the function to display the HDR(High Dynamic Range) footage, and supports a wide color gamut conforming to DCI-P3. The OBM-U178K offers the professional performance, including excellent quality black performance, accurate color reproduction, which make these monitors ideal for 8K/4K live production, versaOle monitoring and field production application. In addition, the OBM-U178K supports the integrated 3D LUT, Waveform, Vector Scope and full feature set. Advanced 3D LUT Tetrahedral Interpolation algorithm has been applied to the OBM-178K. The accuracy of the color reproduction is better than 33x33x33 grid 3D LUT with cubic interpolation.

Display Functions
Wide Color Space Support including DCI-P3 and ITU-R BT.2020 is controlled with an advanced 3D LUT (Look Up Table) to reproduce various color spaces accurately with smooth, artifact-free grayscale steps. Available color gamuts are DCI-P3, ITU-R BT.2020, ITU-R BT.709, SMPTE-C, EBU, and Native.

Versatile 4K/QFHD Input Capability
The OBM-U 8K/4K series is equipped with standard 12G-SDI input interface(x4) and support 4K/8K Quad Link 2-sample inter-leave signals and 4K Quad Link Square Division signals.
The OBM-U 8K/4K Series can accept up to 7680×4320/23.98,24,25,29.97,30,50,59.94,60p and 8192×4320/23.98, 24, 25, 29.97, 30, 50, 59.94, 60p.

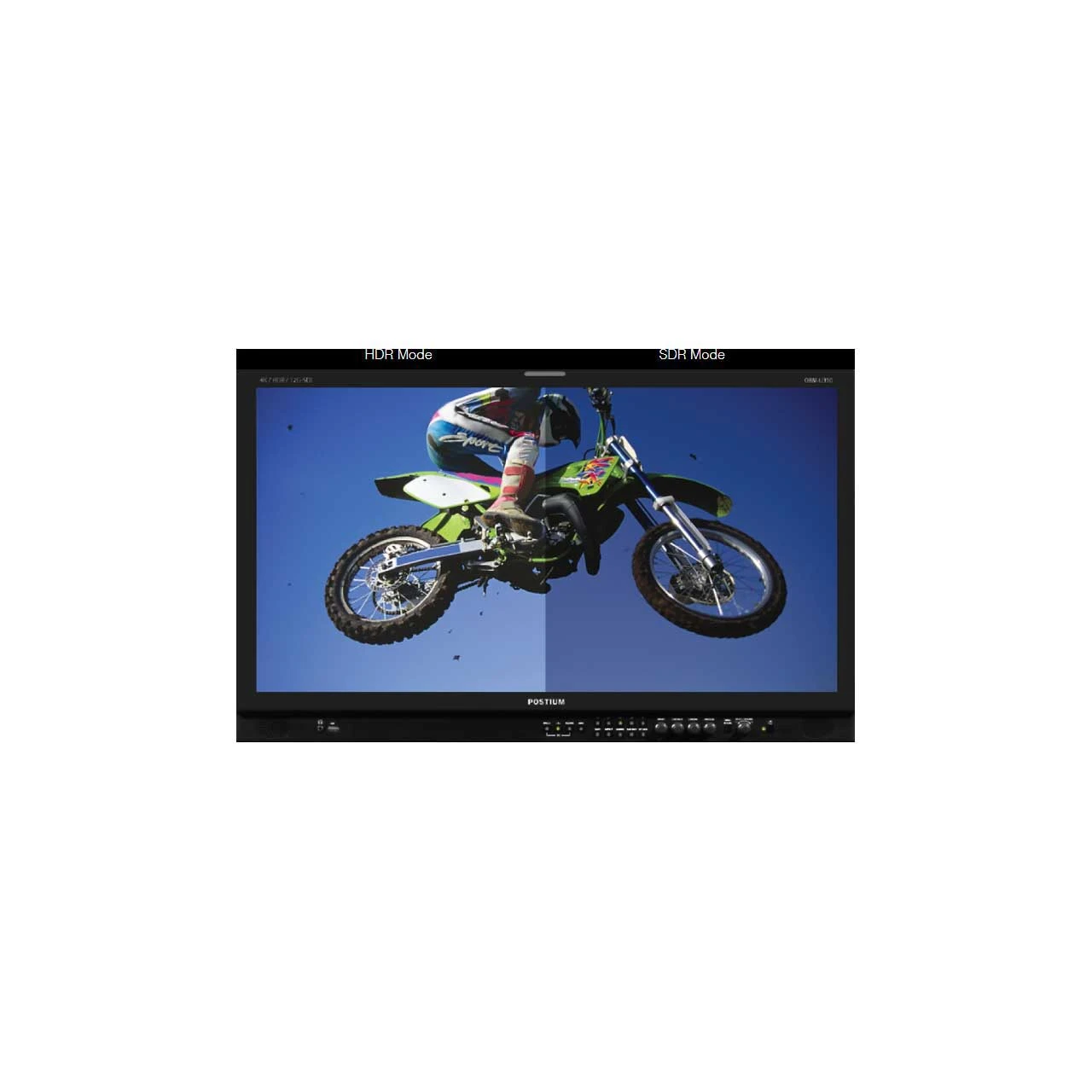

High Dynamic Range(HDR) Display Function
The OBM U 8K/4K series provides the function to display the High Dynamic Range footage.
Postium HDR function allows users to view both highlights and shadow detail of scenes at the same time, thus resulting in more natural and realistic images.
The OBM U 8K/4K series supports PQ EOTF (SMPTE ST 2084), Hybrid Log Gamma and S-Log3.

Features:
- 12G SDI Quad Link 8K / 12G-SDI Single Link 4K
- 6G-SDI Dual Link 2-S.I. 4K
- 3G-SDI Quad Link Square Division 4K / 3G-SDI Quad Link 2-Sample Interleave (2-S.I.) 4K
- Dual SFP Module Inputs (ST 2022-6 Support)
- HDMI 2.0 Input
- HDR(High Dynamic Range) Display supporting PQ (ST 2084), Hybrid Log Gamma, S-Log3
- Wide Color Gamut Supporting ITU-R BT.709, SMPTE-C, EBU, Native, DCI-P3, ITU-R BT.2020
- Internal color processing 72bit(24bitx3) + Native 33x33x33 30bit 3D-LUT
- Gamut Error
- 1.064B Colors(8bit+Hi FRC)
- Custom 3D LUT file Import Through USB
- Gamma Selection (1.0 ~ 3.0)
- SDR EOTF – BT.1886 (Gamma 2.4)
- Color Temperature (3200K, 5500K, 6500K, 9300K, USER 1/2/3, D-CINEMA)
- Image Division & Link Order Auto Detection
- Waveform, VectorScope (Wave + Vector)
- HDR Waveform
- Various Markers (EBU, 4:3, 16:9, 1.85:1, 2.35:1, Variable Custom)
- Time Code Display
- De-embedded 8~16ch Audio Level Meter
- Internal Pattern Display for Color Test (Black ~ 100% White, Color Bar)
- Remote Control via GPI(RJ-45) Port
- False Color : Zebra, Color Pattern, ARRI
- Easy Firmware Update by USB
- System Data Copy
Specifications:

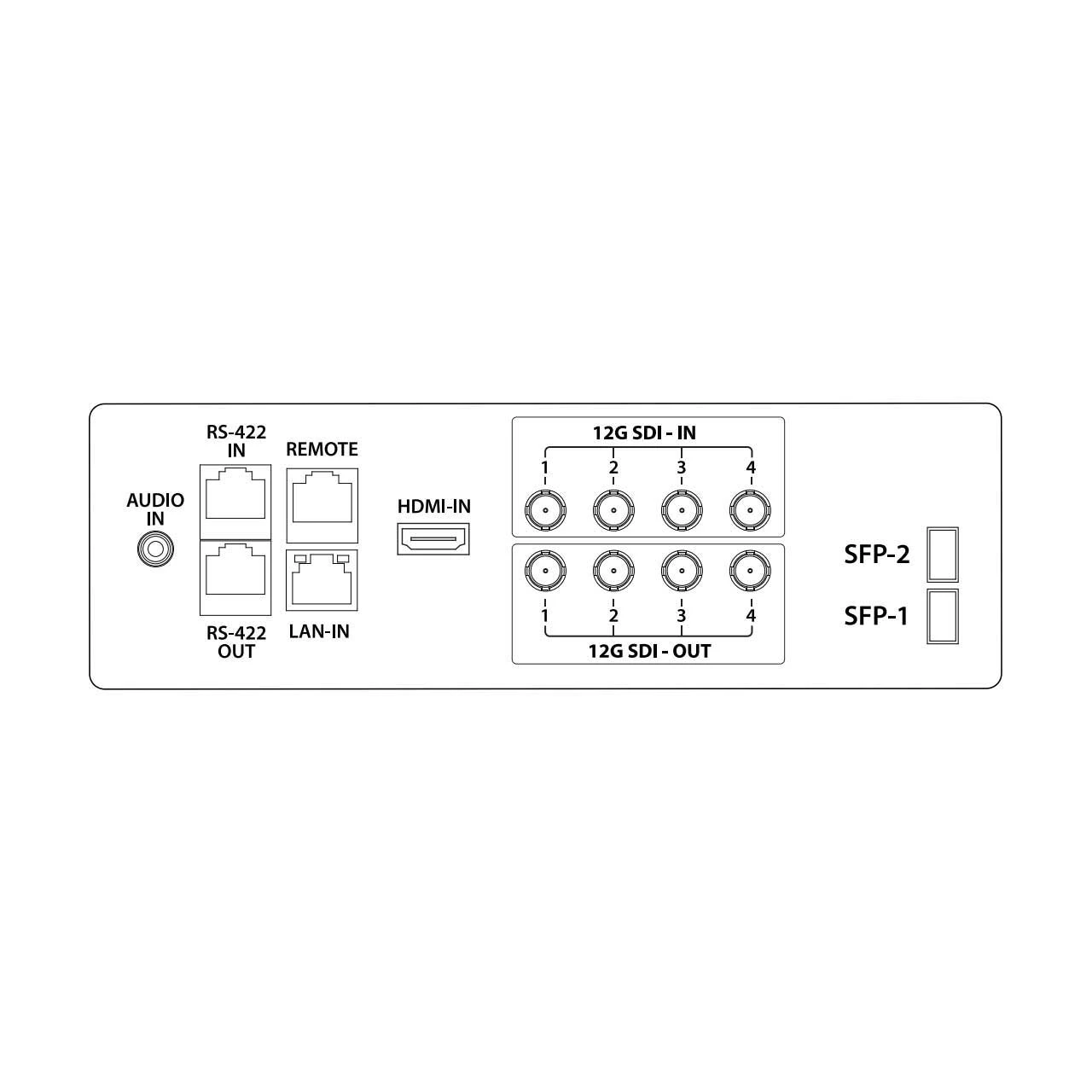

- Input:
  – 4x BNC: 12G/6G/3G/HD
  – 1x HDMI: HDMI 2.0
  – 2x SFP: SFP
- Output:
  – 4x BNC: 12G/6G/3G/HD/4 Active Loop Output
- Input Signal Format:
  – SMPTE ST 2082-12(12G Quad 8K): 4320p(60/59.94/50)
  – SMPTE ST 2082-10(12G Single): 2160p(60/59.94/50/30/29.97/25/24/23.98)
  – SMPTE ST 2081-11(6G Dual): 2160p(60/59.94/50)
  – SMPTE ST 2081-10(6G Single): 2160p(30/29.97/25/24/23.98)
  – SMPTE ST 425-AB: 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
  – SMPTE ST 274: 1080p(30/29.97/25/24/23.98/24sF/23.98sF), 1080i (60/59.94/50)
  – SMPTE ST 296: 720p(60/59.94/50)
  – SMPTE ST 260: 1920 x 1035i(60/59.94)
  – SMPTE ST 2048: 2048 x 1080p(24/23.98/24sF/23.98sF)
  – HDMI 2.0: ~ 2160p(60)
  – SFP: 12Gbps, 6Gbps, 2.970Gbps, 1.485Gbps, 270Mbps
- Audio In/Out:
  – 1x Phone Jack In: Line In(Stereo)
  – 1x phone Jack Out: H/P Out(Front, Stereo)
  – 2x Speaker Out: Stereo
  Display:
- Size: 17.3″ LCD
- Resolution: 3840 x 2160 (16:9)
- Active Area: 95.04mm (W) X53.858(H)mm
- Pixel Pitch: 0.09945 mm
- Color: 1.064B Colors(8bit+Hi FRC)
- Viewing Angle: 178(H), 178(V)
- Luminance of White: 1500cd/m²
- Contrast: 1000 : 1
- Display Area: 381.89 x 214.81 (mm)
- Control:
- RS-422: 1 x Input, 1 x Output
- Remote(GPI Control): 4(1 for each screen)
- USB(Update, Calibration): For Firmware Update, Color Calibration
  General:
- 2x Ethernet: Control/Update, RJ-45P Input / Output
- 1x GPIO: GPI-7 Port, RJ-45P Jack
- 2x Serial: RS-422 Jack, RJ-45P Input / Output
- 1x USB: For Firmware Update, Color Calibration
- Power Requirements: AC(100-230V, 50/60Hz)/DC 24V
- Power Consumption: 75 W
- Operating Temperature: 0 ~ 40°C(32~104°F)
- Operating Humidity: 20 ~ 80% RH
- Weight: Main Body: 7.7kg / 16.97lbs
- Dimensions: Main Body : 17.16 x 12.20 x 3.18inch (With Stand : 17.51 x 12.20 x 4.72 inch)
- Accessories: Power Cable
Item Includes:
- 1x Power Cable
GTIN:

8809771070463
