Sale!

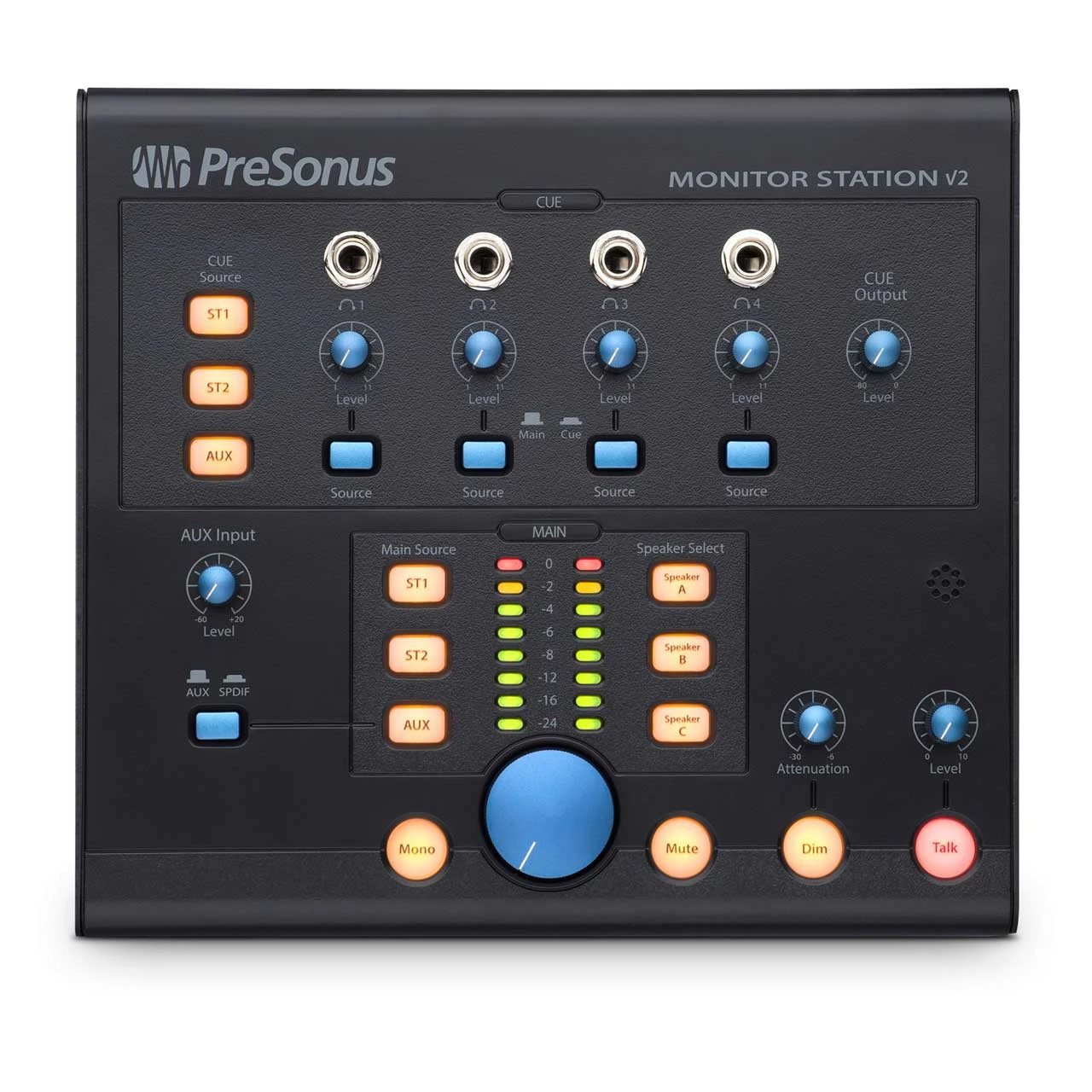

PreSonus Monitor Station V2 Desktop Studio Control Center With SPDIF Input

PreSonus Monitor Station V2 Desktop Studio Control Center With SPDIF Input - Image 2

PreSonus Monitor Station V2 Desktop Studio Control Center With SPDIF Input

Original price was: $349.99.Current price is: $98.99.

SKU: BWFYA 95130415 Categories: Audio Monitoring, Personal Audio Monitoring

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

MONITOR STATION V2 – Overview

Equip your studio with pro monitoring features for a song.
Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer – all from your desktop.

Consider Your Sources.
Switch quickly and easily between up to four audio sources with a selection of input types.

Manage Your Destinations.
Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control-and four screaming-loud headphone outs.

Get This In Your Head.
With Monitor Station V2, you can evict the drummer from the main room, banish the guitarist to the bathroom, shove the singer into a closet, and make them like it!

Have it Your Way.
The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work. With its ergonomic, intuitive layout; extensive features and I/O; and PreSonus’ famed sound quality, Monitor Station V2 provides a versatile, convenient, and affordable solution for managing your studio monitoring system from your desktop.

Features:

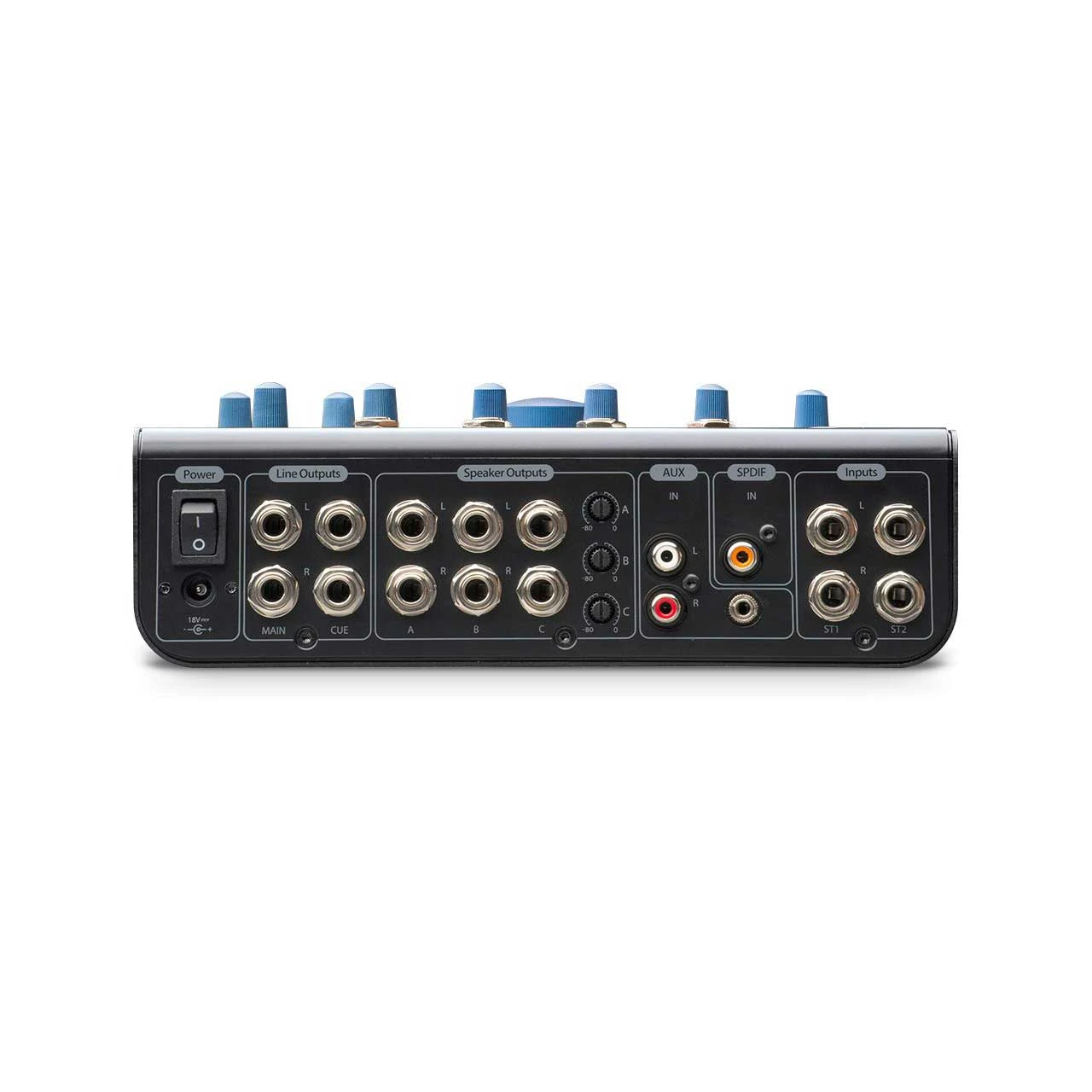

- Ins and Outs
- 2x Stereo pairs of 1/4″ TRS inputs
- 1x Stereo pair of RCA Aux inputs
- 1x Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
- 3x Stereo pairs of 1/4″ TRS speaker outputs with level controls
- 1x Stereo pair of 1/4″ TRS Main outputs
- 1x Stereo pair of 1/4″ TRS Cue outputs
- 4x 1/4″ TRS screaming-loud stereo headphone outputs
  Controls
- Large Main level control
- 3x Individual Main Source (ST1, ST2, Aux) select switches
- 3x Individual Speaker Select switches
- Cue section with Source select (ST1, ST2, Aux) and output-level control
- Aux-S/PDIF Select switch
- Aux Input level control
- Main Mute, Mono, and Dim switches with variable Dim attenuation
  Additional Features
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
- Convenient desktop design
Specifications:
- Audio Inputs – Internal Talkback Microphone
- Gain Range: +15 to +55 dB
- Type: Electret condenser
- Sensitivity: -42 dB
  STEREO 1 and STEREO 2 Inputs
- Type: 1/4″ TRS Active Balanced
- Input Impedance (Balanced): 10 kOhm
- S/N Ratio (1 kHz @ +10 dBu, Unity Gain): >105 dB
- THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): 0.0075%
- Frequency Response (±0.5 dB): 10 Hz to 65 kHz
- Noise Floor (20 Hz to 20 kHz, 150O input termination): -96 dBu
- Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu
  Auxilliary Inputs
- Type: RCA Active Unbalanced
- Input Impedance 47.5 kOhm
- S/N Ratio (1 kHz @ 0 dBu, Unity Gain): >115 dB
- THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) 0.01%
- Frequency Response (±0.5 dB): 10 Hz to 50 kHz
- Gain Range: 80 dB to +10 dB
  S/PDIF
- Types: RCA 75O coax
- Dynamic Range: 113 dB
- THD+N 0.0025% (1 kHz @ -1 dBFS)
- Maximum output at 0 dBFS: +18 dBu
- Sample Rates: 44.1, 48, 88.2, 96 kHz
  Input Meters (ST1, ST2, and Aux only)
- Type: Dual 8-segment LED w/peak hold
- Sensitivity Range: -24 dB to 0 dB
  Audio Outputs
- Type: 1/4″ TRS Active Balanced
- Output Impedance (Balanced): 51Ohm
- THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain): 0.01%
- Frequency Response (±0.5 dB): 10 Hz to 50 kHz
  Speaker A, B and C
- Trim Range: -80 dB to 0 dB
- Main Level Range: -80 dB to 0 dB
- Dim Attenuation Range: -30 dB to -6dB
  Cue
- Cue Level Range: -80 dB to 0 dB
- Dim Attenuation (Talkback activated): -20 dB
  Headphones
- Type: 1/4″ TRS Active Stereo
- Maximum Output (60O load): 150 mW / channel
- Frequency Response (±1.0 dB): 10 Hz to 50 kHz
GTIN:

0673454002823
