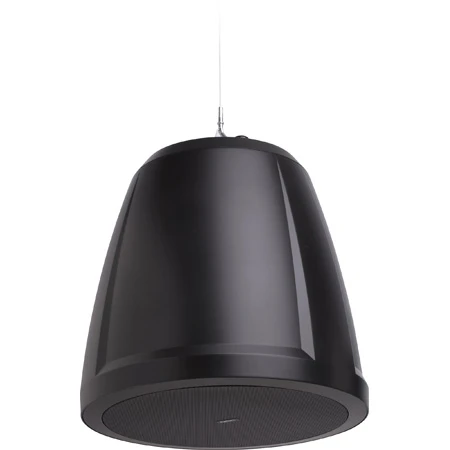

QSC AD-P.SUB 6.5-inch Dual Voice Coil Small Format Pendant Subwoofer – Black
Original price was: $350.00.$99.99Current price is: $99.99.
- Get the quality you deserve, for less.
- Quality You Can Trust
- Efficiency meets excellence in customer care.
- Safe Payments, Happy Customers
AD-P.SUB-BK – Overview
The QSC AD-P.SUB is part of the AcousticDesignâ„¢ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.
The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.
The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.
The AD-P.SAT features a high quality 2.75-inch weather treated paper cone woofer with an inverted aluminum dust cap for extended high frequency presence within a sealed enclosure.
These loudspeakers are rated at 16 Ω, and up to four satellites may be connected to any AcousticDesign Series SUB/SAT subwoofer’s high-pass filtered outputs. Satellites also may be used as stand-alone loudspeakers using an external high-pass filter.
-
Features:
- Dual voice coil for improved thermal dissipation and higher output
- Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
- 4x built-in high-pass filtered outputs
- Snap-fit magnetic grills
- Locking 4-pole Euroblock connectors
- 2x quick link cable assemblies and slip-lock fasteners supplied
- Intrinsic Correctionâ„¢ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
- UL1480 certified
-
Specifications:
- LF transducer: 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer
- HF transducer: N/A
- Effective frequency range: 55 Hz – 150 Hz
- Rated noise power / voltage: 100 W / 20 V (rms)
- Sensitivity [dB] (rated @1 W, 1 m): 86
- Coverage (-6 dB): Omni
- Maximum SPL [dB] (continuous / peak): 100 / 106
- Recommended amplifier: 100 W
- Transformer taps / impedance: Bypass:4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V) Tap: 100 Ω 25 W (70 V); 50 W (100 V) Tap: 200 Ω 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
- Connectors: Mono input: 4-pole Euroblock with thru output
- Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
- Enclosure material: ABS
- Grille material: Powder coated steel
- Ingress protection: IP-34
- Operating environment: Designed for indoor use
- Operating temperature range: -4 to 122° F (-20 to 50° C)
- Net weight: 16.5 lb (7.5 kg)
- Product dimensions (Ø x H): Ø 13.6 x 13.8-inch (Ø 4.3 x 4.5 mm)
- Included accessories: 2x cable rigging, 3x Euroblock connector, 2x sealed input cover, grill
- Safety agency: UL1480, Transformer UL registered per UL1876, ROHS, CE compliant
-
Item Includes:
- 2x cable rigging
- 3x Euroblock connector
- 2x sealed input cover
- Grill
-
GTIN:
0684284075888
