AD-S.SUB-BK – Overview

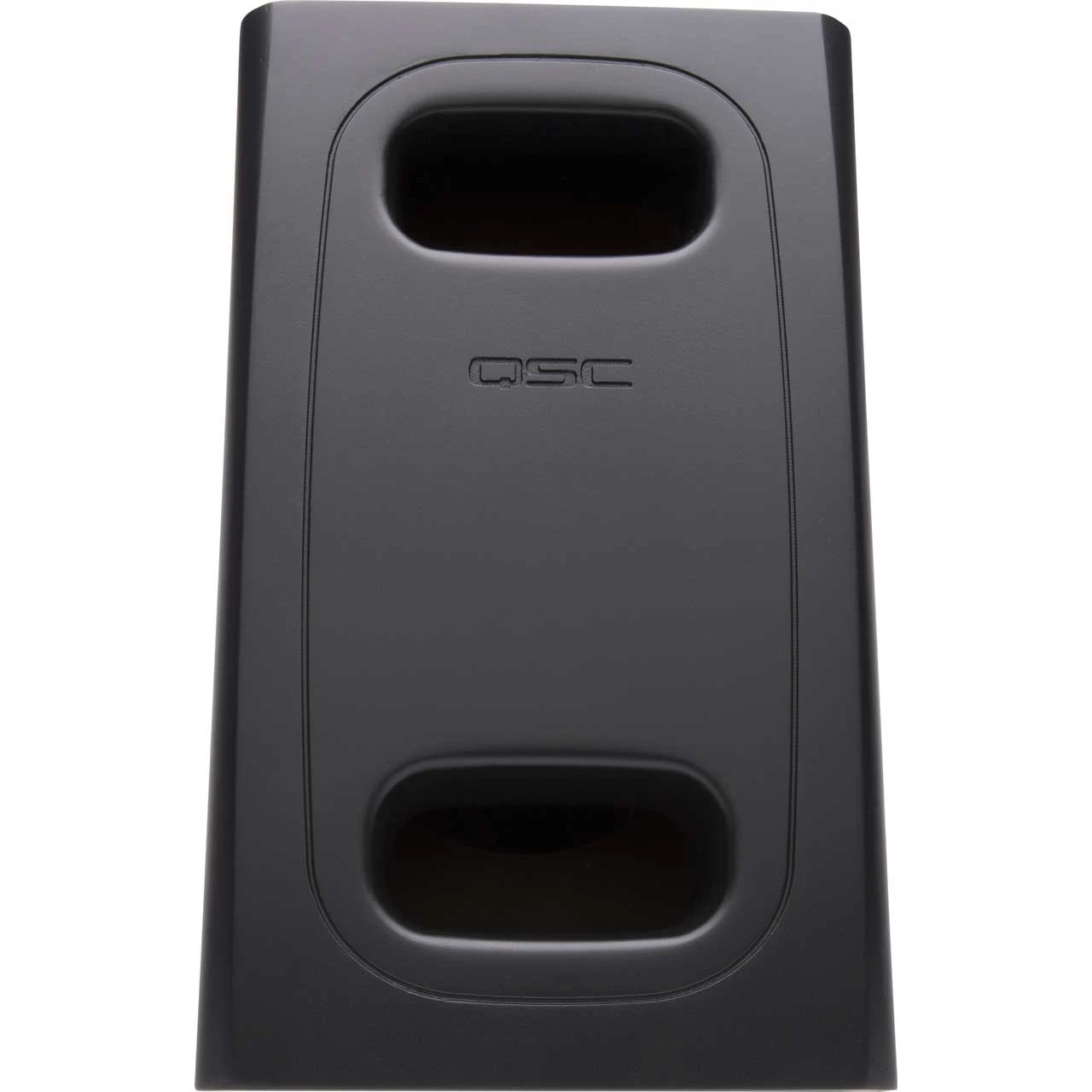

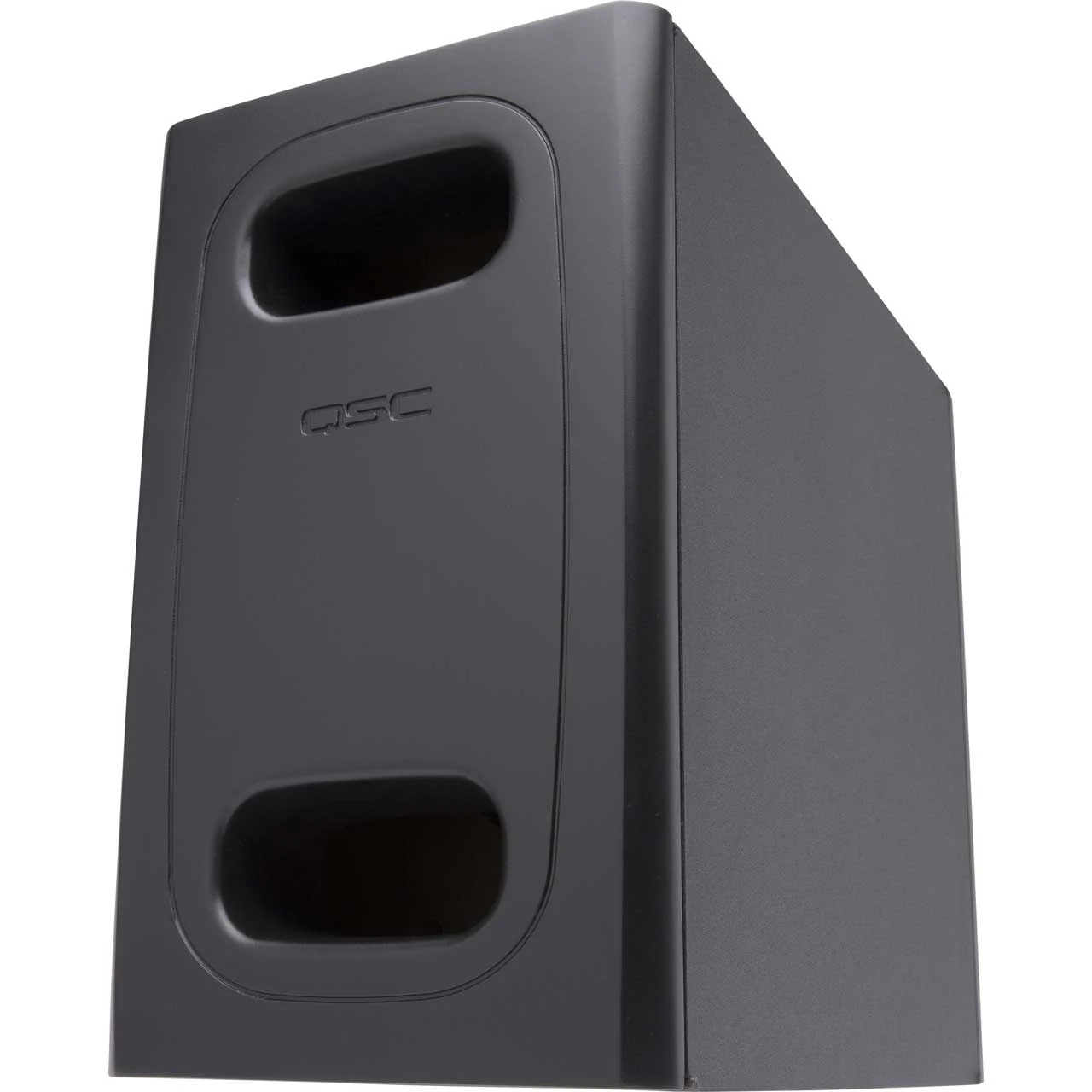

The QSC AD-S.SUB is part of the AcousticDesignâ„¢ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.
The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family inceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.
The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.
The AD-S.SUB features a high quality 6.5-inch weather treated paper cone woofer on a dual voice-coil for improved thermal dissipation and higher output within a small form factor.
The accurate frequency response of the AD-S.SUB is maintained even in 70 / 100 V applications by use of a low-loss, lowsaturation 100 W transformer with selectable taps, including 4 Ω bypass in mono mode.
The AD-S.SUB includes built-in high-pass filtered outputs for connecting up to four AcousticDesign Series satellite loudspeakers. This feature greatly reduces system setup, amplifier channel count, and allows for ease of wiring.
-
Features:
- Dual voice-coil for improved thermal dissipation and higher output
- Low saturation and low-loss 70/100 V transformers in mono mode
- Low-Z mono or stereo configurable
- 4x built-in high-pass filtered outputs
- Locking 4-pole Euroblock connectors
- Reversible rear panel cover with cable tie anchors
- Reversible V-wall mount hardware
- Intrinsic Correctionâ„¢ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
-
Specifications:
- LF transducer: 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer
- HF transducer: N/A
- Effective frequency range: 45 Hz – 150 Hz
- Rated noise power / voltage: 100 W / 20 V (rms)
- Sensitivity [dB]
- (rated @ 1 W, 1 m): 86
- Coverage (-6 dB) [°]: Omni
- Maximum SPL [dB](continuous / peak): 100 / 106
- Recommended amplifier: 100 W

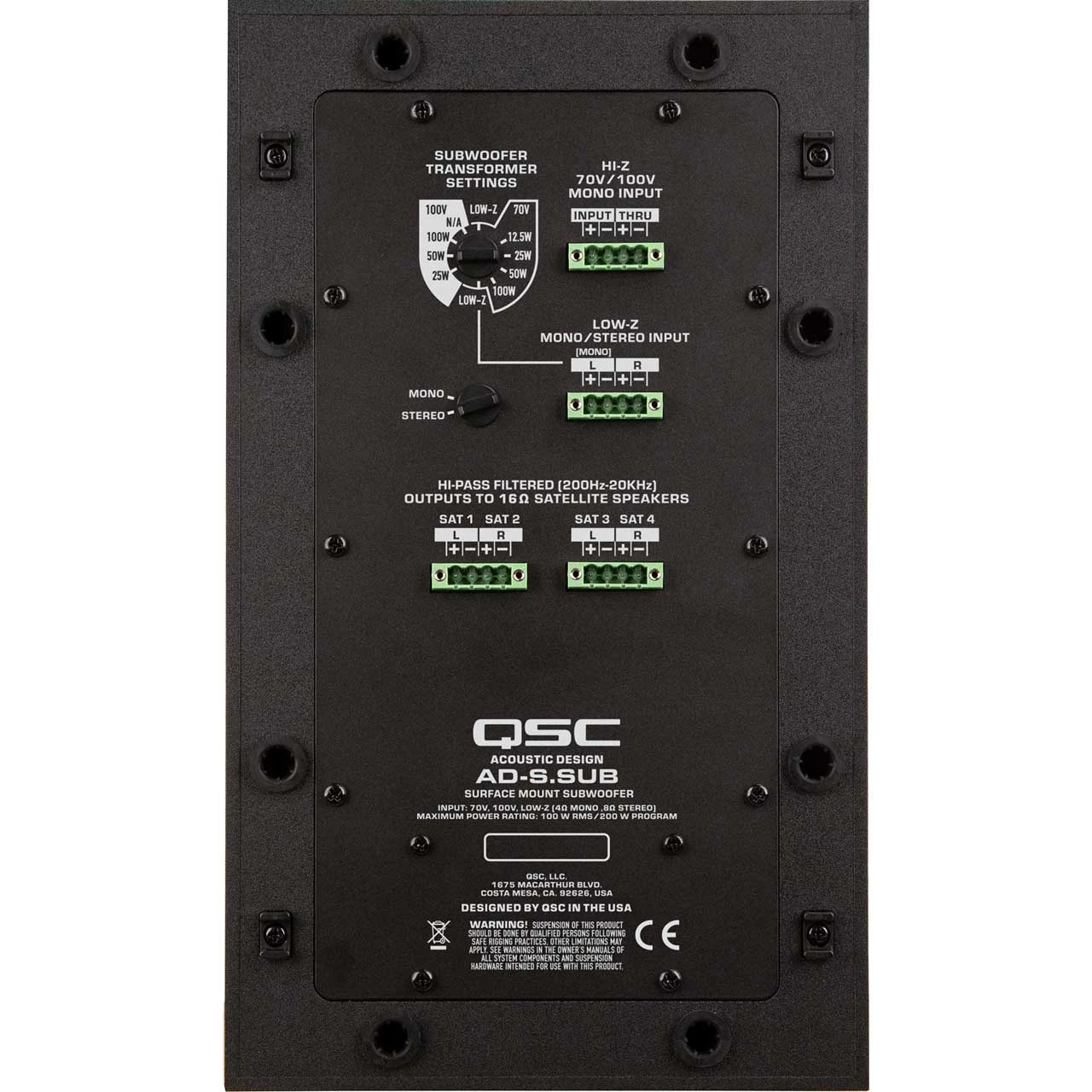

- Transformer taps / impedance: 70 V: 100, 50, 25, 12.5 W (mono only); 100 V: 100, 50, 25 W (mono only)
- Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo
- Connectors: Hi-Z mono input: 4-pole Euroblock with thru output
- Low-Z input: 4-pole Euroblock, left (mono) and right
- Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites
- Enclosure material: Vinyl wrapped medium density fiberboard
- Port baffle / cover panel: ABS
- Operating environment: Designed for indoor use
- Operating temperature range: -4 to 122° F (-20 to 50° C)
- Net weight: 23.6 lb (10.7 kg)
- Product dimensions (Ø x H): 13.8 x 8.2 x 17-inch (350 x 209 x 432 mm)
- Included accessories: V-wall bracket, 4x euroblock connector, rear cover panel, adhesive rubber feet
- Safety agency: Transformer UL registered per UL1876, ROHS, CE compliant
-
Item Includes:
- V-wall bracket
- 4x euroblock connector
- Rear cover panel
- Adhesive rubber feet
-
GTIN:
0684284075925
