RDL D-J1 Microphone Input Assembly
Original price was: $68.16.$47.71Current price is: $47.71.
- Get the quality you deserve, for less.
- Quality You Can Trust
- Efficiency meets excellence in customer care.
- Safe Payments, Happy Customers
D-J1 – Overview

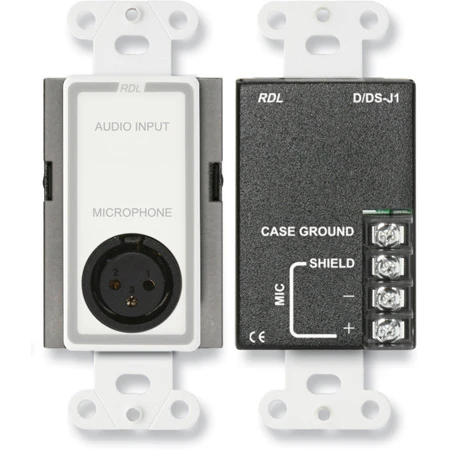

The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front‑panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and – (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
-
Features:
- Wall Mounted Microphone Input Panel
- XLR Input Connector with Gold Contacts
- Barrier Block Wiring Connections
- Ground-Lift Terminals on Barrier Block
-
Specifications:
- Input Connector: XLR female gold contacts
- Output Connector: Barrier block
- Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), – (XLR pin 3)
- Power Requirement: Passive
- Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
- Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
- Package Type: Cardboard Box
- Package Dimensions: 3.625 x 4.625 x 2.125 in.
- Shipping Weight: 0.43 lbs.
- WEEE weight: 0.28 lbs.
- Tariff code: 8536.69.4030
-
GTIN:
0813721015242
