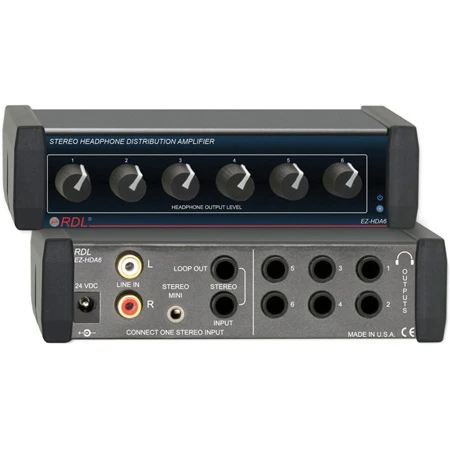

RDL EZ-HDA6 1×6 Stereo Headphone Distribution Amp – Rear-Panel Outputs

Original price was: $252.23.Current price is: $97.99.

SKU: BWFYA 23886982 Categories: Audio Monitoring, Headphone Amplifiers

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

EZ-HDA6 – Overview

The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

Features:
- One Stereo Input to Six Stereo Outputs
- Unbalanced Inputs on Rear Panel
- Input on MINI, 1/4″ (6.3 mm) or RCA Jacks
- LOOP OUT Jack for 1/4″ (6.3 mm) Input
- 1/4″ (6.3 mm) Headphone Outputs on Rear Panel
- Front-Panel LEVEL Control for Each Output
- Gold-Plated RCA Input Connectors
- Each Output is Driven Separately
- Knobs for Easy Level Adjustment
Specifications:
- Inputs (3): Stereo on dual RCA jacks, stereo mini jack or 1/4″ (6.3 mm) TRS, > 10 k?, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4″), -16 dBV nominal, +2 dBV max. (Mini)
- Stereo input LOOP OUT on 1/4″ (6.3 mm) TRS
- Level control: Off to +2.5 dB gain (RCA and 1/4″ inputs, 100 Ohm output load), Off to +9 dB gain(Mini input, 100 Ohm output load)
- Outputs (4): Stereo on Mini jacks (front panel), 60 mW (100 Ohm load)
- Frequency Response: 20 Hz to 50 kHz (±1.5 dB)
- THD+N: 0.1% (10 mW output, 100 Ohm load)
- Crosstalk: -75 dB (1 kHz)
- Noise: -95 dB (below 10 mW output, 100 ?load, maximum gain)
- 24 Vdc power supply current: 40 mA (idle), 65 mA (max.)
- Case dimensions: 5.75″ (14.6 cm)W x 3″ (7.6 cm)D
- Mounting size: 1/3 rack width.
- Power supply included
GTIN:

0813721010070
