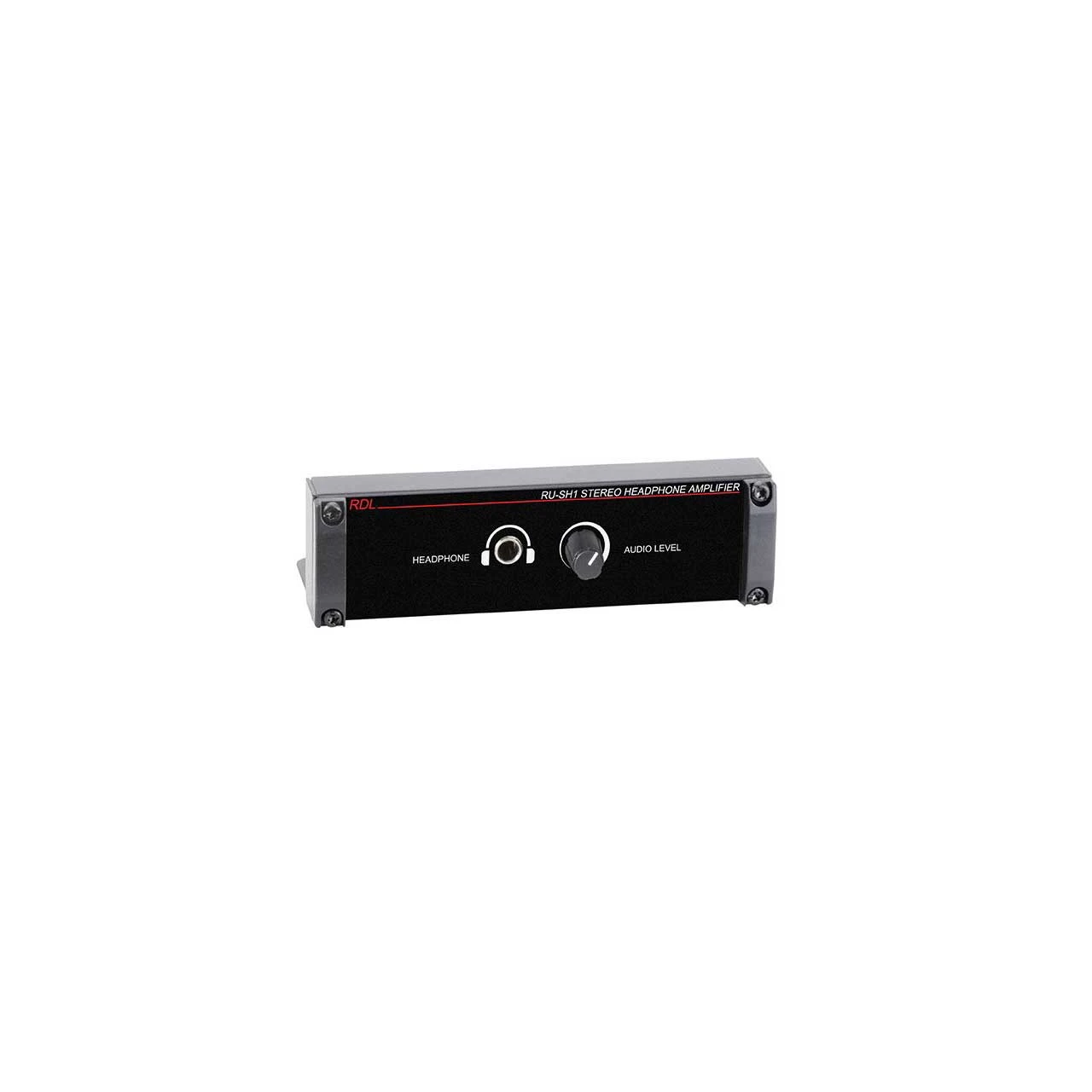

RDL RU-SH1 Stereo Headphone Amplifier - Rack-Up Series

RDL RU-SH1 Stereo Headphone Amplifier - Rack-Up Series - Image 2

RDL RU-SH1 Stereo Headphone Amplifier – Rack-Up Series

Original price was: $221.79.Current price is: $97.99.

SKU: BWFYA 50159825 Categories: Audio Monitoring, Headphone Amplifiers

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

RU-SH1 – Overview

The original 1/3 rack width 1RU rack-mountable modules for the A/V, recording and broadcast industries!

The RDL RU-SH1 is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. The module mounts in RACK-UP series rack mounts or in various RDL mounting accessories. The RU-SH1 is a dual channel headphone amplifier with balanced/unbalanced left and right inputs. Each input accepts operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the top of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mode switch selects between stereo and mono operation. In the mono position, the left input is used to drive both output channels. When the module is used in a monaural system, only the left channel input must be wired.

The front panel level control is a long-life potentiometer controlling matched VCAs. Audio does not pass through this control, assuring years of noise-free level adjustment. The output amplifiers deliver more than 50 mW into either high or low impedance headphones through a durable, metal 1/4″ (6.3 mm) standard headphone jack. Module operation is from a 24 Vdc ground-referenced power supply. It can also operate from a 12 Vdc supply with a 6 dB reduction in headroom and a maximum output power of 10 mW.

Features:
- Rack-Mounted Headphone Amplifier
  RACK-UP Series Headphone Amplifier
  Integral Long-Life VCA Stereo Level Control
  Balanced or Unbalanced Inputs
  Switch-Selectable Input Sensitivity
  Switch-Selectable Mono (Left) or Stereo Operation
  Amplifier To Drive High or Low Impedance Headsets
Specifications:
- Inputs (2): 10 kO balanced or unbalanced bridging
- Input Level: +4 dBu nominal (Low input sensitivity), -15 dBV nominal (High input sensitivity).
- Maximum Input Level: +21 dBu (Low input sensitivity), +3 dBu (High input sensitivity).
- Output Signal (normal rated): 10 mW into 100 O.
- Output Signal (maximum): 50 mW into 100 O.
- THD+N: 0.5% @ 1 kHz
- Frequency Response: 30 Hz to 20 kHz (± 2 dB)
- Noise: -70 dB below normal operating level
- Gain: User-adjustable on front panel; 18.5 dB (maximum, High input sensitivity); Unity (maximum, Low input sensitivity).
- CMRR: > 60 dB (50 to 120 Hz).
- Crosstalk: Below noise floor (20 Hz to 20 kHz).
- Ambient Operating Environment: 0° C to 55° C.
- Power Requirement: GROUND-REFERENCED, 24 Vdc @ 50 mA.
- Package Type: Cardboard Box.
- Package Dimensions: 6.75 x 2.25 x 2 in.
- Shipping Weight: 0.555 lbs.
- WEEE weight: 0.43 lbs.
