RDL SF-NH1 Network To Stereo Headphone Amplifier – Bstock (New Item But Older Version That Will Not Output AES67)
Original price was: $293.19.$96.99Current price is: $96.99.
- Get the quality you deserve, for less.
- Quality You Can Trust
- Efficiency meets excellence in customer care.
- Safe Payments, Happy Customers
RDL-SF-NH1-BS – Overview

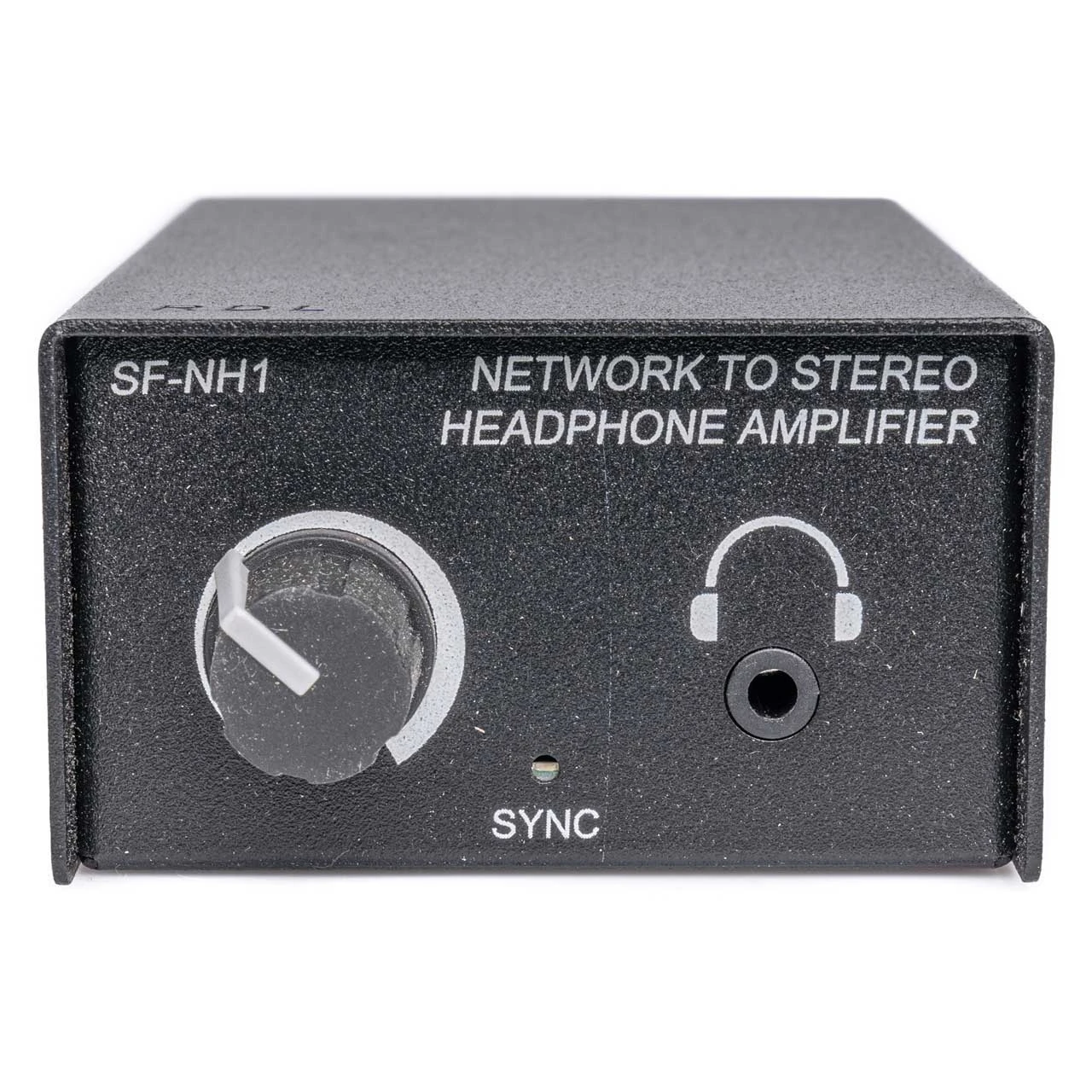

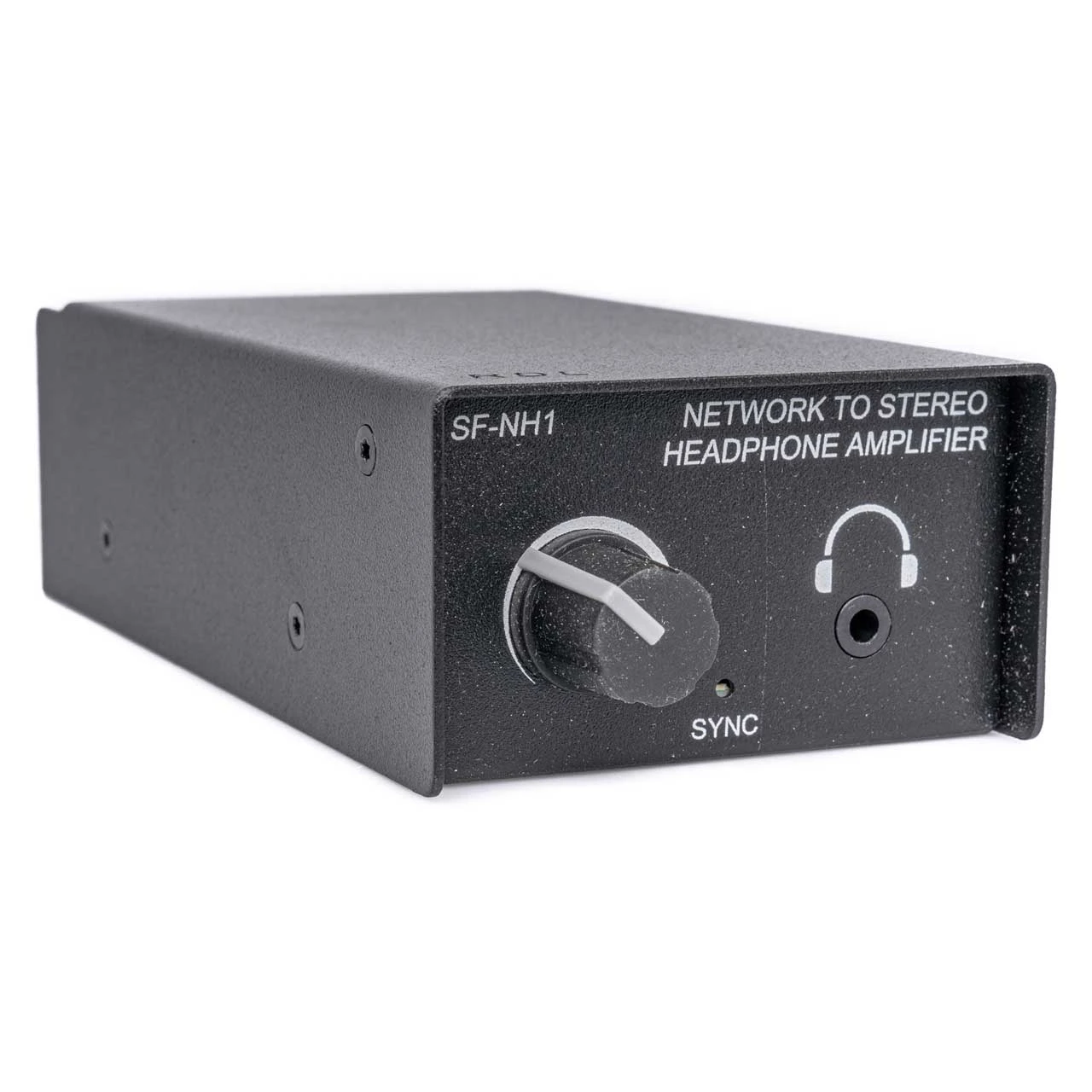

The SF-NH1 is a headphone amplifier that converts two Dante network audio channels to a stereo headphone output with front-panel level adjustment. The output connects through a stereo 3.5 mm Mini-jack. Each channel provides 100 mW into 100 ohms for a network digital audio level of 0 dBFS. Special software is not required to configure the module. The SF-NH1 is a professional grade product for studio quality fidelity and low noise performance.

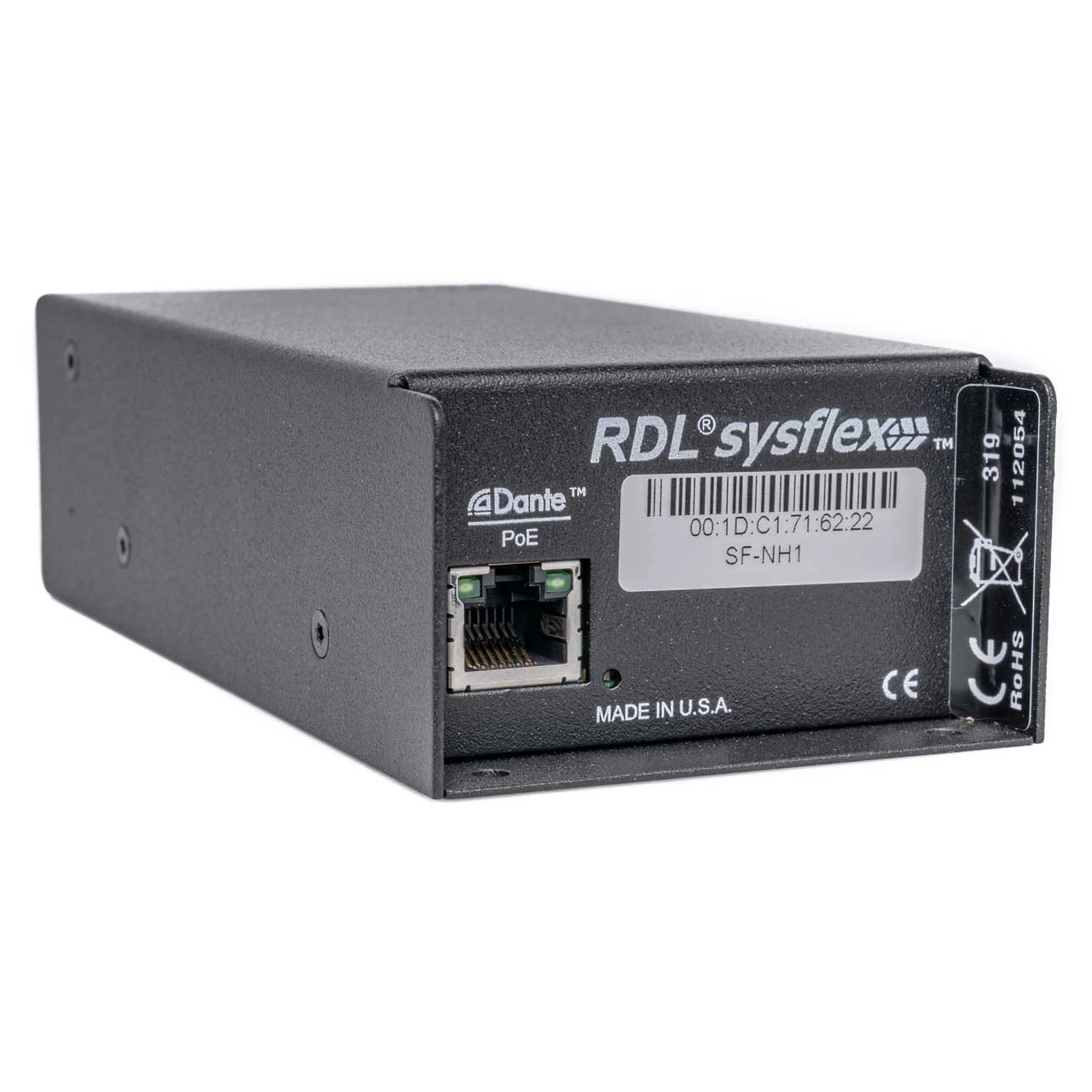

The SF-NH1 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit. The SF-NH1 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.
Please Note: This item is brand new but is an older version that will not output AES67
-
Features:
- Converts Two Dante Network Audio Signals to a Stereo Headphone
- Output on Professional Quality 3.5 mm stereo MINI Jack
- Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Front-Panel Output Level Control
- Special Software Not Required for Module Setup
- Exceptional Low-Noise and Low-Distortion Performance
- High Resolution 24 Bit Digital to Analog Conversion
- Legendary RDL Analog Filtering Enhances Superb Audio Performance
- LED Indicator for Valid Power and Network Sync
- Operation from PoE Power (Class 0, IEEE 802.3af)
- Equipped for SysFlex Rack Mounting or Surface Mounting
Bstock – This item is brand new but is an older version that will not output AES67.
-
Specifications:
- Digital Audio Ethernet Protocol: Dante
- Transmission Rate: 100 Mbps
- Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
- Bit Depth Supported: 24 bits
- Reference Level: 0 dBFS = 150 mW into 100 Ω
- Outputs (2): Mini-jack Stereo (L and R)
- Output Level (maximum): 0 dBFS = 150 mW into 100 Ω
- Output Impedance: 50 Ω
- Frequency Response:20 Hz to 20 kHz (± 0.5 dB)
- THD+N: 0.05% (20 Hz to 20 kHz, -20 dBFS); 0.015% at 1 kHz (typ)
- Noise: -75 dB (below -20 dBFS); -95 (below 0 dBFS)
- Crosstalk: -80 dB (1 kHz, -20 dBFS)
- Headroom above -20 dBFS: 20 dB
- Indicators (3): Ethernet Link and Speed (2, rear panel); Sync (front panel)
- Ambient Operating Environment: 0° C to 50° C
- Power Requirement: PoE Class 0, IEEE 802.3af
- Specification Conditions: Gain/Level: ± 1 dB
- Dimensions: 2.79″ W x 1.68″ H x 5.77″ D
- Package Dimensions: 7 x 4.375 x 2.25 in.
- Shipping Weight: 1.09 lbs.
- WEEE weight: 0.88 lbs.
-
GTIN:
0813721019844
