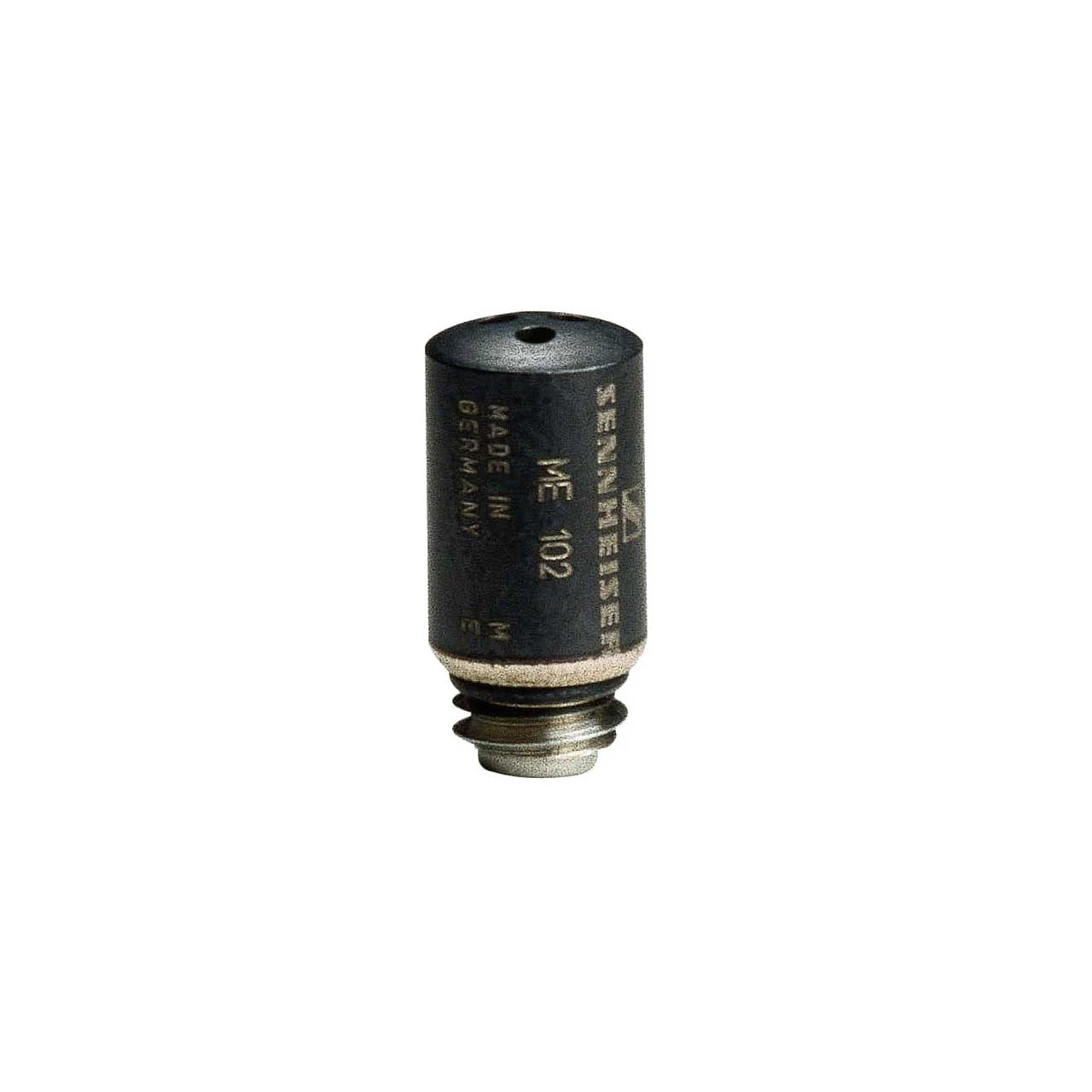

003876 – Overview
The ME 102 modular mini-microphone capsule fulfills professional demands for sound quality and rugged handling, and is suitable for all areas of live work where a small and unobtrusive microphone is needed for vocal and speech applications. Scratch resistant matte finish: anthracite or nickel.
-
Features:
- Excellent speech clarity
Gently falling frequency response curve at low frequencies ensures good rejection of handling and wind noise
Minimal inherent self-noise

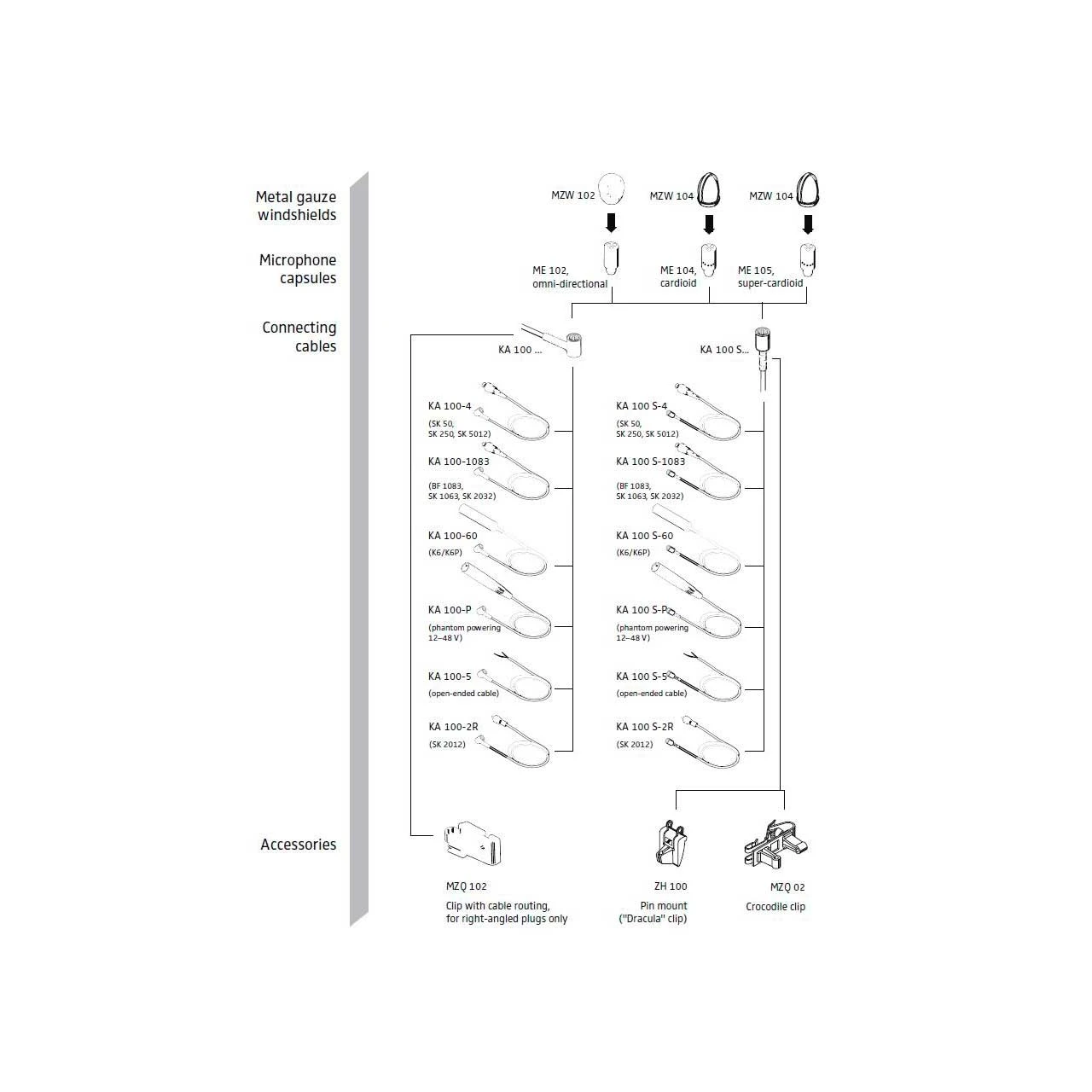

Omni-directional or cardioid microphone capsules, can be quickly interchanged

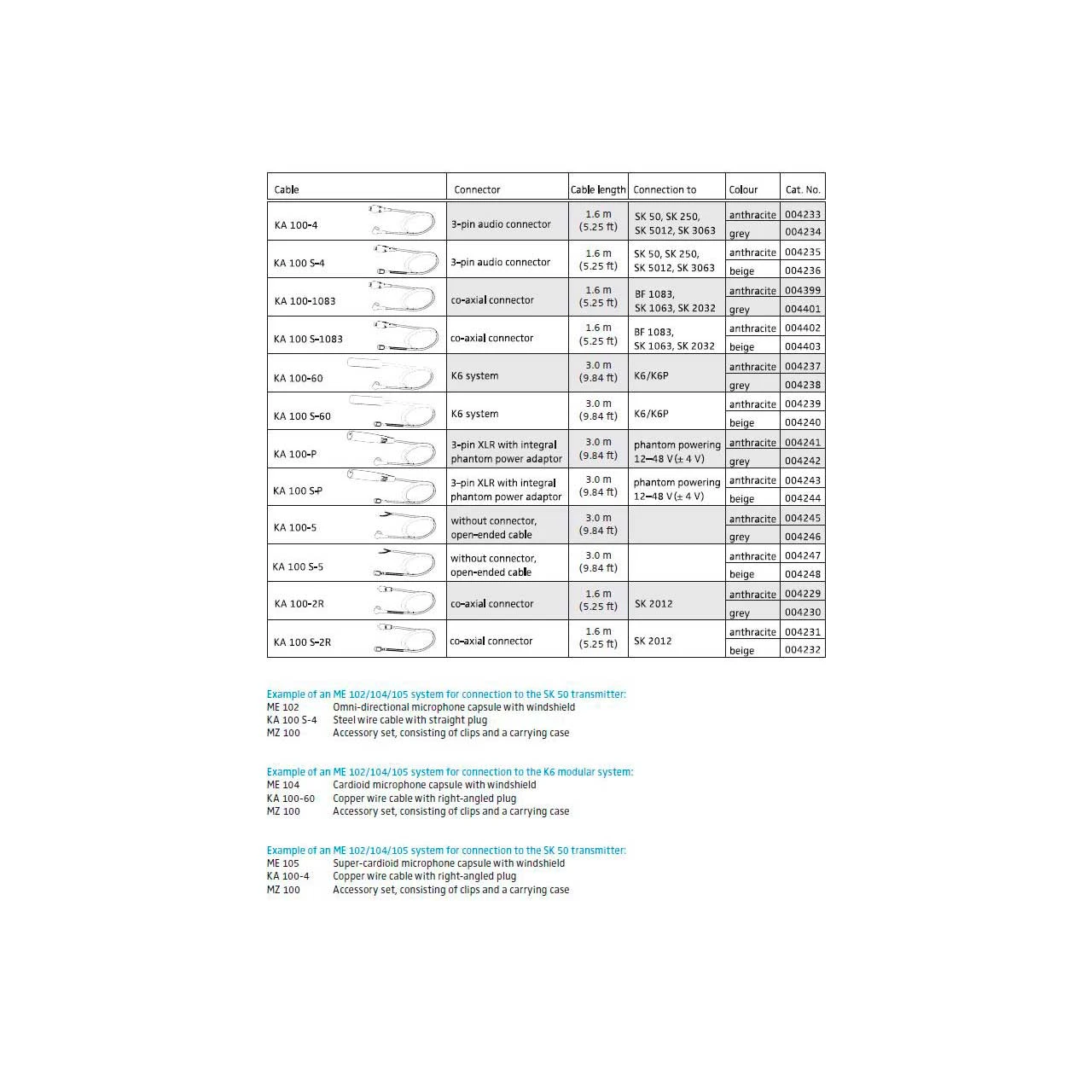

Optionally available with right-angle plug (copper wire cable, extremely insensitive to handling noise) or with straight plug (steel wire cable, very resistant to tearing)
Connectors available in straight black, straight beige, right-angle black, right-angle gray
- Excellent speech clarity
-
Specifications:
- Sensitivity in free field, no load (1kHz): 10 mV/Pa +/- 2,5 dB
- Nominal impedance: 1000 Ohms
- Min. terminating impedance: 4700 Ohms
- Equivalent noise level: 21 dB
- Frequency response (microphone): 40…..20000 Hz
- Equivalent noise level weighted as per CCIR 468-3: 33 dB
- Maximum sound pressure level (passive): 127 dB (K = 1%)
-
GTIN:
0615104038769
