MX415RLPDF/C – Overview

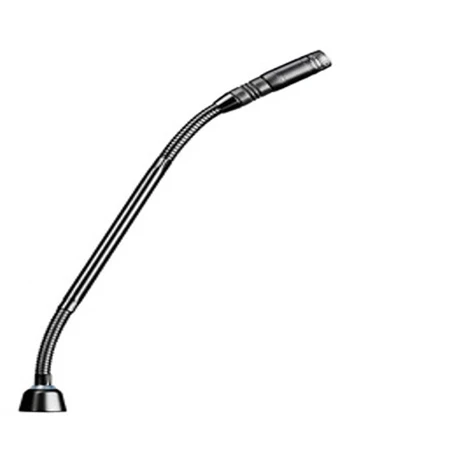

Flexible in more ways than one, Microflex Modular Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications.
Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, itβs easy to get the perfect fit for your conferencing installation. Fully compatible with SLX wireless systems, including the SLX4L wireless receiver with logic output for applications requiring logic functionality.
-
Features:
- Cardioid and supercardioid polar patterns
- Bi-color status indicator or single color light ring
- Surface-mount and wired or wireless desktop base options
- CommShield Technology for improved RF filtering
-
Specifications:
- Type: Condenser (electret bias)
- Frequency Response: 50β17000 Hz
- Output Impedance: EIA Rated at 170
- Sensitivity (at 1 kHz, open circuit voltage): Cardioid: β35 dB V/Pa (17.8 mV) / Supercardioid: β33.5 dB V/Pa (21.1 mV ) / Omnidirectional: β27.5 dB V/Pa (42.2 mV ) 1 Pascal=94 dB SPL
- Equivalent Output Noise (A-weighted): Cardioid: 28 dB SPL / Supercardioid: 26.5 dB SP L / Omnidirectional: 20.5 dB SPL
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): Cardioid: 66 dB / Supercardioid: 67.5 dB / Omnidirectional: 73.5 dB
- Power Requirements: 48β52 Vdc phantom, 8.0 mA
-
GTIN:
0042406494519
