Shure P3TR112TW-H20 PSM300 Twin Pack – Wireless In-Ear Monitoring System – H20 Freq

P3TR112TWH20 – Overview

The ideal monitoring solution for up to two performers.

• Features:

  • PSM 300 Personal Monitor System
  • Send two channels of audio wirelessly to performers onstage
  • 24-bit digital audio provides clear, detailed sound
  • Patented Audio Reference Companding sounds more like wired
  • Up to 90dB signal-to-noise ratio
  • Exceptionally wide stereo separation
  • Solid analog RF connection over a 300′ (90m) range
  • Create a personal mix from the body-pack with MixMode® technology or stereo mode
  • Frequency scan and IR sync quickly finds and assigns a clean channel
  • Half-rack, single channel transmitter with included rack mount kit
  • P3R body-pack systems available with SE112 Sound Isolating™ Earphones
  • P3RA professional body-pack systems available with SE215 Sound Isolating™ Earphones

    P3T Wireless Transmitter

  • Single channel, half-rack transmitter with included rack mount kit
  • Sends a stereo or mono mix wirelessly to performers onstage
  • Rock-solid wireless connection to P3R receiver over 300 ft (90 m) range
  • One-touch IR sync instantly links transmitter to receiver
  • Up to 30 mW output power (region dependent)
  • 24 MHz tuning range (region dependent)
  • ¼” (6.3 mm) TRS balanced inputs and loop outputs
  • High-contrast LCD menu with detailed L/R audio output meters
  • Detachable antenna
  • External power supply
  • Selectable line/aux level

    P3R Wireless Body-pack Receiver

  • Slim, lightweight, durable form factor
  • Frequency scan and IR sync quickly finds and assigns a clean channel
  • MixMode® technology enables adjustment of two independent monitoring mix levels
  • Stereo mode enables adjustment of left/right balance
  • Easy to adjust volume knob and mix control
  • 2 AA batteries provide up to 6 hours of continuous operation
  • Power save mode preserves battery life when earphones are not connected
  • Power and battery status LED

    SE112-GR Sound Isolating™ Earphones

  • Single dynamic driver delivers great sound performance in a discrete, durable design
  • Sound Isolating™ design featuring fit kit with a variety of sleeves blocks up to 37 dB of outside noise so you can hear the details of your music
  • Fixed cable design allows for earphones to be worn over the ear or hanging down for long-wearing comfort
  • Includes a carrying pouch and fit kit with selection of sleeves
  • Designed to withstand the rigors of live performance with two-year warranty


• Specifications:

  • PSM 300 Personal Monitor System
  • RF Carrier Range: 488-937.5MHz (Varies by region, see frequency range and output power table)
  • Compatible Frequencies (Per band): up to 15
  • Tuning Bandwidth: 24MHz maximum (Note: varies by region)
  • Operating Range (Environment dependent): 90m (300′)
  • Audio Frequency Response: 38Hz-15kHz
  • Signal-to-Noise Ratio (A-weighted): 90dB (typical)
  • Total Harmonic Distortion (ref. ±34kHz deviation @1kHz): 0.5% (typical)
  • Companding: Patented Shure Audio Reference Companding
  • Spurious Rejection (ref. 12 dB SINAD): >80dB (typical)
  • Frequency Stability: ±2.5ppm
  • MPX Pilot Tone: 19kHz (±1Hz)
  • Modulation: FM*, MPX Stereo (ref. ±34kHz deviation @ 1kHz)
  • Operating Temperature: 0 ° to 145 °F (-18 ° to +63 °C)

    P3T Wireless Transmitter

  • RF Output Power: 10, 20, 30mW

    Note: varies by region

  • RF Output Impedance: 50 Ω (typical)
  • Net Weight: 1.73LBs (783g)
  • Dimensions (HxWxD): 1.7 x 7.8 x 6.8″ (43 x 198 x 172mm)
  • Power Requirements: 12-15V DC, 260 mA maximum

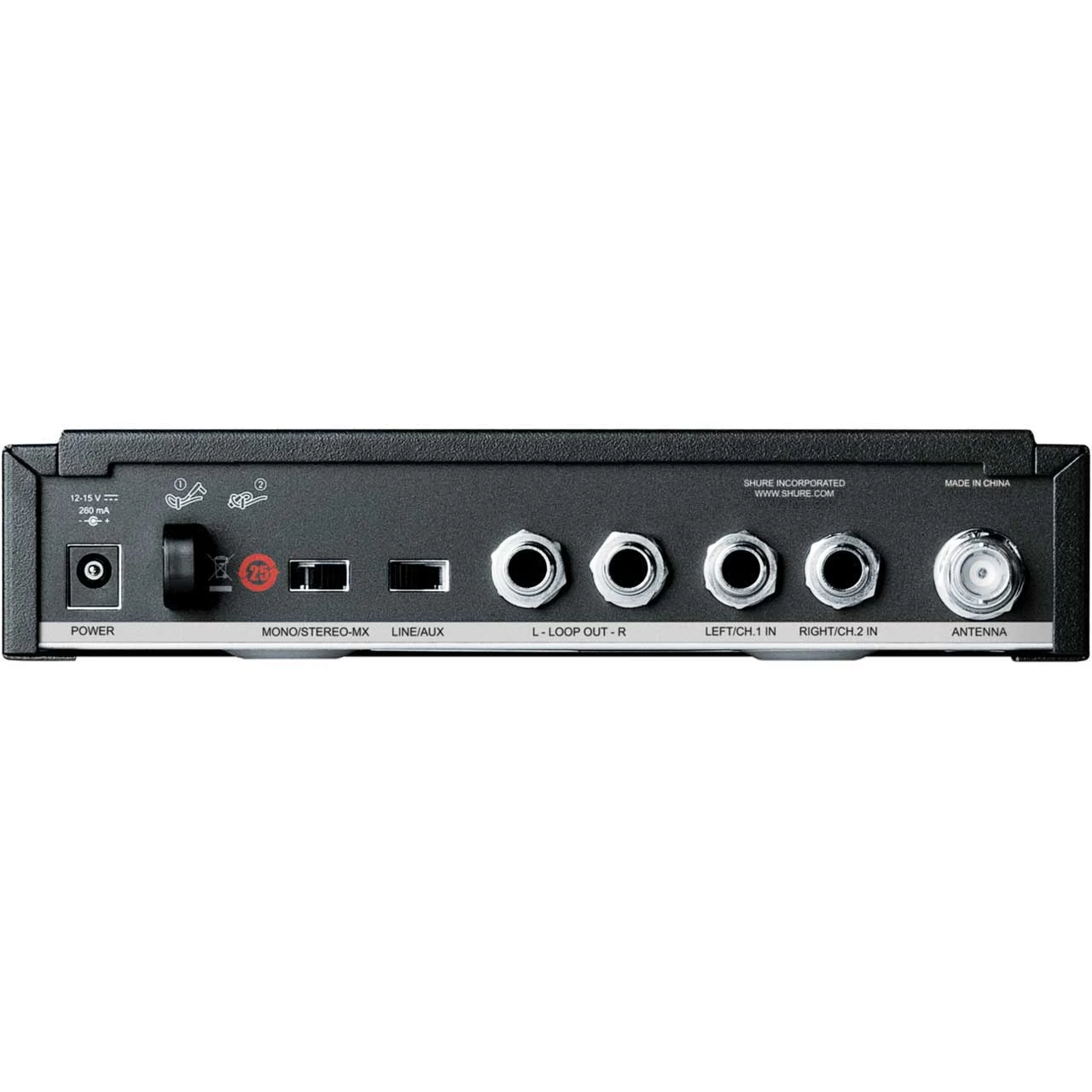

    Audio Input

  • Connector Type: 6.35mm (1/4″) TRS
  • Polarity: Tip positive with respect to ring
  • Configuration: Electronically balanced
  • Impedance: 40kΩ (actual)
  • Nominal Input Level: Switchable, +4dBu, -10dBV
  • Maximum Input Level: +4dBu: +22dBu; -10dBV: +12.2dBu
  • Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
  • Phantom Power Protection: Up to 60V DC

    Audio Output

  • Connector Types 6.35mm (1/4″) TRS
  • Configuration Electronically balanced
  • Impedance Connected directly to inputs

    P3R Wireless Body-pack Receiver

  • Active RF Sensitivity (at 20dB SINAD): 2.2 μV
  • Image Rejection: >90dB
  • Adjacent Channel Rejection: >60dB
  • Inter-modulation Attenuation: >50dB
  • Blocking: >60dBAudio Output Power (1 kHz @ 1% distortion, peak power, @32Ω): 80mW (per output)
  • Minimum Load Impedance: 16Ω
  • Headphone output: 3.5mm (1.8″) stereo
  • Net Weight (without batteries): 0.22LBs (98g)
  • Dimension (HxWxD): 4.33 x 2.52 x 0.83″ (110 x 64 x 21mm)
  • Battery Life (continuous use): 5-7 hours, AA batteries

    SE112-GR Sound Isolating™ Earphones

  • Sensitivity: 105 dB SPL/mW
  • Frequency Range: 25Hz – 17kHz
  • Speaker Type: Single Dynamic
  • Impedance: 16Ω

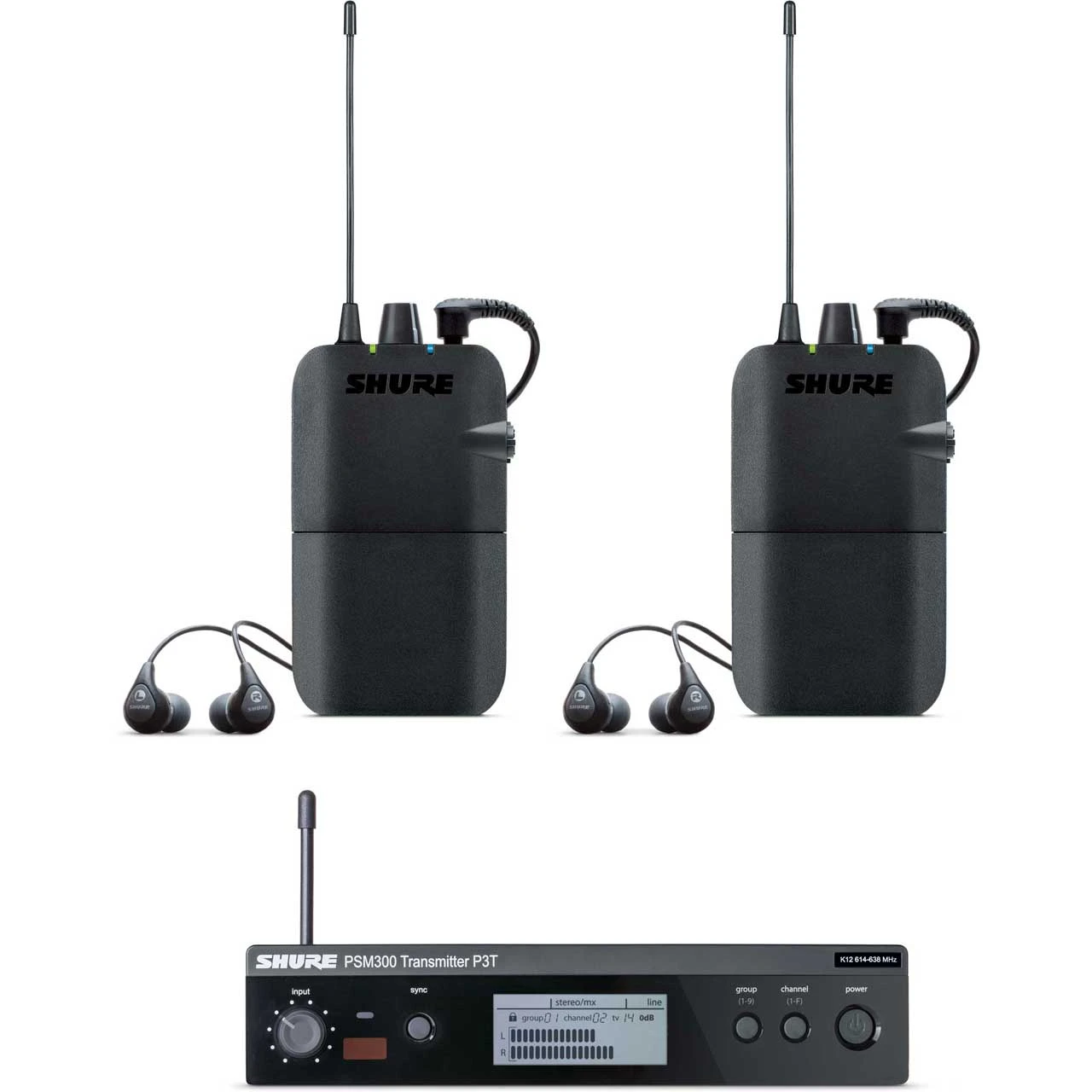

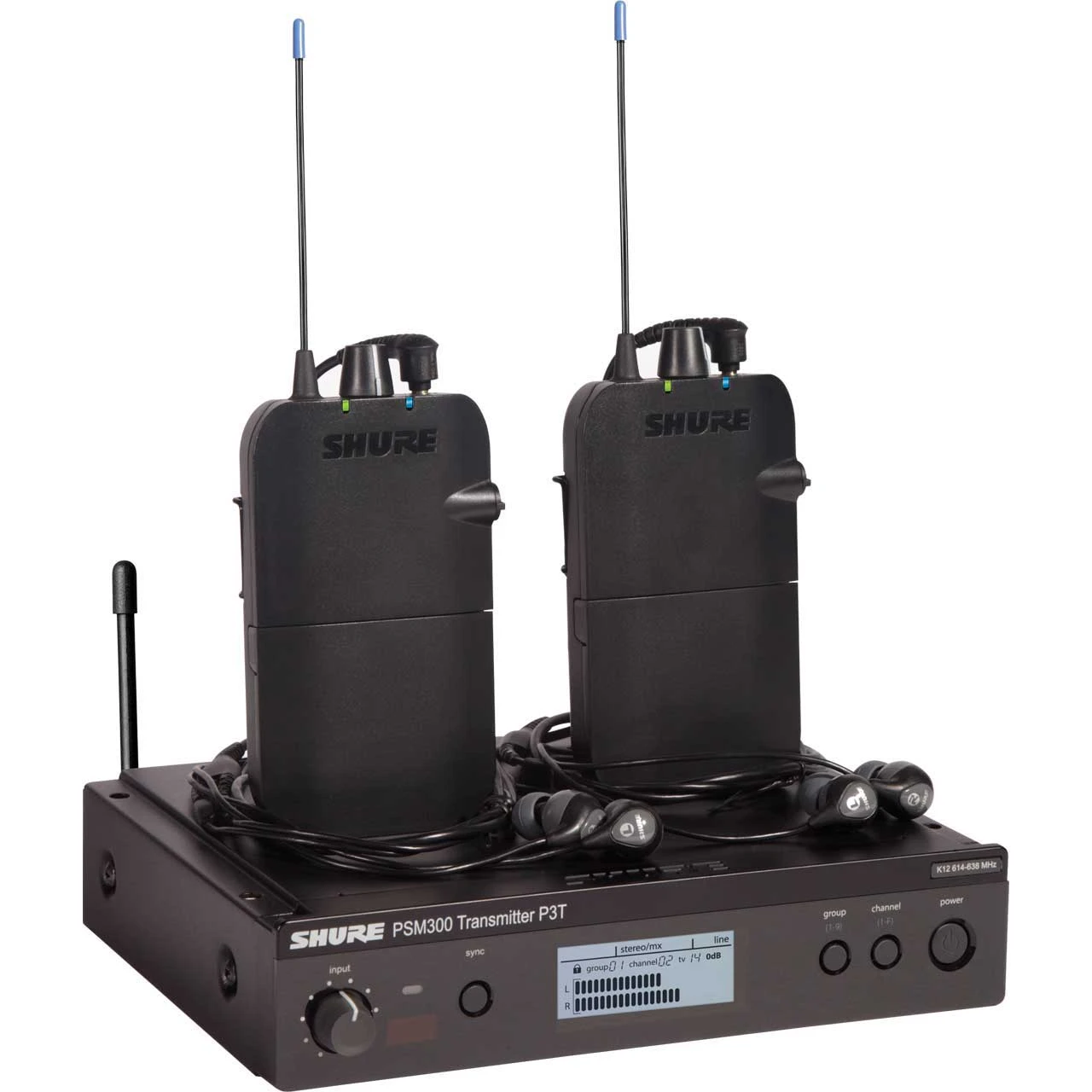

• Item Includes:

  • 1 x PSM 300 Personal Monitor System
  • 1 x P3T WirelessTransceiver
  • 1 x P3R Wireless Body-Pack Receiver
  • 2 x SE112-GR Sound Isolating Earphones


• GTIN:

  0042406591201
