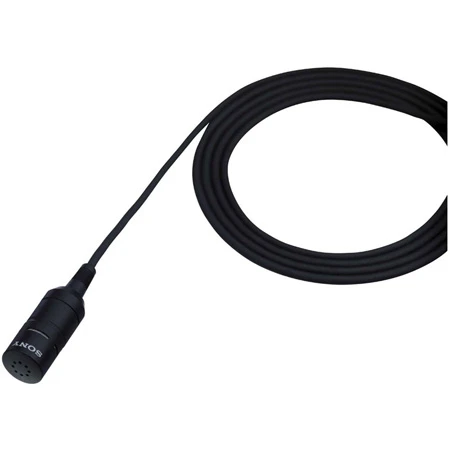

Sony Condenser Lav Microphone

ECM-66B – Overview

• Features:

  • 130 dB SPL maximum input sound pressure level. 130 dB SPL maximum input sound pressure level.
  • Complete with in-line battery unit for 2-way powering. Complete with in-line battery unit for 2-way powering.
  • Frequency response: 70 to 14,000 Hz.
  • Output Connector: XLR-3-12C type.
  • Sensitivity (0d B=1 V/Pa, at 1 kHz): -50.0 dB ± 2 dB.
  • Dynamic Range: Equal to or greater than 101 dB.
  • Signal-to-Noise Ratio (A weighted, 1 kHz, 1 Pa.): Equal to or greater than 65 dB.
  • Wind Noise (w/wind screen): Equal to or less than 50 dB SPL.
  • Battery Life: Approx. 300 hours.


• Specifications:

  • Capsule Type: Electret Condenser
  • Frequency Response: 70 Hz to 14 kHz
  • Directivity: Uni-directional
  • Sensitivity: -50.0dB ± 2dB
  • Dynamic Range: 101dB or more
  • S/N Ratio: 65 dB or more
  • Inherent Noise: (0dB=20µPa) 29 dB SPL or less
  • Induction Noise from External Magnetic Field: 5 dB SPL or less
  • Wind Noise: 50 dB SPL or less (with windscreen, at 2 m/s)
  • Max SPL: (dB SPL)(0dB=20µP) 130 dB SPL
  • Connector B type: Supplied with XLR connector in power supply unit (single AA size battery)
  • Cable Length: 9.8 feet
  • Power Requirements: DC 1.5 V, AA size battery or 48V phantom power
  • Dimensions: 7/16 diameter X 31/32 inch (Microphone head) 13/16 diameter X 6 1/2 inch (Power unit XLR type)
  • Weight: 5.9 oz (Includes Mic and Power Supply)


• Item Includes:

  • Directional Electret Condenser Lavalier Microphone (x 1)
  • S.H. tie clip (x 1)
  • S.V. tie clip (x 1)
  • D.H. tie clip (x 1)
  • M. windscreen (x 1)
  • Operating instructions (x 1)


• GTIN:

  0027242632479
