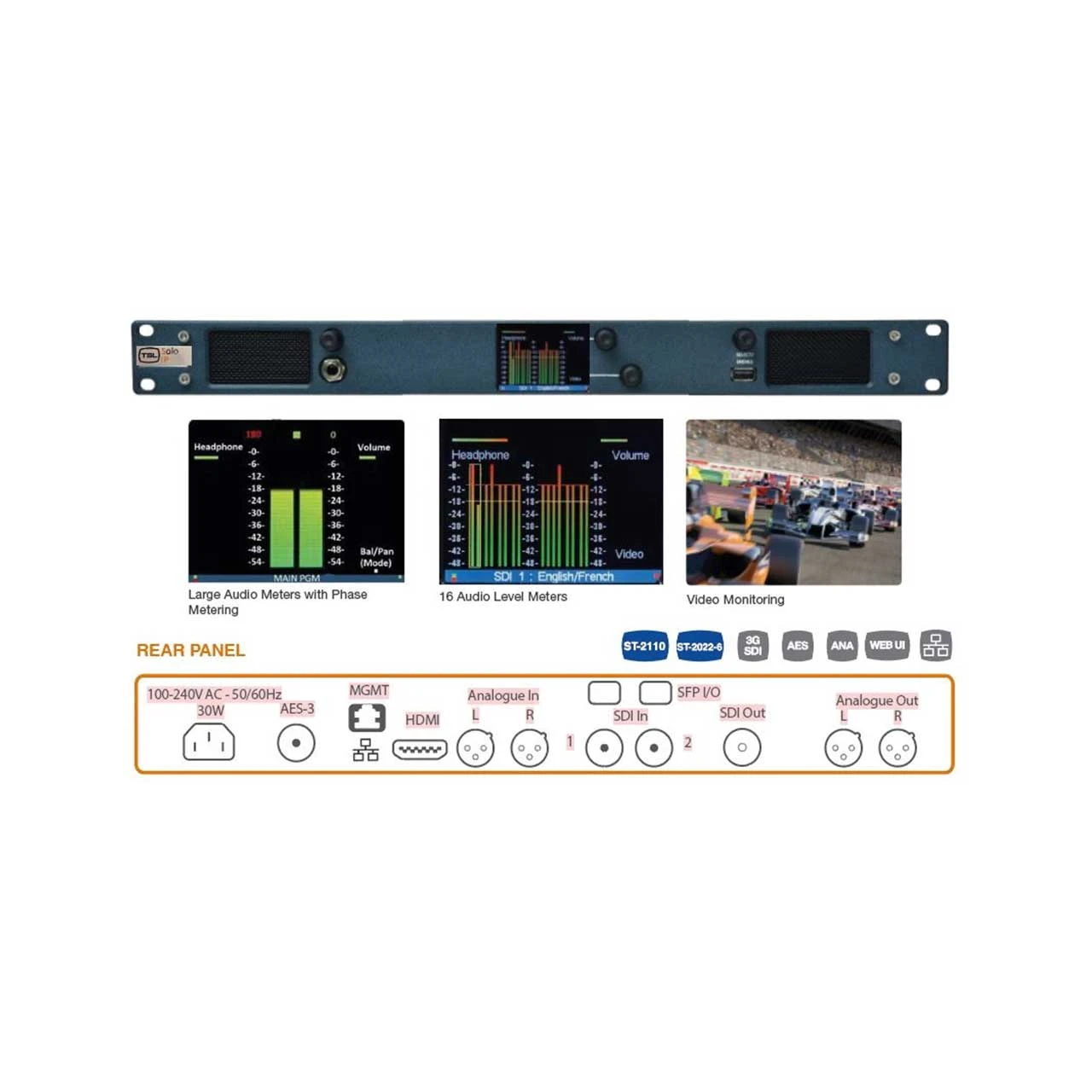

MPA1-SOLO-IP – Overview
As the latest addition to the MPA1 Range, the MPA1-SOLO-IP helps make the transition to IP seamless, providing peace of mind and ease of use in even the most demanding environments.
Featuring 2 SFP cages the MPA1-SOLO-IP allows redundant connectivity to ST-2022-6 / ST-2110 IP networks, in addition to SDI, AES and Analogue inputs also allowing for hybrid monitoring environments.
Tight integration with your control system is made possible through SNMP, Ember+ and NMOS.
-
Features:
- 2 x SFP ports for redundant monitoring of ST-2110 and ST-2022-6 video and audio sources using optional Embrionix Modules. (TSL recommends Riedel MNSet for module configuration).
- Audio monitoring of 16 audio channels, with intuitive `scroll to hear’ selection.
- Front panel video display of 3G/HD/SD sources
- 2 x Balanced Analogue Inputs on XLR connectors.
- 1 x AES3id input on BNC.
- 2 x SFP ports for redundant monitoring of SDI over Fibre (optional SFP’s required).

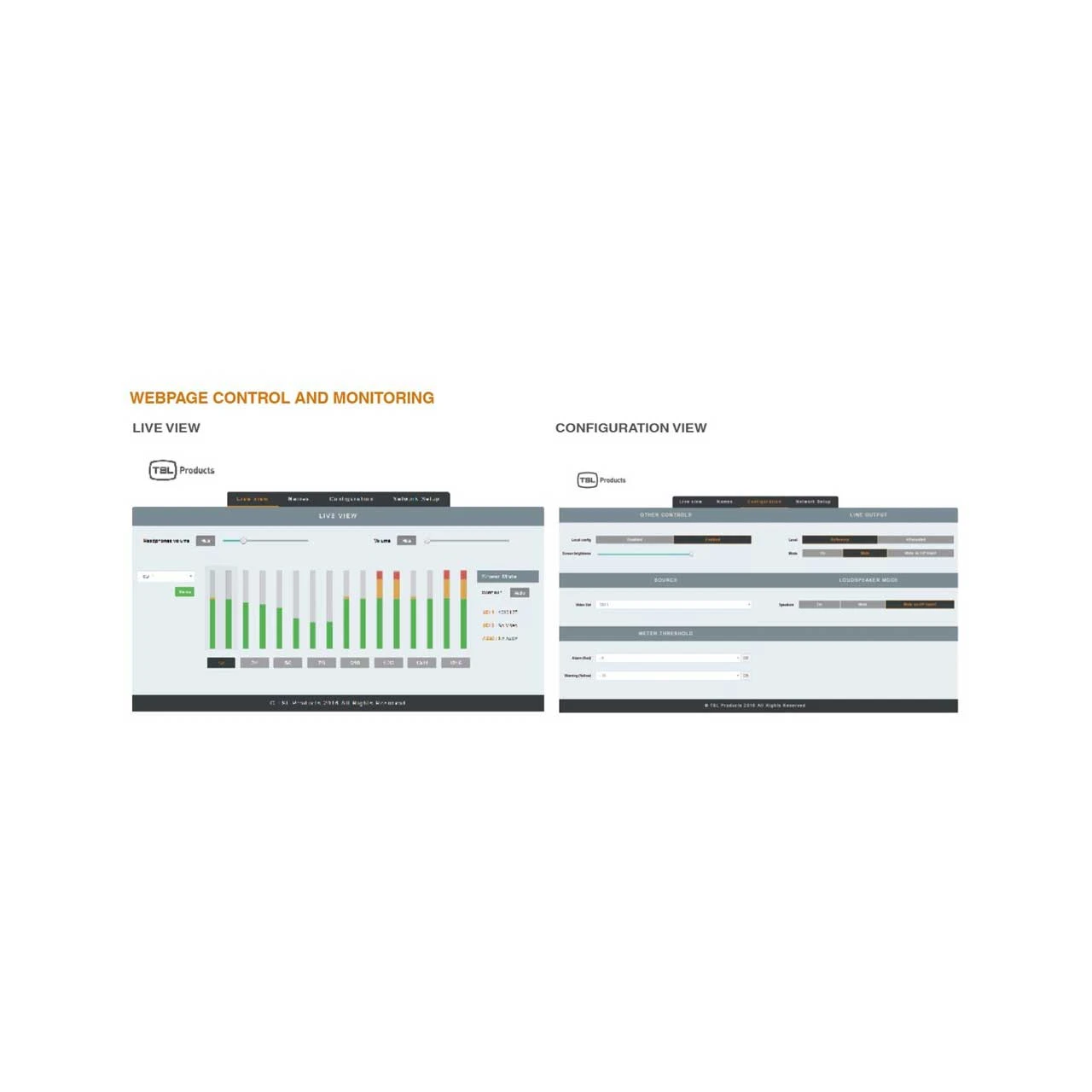

- 1 x Ethernet connection for monitoring and control via a web-browser and SNMP.
-
Specifications:
- Height: 1RU
- Dimensions: 483mm x 45mm x 100mm
- Weight: 1-4kg
- Display: Audio Metering
- 16 Audio channels
- Signal to Noise Ratio: 72dB (+4dBu input level, THD+N A weighted)
- Peak Acoustic Output: 90dB @ 1foot
