Wohler AMP1-2SDAplus 2 Channel 3G/HD/SD-SDI AES Analog Audio Monitor 1RU With Additional 8 Pairs Of Both Analog And AES

Wohler AMP1-2SDAplus 2 Channel 3G/HD/SD-SDI AES Analog Audio Monitor 1RU With Additional 8 Pairs Of Both Analog And AES - Image 2

Wohler AMP1-2SDAplus 2 Channel 3G/HD/SD-SDI AES Analog Audio Monitor 1RU With Additional 8 Pairs Of Both Analog And AES - Image 3

Wohler AMP1-2SDAplus 2 Channel 3G/HD/SD-SDI AES Analog Audio Monitor 1RU With Additional 8 Pairs Of Both Analog And AES

Original price was: $346.00.Current price is: $95.99.

SKU: BWFYA 64957778 Categories: Audio Monitoring, Rackmount Audio Monitors

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

8103-0210 – Overview

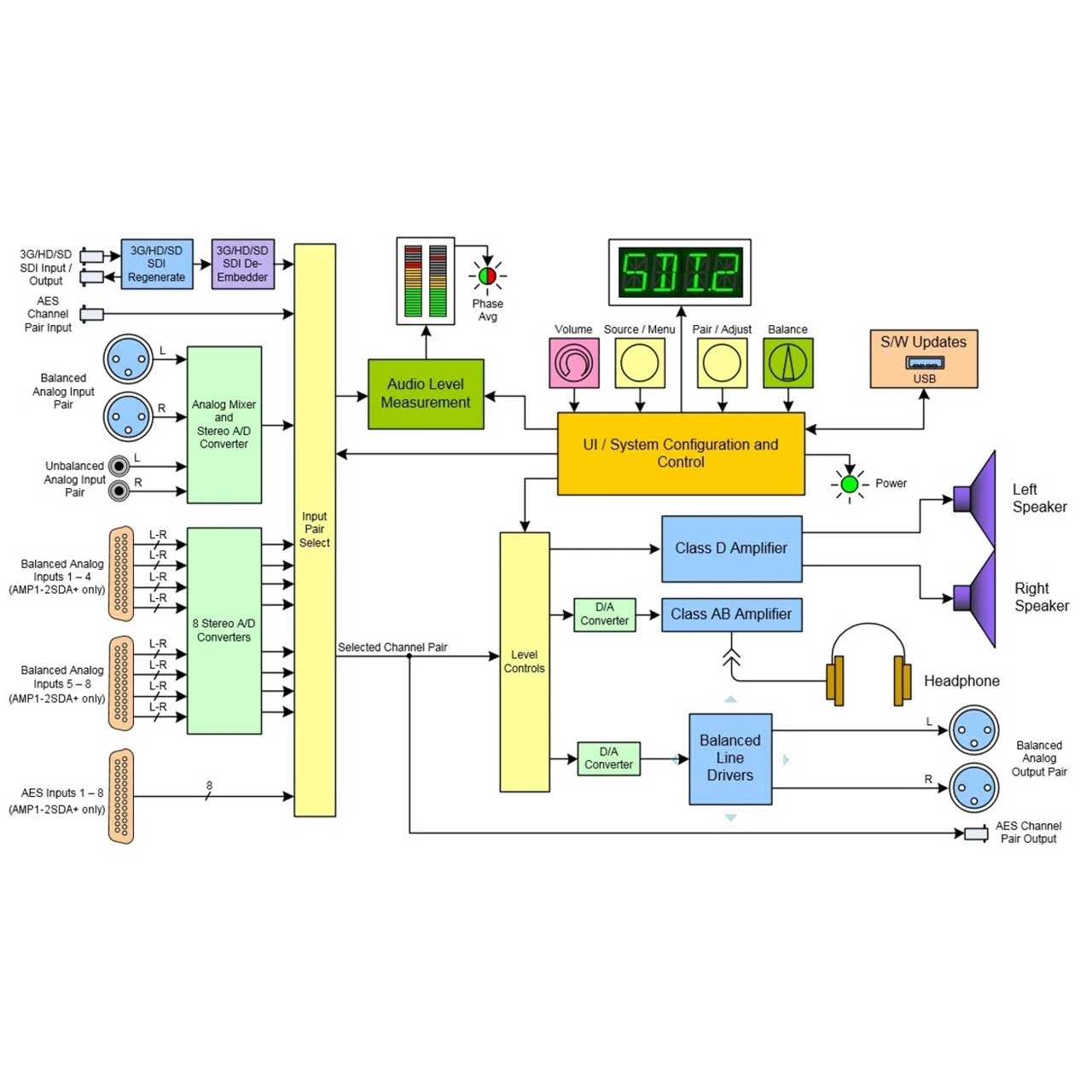

With Wohler’s renowned high quality audio, the AMP1-2SDA+ provides instantaneous selection and monitoring of any available pair of audio from either a 16 channel SDI (with looped output), 1 AES input pair, and either of 2 pairs of Analog inputs (Balanced or Unbalanced). Analog and AES outputs of the selected pair are included. Additional 8 pairs of both Analog and AES on DB-25 inputs. The unit features adjustable volume and balance controls, clear display of levels on two 26 segment LED meters and an average phase indicator.

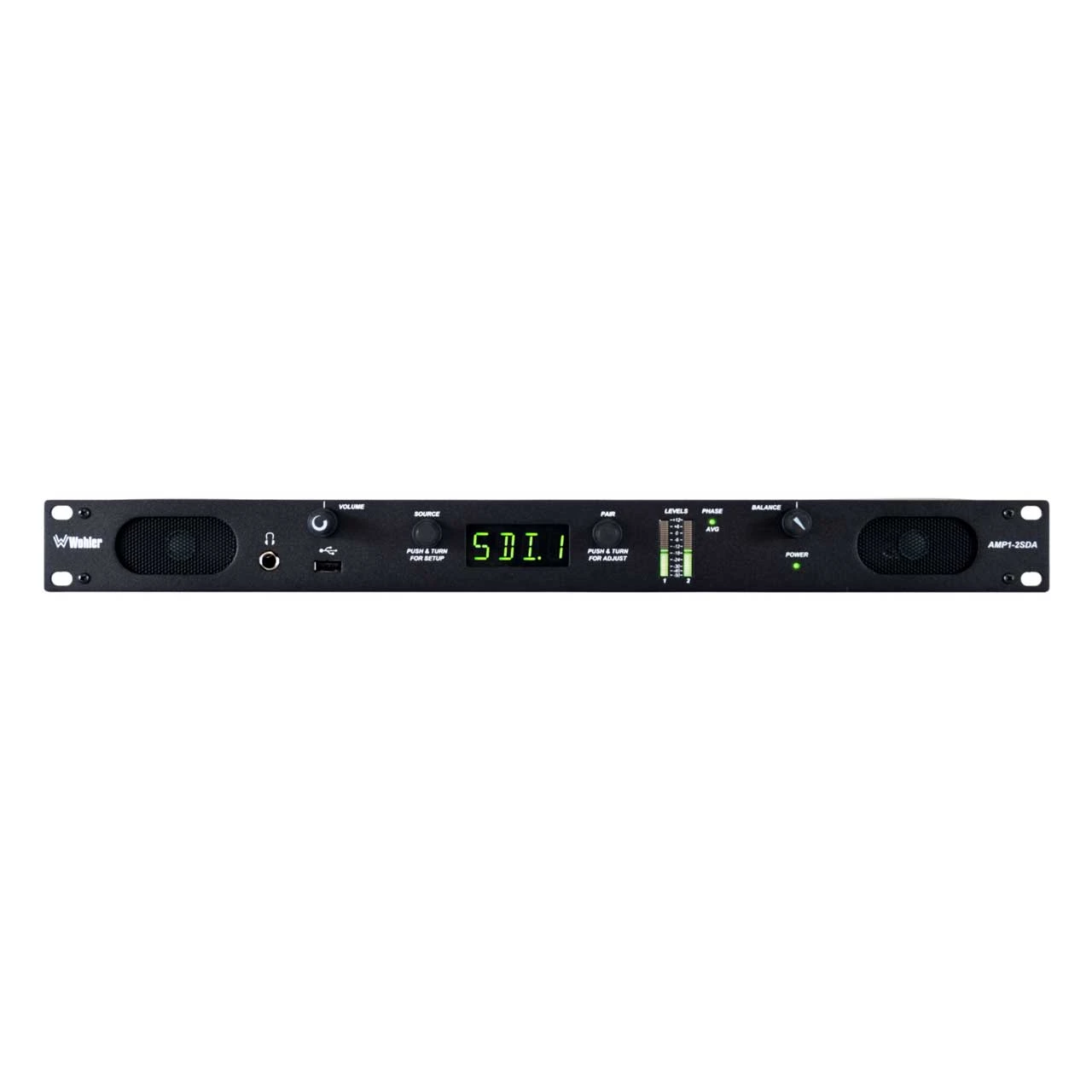

Designed with simplicity in mind, the AMP1-2SDA+ provides two rotary controls that allow the user to easily select a source with the first rotary control and move through pairs with the second rotary control. A large front panel screen clearly displays the selected source and pair and is highly visible to users, even in busy technical areas. Additional features include simple tone controls for adjusting audio output and an audio trim control for altering the analog output levels.

Ultra-compact, the AMP1-2SDA+ fits perfectly in a network facility or OB truck live event and is ideal for a range of applications where basic, but reliable stereo audio monitoring is required.

Features:
- Wohler quality sound
- Selectable 2 channel monitoring of 16-channel 3G/HD/SD-SDI, 2 channel AES, and 2 channel Analog (Balanced or Unbalanced)
- Optional inputs available for an additional 16 channels (8 pairs) of both Analog and AES
- Additional input of 8 pairs of AES audio on 1 x D-Sub
- Additional input of 8 pairs of Analog audio on 2 x D-Sub.
- Bright, easily visible front panel display
- Simple uncluttered front panel controls
- Adjustable Volume and Balance
- Stereo phase indicator
- Selectable trim and tone controls
- Monitor through built-in speakers, headphones and analog outputs
- Shallow chassis for easy installation in OB vehicles and consoles
Specifications:

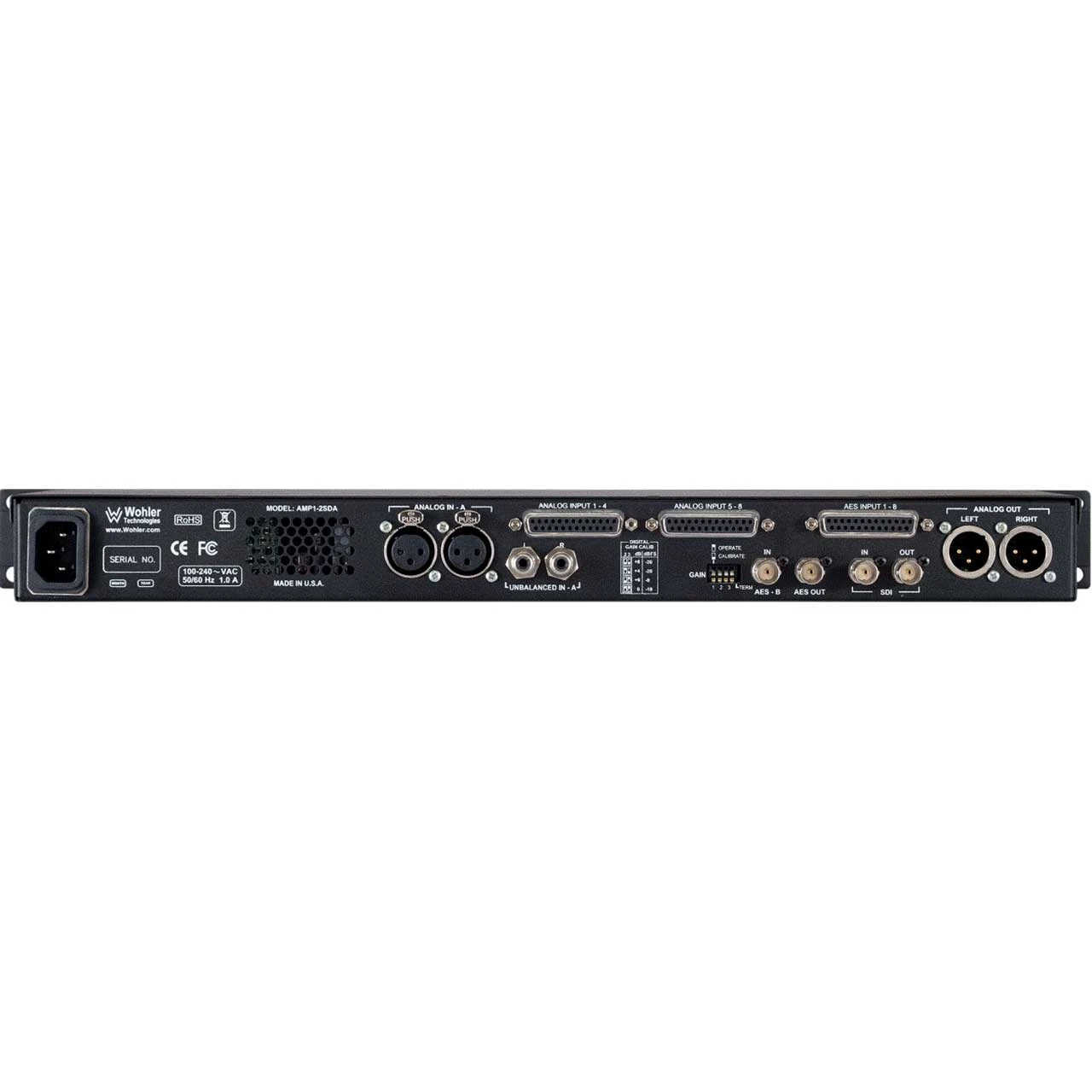

- Signal I/O
- 3G/HD/SD-SDI Input: 1 3G/HD/SD-SDI on BNC
- 3G/HD/SD-SDI Output: 1 reclocked on BNC
- AES3 Input: 1 AES Pair on BNC; 8 Pairs of AES on DB-25; 8 Pairs of Analog audio on 2 x DB-25
- AES3 Output: 1 Pair on BNC of selected audio channel pair
- Analog Input: 2 on RCA (1 pair), 2 on XLR F
- Analog Output: 1 Pair on 2 x XLR of selected audio channel pair
  Audio
- Frequency Response: 150 Hz to 16 kHz (+/- 5 dB)
- Hum and Noise: Better than -68 dB below full output
- Meter Dynamics: Simultaneous VU & PPM
- Meter Scale: Simultaneous VU & PPM
- Peak Acoustic Output @ 2 feet: 90 dB SPL at 2 feet
- Power Output: RMS Each Side: 5W Continuous/12W Peak
  Interfacing
- Level Meters: 2 x 26 Segments (Vertical)
- Audio Channels (max): 2
- Phase: Yes
- Front Panel Controls: Volume Encoder; Balance Encoder; Signal Select; Pair Select
- Headphone Jack: Yes
- USB Port: Yes
  Physical
- Rack Height: 1RU
- Dimension Width: 19.0″
- Dimension Height: 1.75″
- Speakers: Yes
- Net Weight: 5.0 lbs
- Shipping Weight: 7.0 lbs
- Power Consumption: 60 Watts
- Power Supply: External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
