Wohler EAMP1-S16-2MDA 1U Single 7in Touchscreen / Dual In 16ch 3G/HD-SD/SDI Audio Monitor W/ 2x Looped 1x Sel Source Out

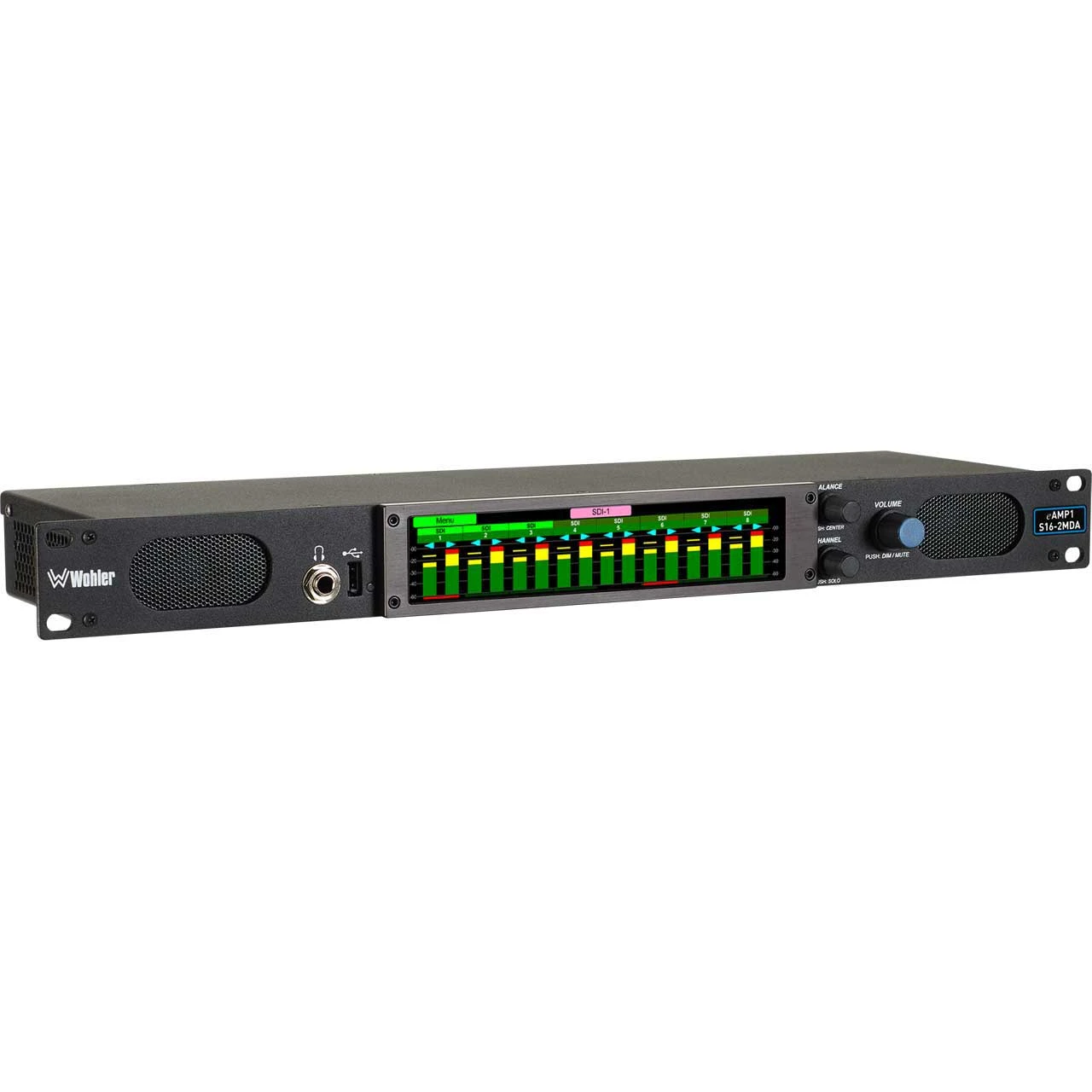

Wohler EAMP1-S16-2MDA 1U Single 7in Touchscreen / Dual In 16ch 3G/HD-SD/SDI Audio Monitor W/ 2x Looped 1x Sel Source Out - Image 2

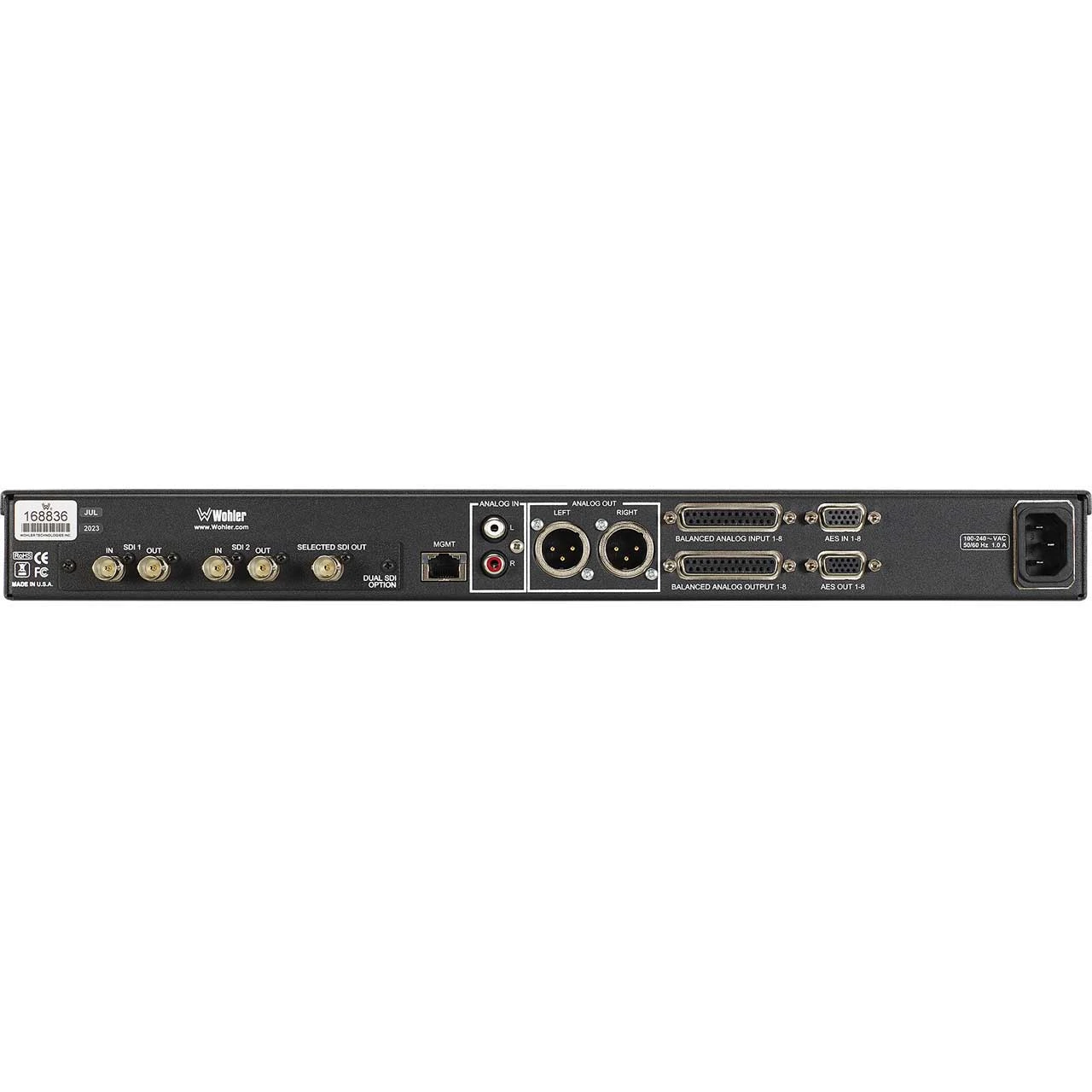

Wohler EAMP1-S16-2MDA 1U Single 7in Touchscreen / Dual In 16ch 3G/HD-SD/SDI Audio Monitor W/ 2x Looped 1x Sel Source Out - Image 3

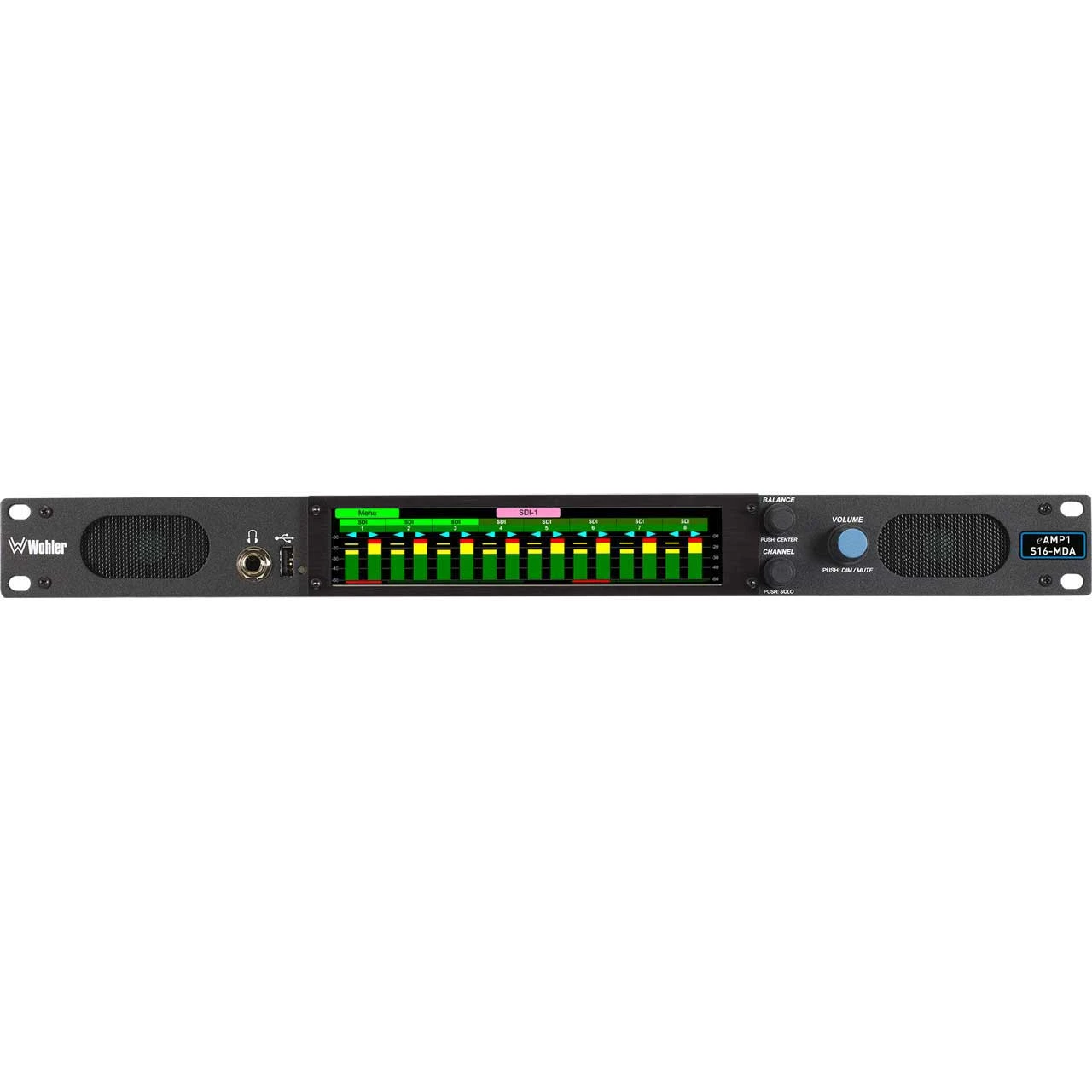

Wohler EAMP1-S16-2MDA 1U Single 7in Touchscreen / Dual In 16ch 3G/HD-SD/SDI Audio Monitor W/ 2x Looped 1x Sel Source Out - Image 4

Wohler EAMP1-S16-2MDA 1U Single 7in Touchscreen / Dual In 16ch 3G/HD-SD/SDI Audio Monitor W/ 2x Looped 1x Sel Source Out -Microphone Shop WOH EAMP1S162MDA 1

Wohler EAMP1-S16-2MDA 1U Single 7in Touchscreen / Dual In 16ch 3G/HD-SD/SDI Audio Monitor W/ 2x Looped 1x Sel Source Out

Original price was: $323.00.Current price is: $96.99.

SKU: BWFYA 44920107 Categories: Audio Monitoring, Rackmount Audio Monitors

Get the quality you deserve, for less.
Quality You Can Trust
Efficiency meets excellence in customer care.
Safe Payments, Happy Customers

Description
Reviews (0)

EAMP1S162MDA – Overview

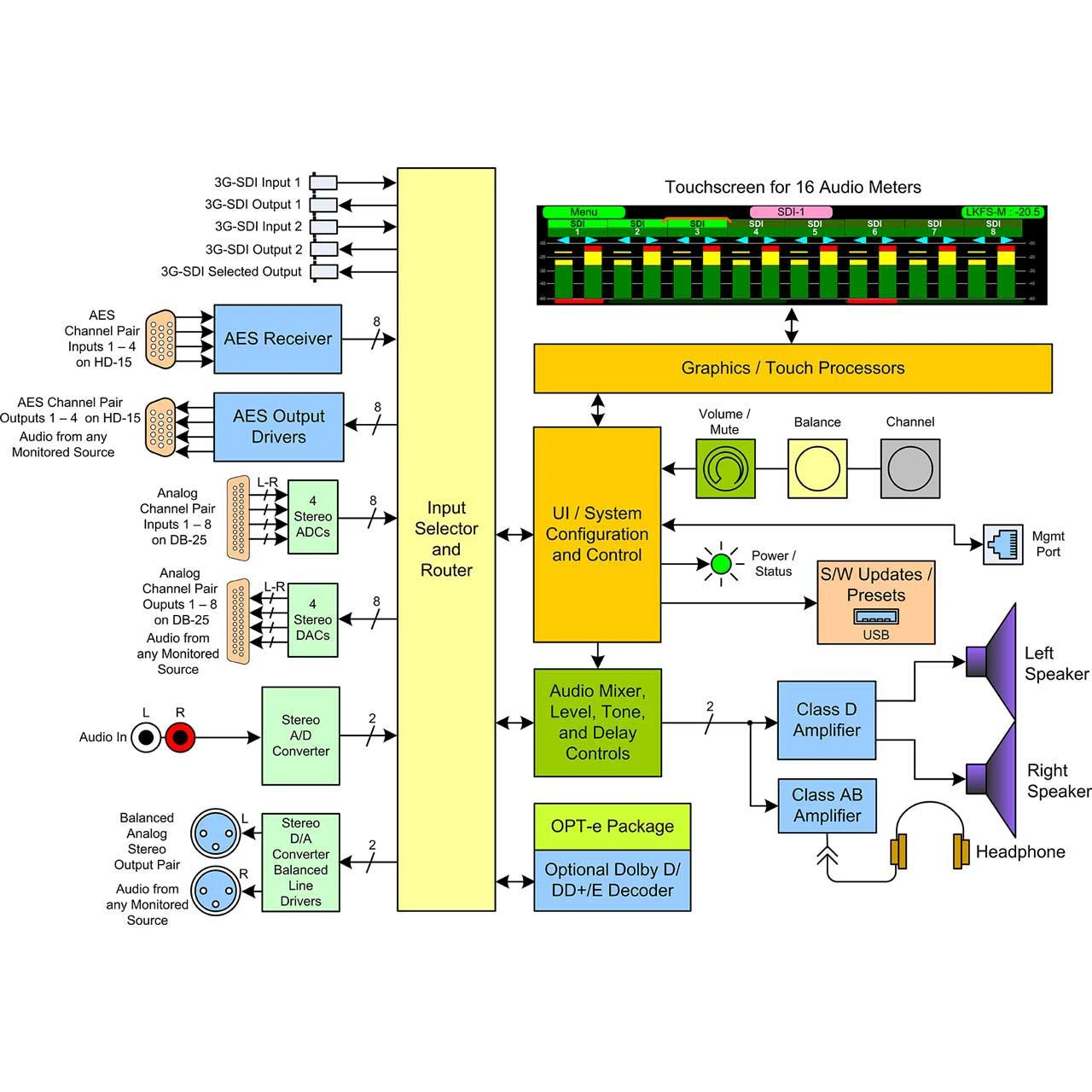

The eAMP1-S16-2MDA offers fast and intuitive confidence monitoring of 3G/HD/SD-SDI, AES3 and analog audio sources. Whether in the studio or on the road, this unit provides simultaneous selection and summing of the selected source. It features adjustable volume and balance controls, clear display of levels, and phase indications.

The e AMP1-S16-2MDA is designed to be much easier to operate than the retired S8’s and include a wide 7″ LCD touchscreen display providing fast access to input sources, meters and menus, all augmented by hardware controls. And while we are putting our best price forward with a basic monitoring package that includes dual 3G/HD/SD-SDI, AES and Analog inputs (no IP options), a software upgrade package that includes loudness, presets, web meters/monitoring/configuration and customized output routing is available to bring its functionality in line with the more recent iSeries offerings in our price list. Dolby D, DD+ and E decoding are also optional add-ons

Features:
- Low cost and energy efficient
- Simultaneous level metering of 16 de-embedded audio channels from the dual SDI inputs, AES or Analog sources
- Quick, intuitive push-button or touch selection of any channels or pairs to sum, mute or solo
- Monitor through built-in speakers, headphones or analog outputs with Optional muting for internal speakers
- Stereo phase indicators
- Adjustable Volume and Balance
- Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
- Automatic frame rate detection and selection
- Selectable line level or front panel volume control and outputs
- Shallow chassis depth for easy installation in OB vehicles and consoles
- OPT DOLBY adds decoding of *Dolby D, DD+ and E (requires OPT-e package)
- APIs provide easy integration with 3^rd party systems (requires OPT- e package)
Specifications:
- Dimensions (W x H x D): 1RU in standard 19″ rack: 19″ x 1.75″ x 5.5″ (483 mm x 45 mm x 140 mm). Shipping dims: 23″x 6″x 12″
- Shipping Weight / Net Weight: 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
- Power Consumption / Supply: 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
- Display Type / Resolution: 7″ (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
- Viewing Angle: 160° (H) x 160° (V)
- Audio Channels: 16 Max
- Hum and Noise: Better than -68 dB below full output
- Peak Acoustic Output: 90 dB SPL @ 2 feet
- Speaker Power Output: 5W RMS per side, 12W Peak
- Upgrades: Via USB or GUI web interface
- APIs: Provide easy integration with 3^rd party control systems
