IAM1-8 – Overview
An Audio Monitor that provides Value for Money!

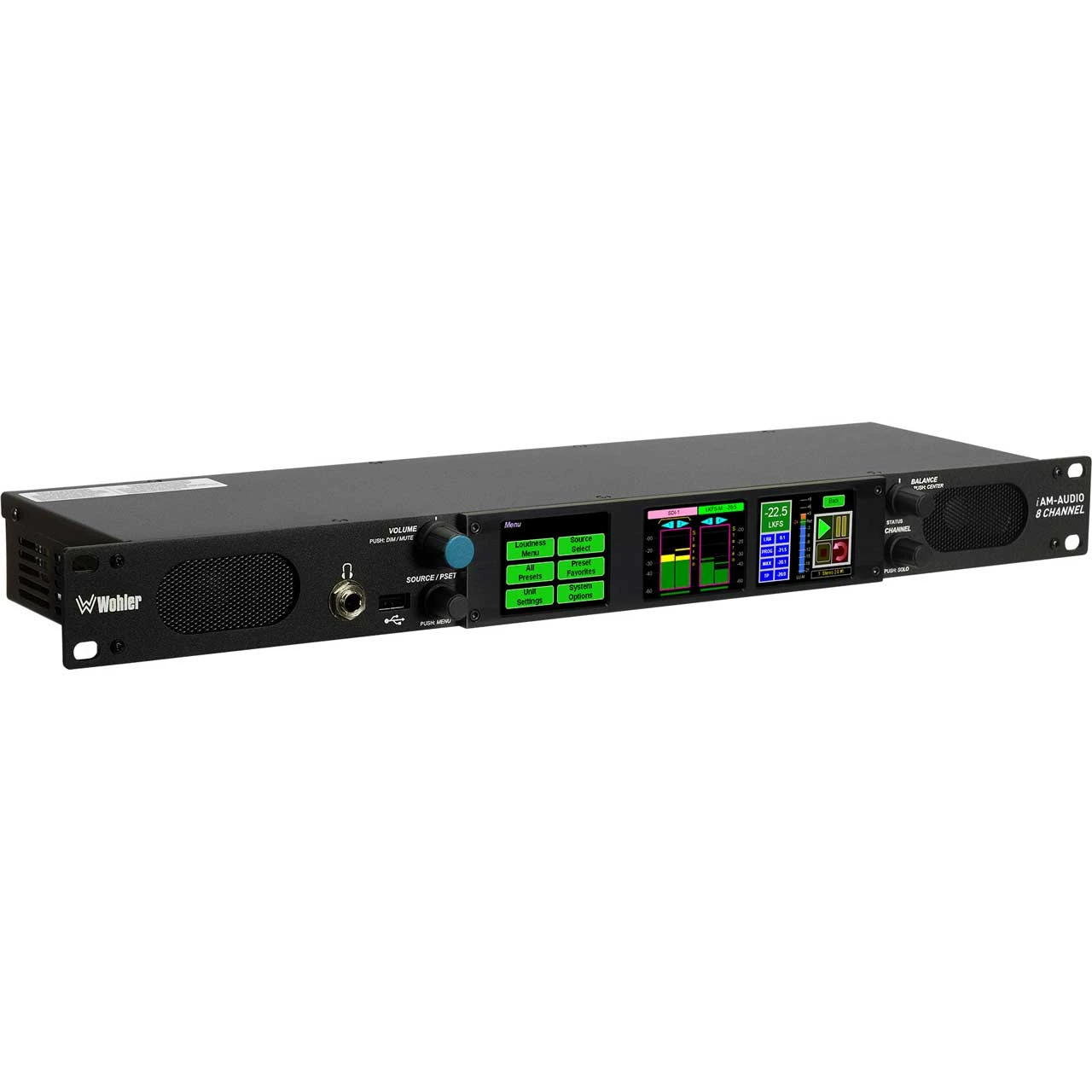

The Wohler iAM1-8 is an easy to use 8 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. It is intended for those end users who only need 8 channels of monitoring and want a price break from our fuller-featured units. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.
Flexible. Adaptable. Future Proof.
iAM1-8 is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.
All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.
-
Features:
- Audio monitoring (up to 8 channels) from multiple sources
- Up to 64 presets
- Optional Output Routing enables the flexibility to route input signals to various outputs

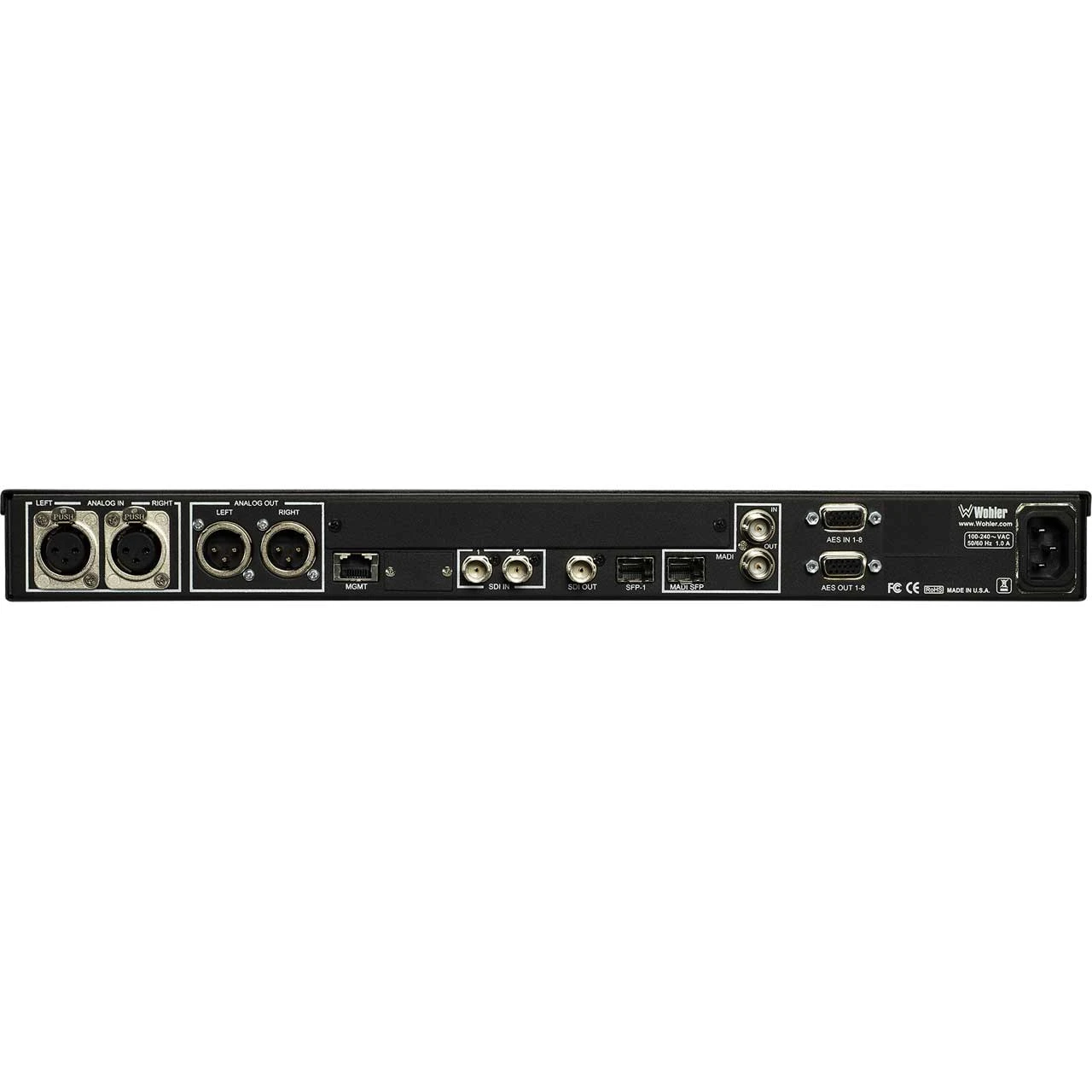

- 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
- Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), & MADI via BNC (looped out)
- Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
- Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
- Software upgrades via USB or network.
- APIs included for remote control
-
Specifications:
- Speaker Power Output: RMS Each Side: 5W Continuous/12W Peak
- Peak Acoustic Output @ 2 feet: 90 dB SPL @ 2ft
- AES Input Sampling Rate: 48 kHZ
- Analog Input Impedance: 40k Ohms balanced
- Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
- Hum and Noise: Better than -68 dB below full output
- Meter Dynamics: Simultaneous VU & PPM
- Display Type: Capacitive LCD Touchscreen x 3
- Number of screens: 3
- Diagonal Display Size: 2.4″ (60 mm)
- Display Resolution (HxV): 320Hx240V
- Viewing Angle: 160 (H) x 160 (V)
- Rack Height: 1RU
- Power Consumption: 65 Watts typical
- Power Supply: Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
- Dimension Width: 19.0″ (483mm)
- Dimension Height: 1.75″ (45mm)
- Dimension Depth: 5.5″ (140mm)
- Net Weight: 7.5 lbs. (3.4 kg)
- Shipping Weight: 7.6 lbs (3.4 kg)
- Shipping Dimensions: 23 x 12 x 6 in (LxWxH)
